Floor / wall outlet

MF-FBWA 63

Article number: 0152.0057
Manufacturer: MAICO
Floor and wall outlet for MAICOFlex ventilation duct system for connecting 2 MF-F63 flexible ducts
Application examples: Single-family house, Multiple family unit, Commercial premises, Office, Waiting room

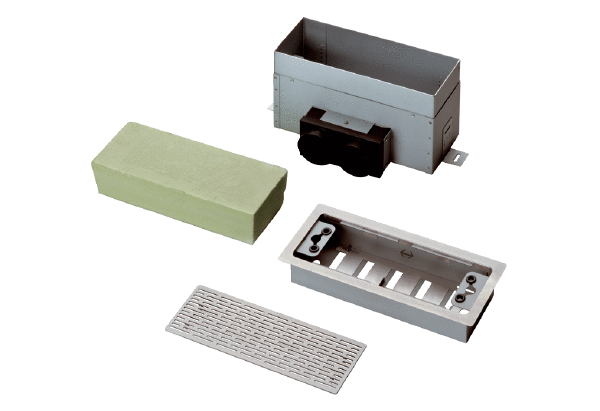

MF-FBWA 63 IM0011729.PNG Floor and wall outlet for MAICOFlex ventilation duct system for connecting 2 MF-F63 flexible ducts

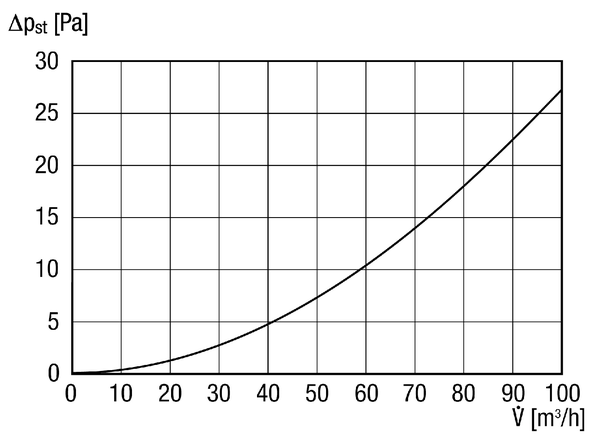

Characteristic curve

MF-FBWA 63 - Characteristic curve

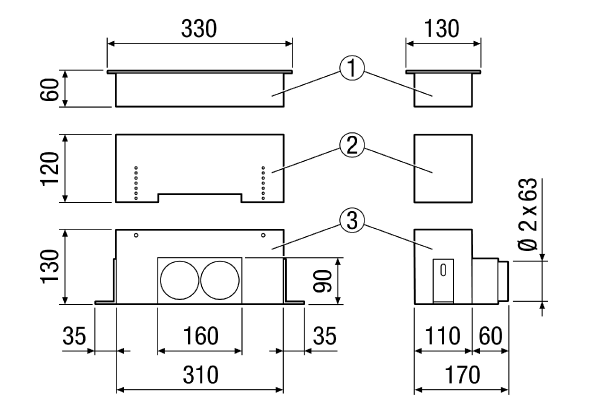

Dimensioned drawing

MF-FBWA 63 - Dimensioned drawing [mm]

  1. Grille element with frame
  2. Telescopic element
  3. MF-FBWA 63 basic element with MAICOFlex double-duct adapter for 2 x 63 mm

Technical data

MF-FBWA 63 - Technical data

Article MF-FBWA 63
Air direction Ventilation
Volumetric flow 30 m³/h / recommended
Grille material Stainless steel
Housing material Sheet steel, Sendzimir galvanised
Weight 3,3 kg
Nominal size 63 mm
Width 330 mm
Height 290 mm
Depth 130 mm
Sound power level 26 dB(A) / at 50 m³/h
Packing unit 1 piece
Range K
EAN 4012799520573
Article number 0152.0057

Accessories of

MF-FBWA 63 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Distributor MF-V63 0059.0970 on request
  • On the notes
Air distributor box made of sheet metal, 8-way MF-BV63-125-8 0018.0525 on request
  • On the notes
Air distributor box made of sheet metal, 14-way MF-BV63-160-14 0018.0526 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
WS ventilation unit WS - - -
WR ventilation unit WR - - -
Aeronom room air system WRG EC - - -
Centralised exhaust air unit ZEG2 EC - - -
Centralised exhaust air unit ZEG 2000 P - - -
Centralised ventilation unit WS 250 - - -
Aeronom room air system WS 600 - - -
Centralised exhaust air unit ZEG EC - - -

Product description

Productdescription

MF-FBWA 63

short description

Floor and wall outlet for MAICOFlex ventilation duct system for connecting 2 MF-F63 flexible ducts

Product description

  • Floor and wall outlet for MAICOFlex flexible ventilation duct system
  • For connecting 2 MF-F flexible steel ducts.
  • Stainless steel air grille with slotted look.
  • Simple regulation using inbuilt air volume slide with lock, including telescopic element for extension when fitted in concrete ceiling.
  • The mounting height between the bottom of the basic element and the top of the stainless steel grille (total height) can be variably set between 13 cm and 29 cm.
  • Accessories needed: Two MF-FDR gaskets.
