Flat oval duct sound absorber

RSOF 16/50

Article number: 0092.0532
Manufacturer: MAICO
Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length:... more information
RSOF 16/50 IM0014778.PNG Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 500 mm, height: 210 mm, DN 160

Characteristic curve

Dimensioned drawing

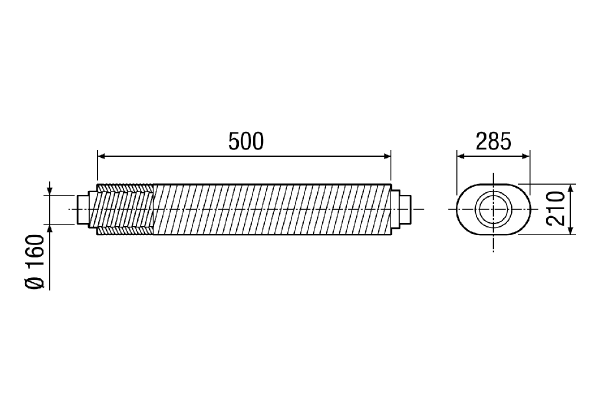

RSOF 16/50 - Dimensioned drawing [mm]

Technical data

RSOF 16/50 - Technical data

Article RSOF 16/50
Model 50 mm sound absorbing cover
Material Aluminium
Weight 1,2 kg
Nominal size 160 mm
Length 500 mm
Width 285 mm
Height 210 mm
Depth 500 mm
Ambient temperature 200 °C
Insertion loss at 63 kHz 1 dB
Insertion loss at 125 kHz 6 dB
Insertion loss at 250 kHz 7 dB
Insertion loss at 500 kHz 13 dB
Insertion loss at 1 kHz 22 dB
Insertion loss at 2 kHz 22 dB
Insertion loss at 4 kHz 13 dB
Insertion loss at 8 kHz 13 dB
Packing unit 1 piece
Range K
GTIN (EAN) 4012799925323
Article number 0092.0532

Accessories of

RSOF 16/50 - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised ventilation unit WS 160 Flat - - -
WS ventilation unit WS 300 Flat - - -

Product description

Productdescription

RSOF 16/50

short description

Flat flexible telephony sound absorber in oval version with 50 mm sound absorbing cover (flat side), length: 500 mm, height: 210 mm, DN 160

Product description

  • Flat flexible telephony sound absorber in oval version.
  • Suitable for reduced installation heights as its flexibility makes it possible to adapt for situations where space is an issue and where the duct feed is difficult.
  • The sound absorbers are made of two-layer, flexible aluminium ducts.
  • The inner duct has fine-pored perforations.
  • There is an insulation layer made of 50 mm thick synthetic-resin-hardened mineral fibre matting between the inner and outer duct.
  • The connection sockets have nipple size and fit in ducts.
  • Non-combustible in accordance with EN 13501 A1.
