Plug connectors for ducts

SVR 160

Article number: 0055.0185
Manufacturer: MAICO
Plug connector incl. lip seal, DN 160, for connecting folded spiral-seams ducts to the WR 310/WR 410, WS 320... more information

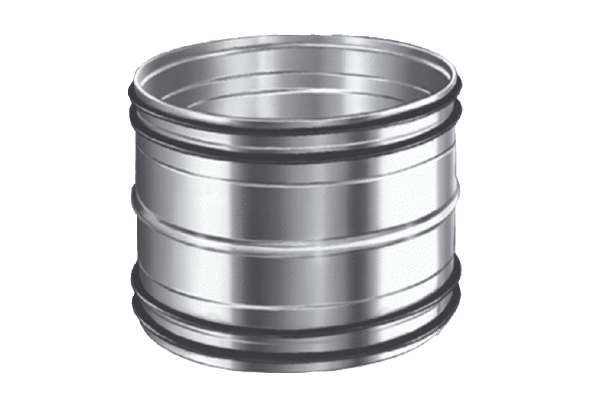

SVR 160 IM0017119.PNG Plug connector incl. lip seal, DN 160, for connecting folded spiral-seams ducts to the WR 310/WR 410, WS 320 and WS 470 central ventilation units

Characteristic curve

Dimensioned drawing

Technical data

SVR 160 - Technical data

Article SVR 160
Type of installation Recessed-mounted
Material Sheet steel
Weight 0,208 kg
Nominal size 160 mm
Width 160 mm
Height 160 mm
Depth 160 mm
Ambient temperature 60 °C
Packing unit 1 piece
Range K
GTIN (EAN) 4012799551850
Article number 0055.0185

Accessories of

SVR 160 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
WS ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes

Product description

Productdescription

SVR 160

short description

Plug connector incl. lip seal, DN 160, for connecting folded spiral-seams ducts to the WR 310/WR 410, WS 320 and WS 470 central ventilation units

Product description

  • Plug connector for folded spiral-seams ducts, including lip seals.
  • E.g. for connecting the WR 310 / WR 410, WS 320 and WS 470 centralised ventilation units to folded spiral-seams ducts..
