Humidity and temperature sensor

FFT 30 K

Article number: 0157.0121
Manufacturer: MAICO
Humidity and temperature sensor, standard output signal 0...10V

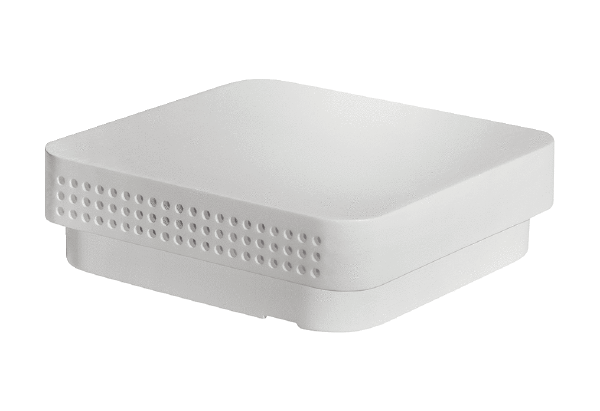

FFT 30 K IM0014705.PNG Humidity and temperature sensor, standard output signal 0...10V

Characteristic curve

Dimensioned drawing

Technical data

FFT 30 K - Technical data

Article FFT 30 K
Rated voltage 12...34 V AC/DC
Load 10 kOhm - 100 kOhm
Degree of protection IP 30
Electrical connection Screw terminals
Connection terminal diameter 0,75 mm
Relative humidity measurement range 0 % - 98 %
Relative humidity output 0 V - 10 V
Housing material ABS plastic
Colour Pure white, similar to RAL 9010
Weight 0,053 kg
Width 87,5 mm
Height 87,5 mm
Depth 30 mm
Temperature measurement range 0 °C up to 50 °C
Temperature output 0 V up to 10 V
Packing unit 1 piece
Range K
GTIN (EAN) 4012799571216
Article number 0157.0121

Product description

Productdescription

FFT 30 K

short description

Humidity and temperature sensor, standard output signal 0...10V

Product description

  • The humidity and temperature sensor serves to measure the relative humidity and temperature in closed rooms and is equipped with the standard 1...10V output signal.
  • The sensor is fixed to the wall with screws (not supplied).
  • Accessories: Safety isolating transformer (230 V / 24 V) to be provided by customer.

Table of contents

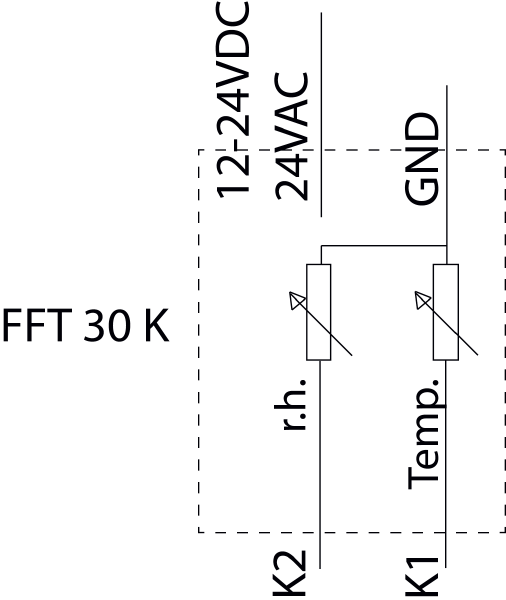

Wiring diagram

FFT 30 K - Wiring diagram

Signal (K1/K2) 0-10 V
