Disk valve, metal

TFA 12

Article number: 0151.0370
Manufacturer: MAICO
Disk valve for exhaust air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, EBR-D 12... more information
TFA 12 IM0011703.PNG Disk valve for exhaust air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, EBR-D 12 mounting frame required

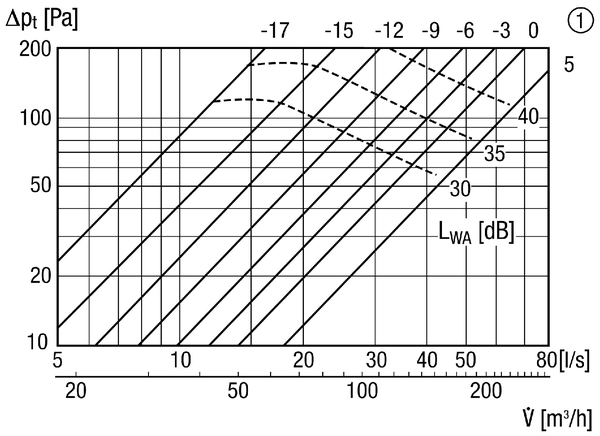

Characteristic curve

TFA 12 - Characteristic curve

  1. Gap opening in mm

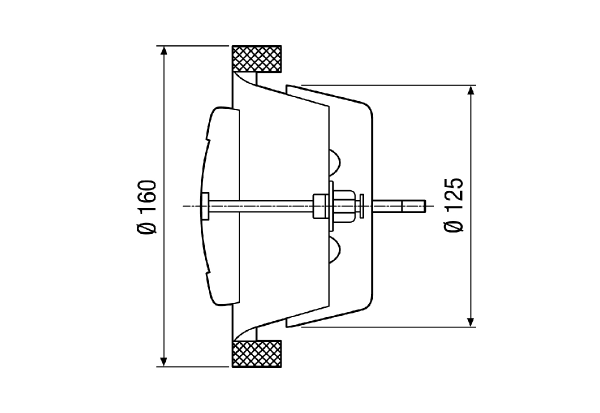

Dimensioned drawing

TFA 12 - Dimensioned drawing [mm]

Technical data

TFA 12 - Technical data

Article TFA 12
Air direction Air extraction
Material Sheet steel, galvanised
Colour Pure white, similar to RAL 9010, gloss 70
Weight 0,3 kg
Suitable for nominal size 125 mm
Width 160 mm
Height 188 mm
Depth 160 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799513704
Article number 0151.0370

Accessories / Accessories of

TFA 12 - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Mounting frame for TFA/TFZ EBR-D 12 0092.0494 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Grease filter element for exhaust air FFE 10 0092.0506 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised exhaust air unit ZEG2 EC - - -
Aeronom room air system WS 170 - - -
Centralised ventilation unit WS 160 Flat - - -
Centralised ventilation unit WS 170 / WS 170 ET - - -
WS ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised exhaust air unit ZEG EC - - -
Exhaust air system ZEG 2000 - - -
Centralised exhaust air unit ZEG 2000 P - - -
Centrifugal flat box EFR centrifugal flat box - - -
Sound-insulated ventilation box ESR -2 EC sound-insulated ventilation box - - -
Sound-insulated ventilation box ESR EC sound-insulated ventilation box - - -
Centrifugal flat box Radial-Flachbox EFR - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box, other art. no. - - -
Sound-insulated ventilation box ESR-2 S, DSR-2 S sound-insulated ventilation box - - -
ESR EC sound-insulated ventilation box - - - -
Centralised ventilation unit WS 150 R Discontinued product 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L Discontinued product 0095.0058 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Aeronom room air system WS 600 No longer available for delivery 0095.0056 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080 on request
  • On the notes
Aeronom room air system WRG 300 EC No longer available for delivery 0082.0060 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes
Aeronom room air system WRG 400 EC No longer available for delivery 0082.0061 on request
  • On the notes

Product description

Productdescription

TFA 12

short description

Disk valve for exhaust air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, EBR-D 12 mounting frame required

Product description

  • Disk valve for air extraction.
  • Attractive, flat model.
  • Linear air flow control via rotatable valve disk.
  • With bayonet closure for mounting frame.
  • Accessories needed: Mounting frame with EBR-D / EBR sealing.
  • Recommended accessories: FFE grease filter element for use in rooms where the exhaust air contains grease (e.g. kitchens etc.).
