Disk valve, metal

TFZ 10

Article number: 0151.0364
Manufacturer: MAICO
Disk valve for supply air, sheet steel, white, DN 100, for domestic ventilation max. 30 m³/h, EBR-D 10... more information

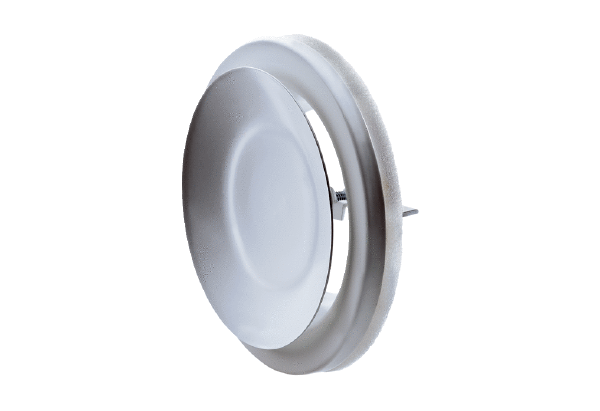

TFZ 10 IM0011709.PNG Disk valve for supply air, sheet steel, white, DN 100, for domestic ventilation max. 30 m³/h, EBR-D 10 mounting frame required

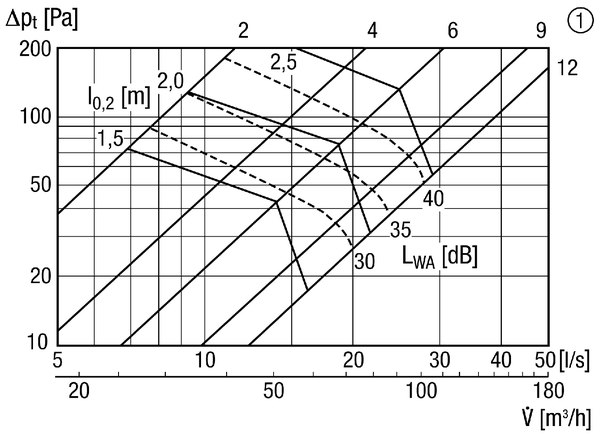

Characteristic curve

TFZ 10 - Characteristic curve

  1. Gap opening in mm

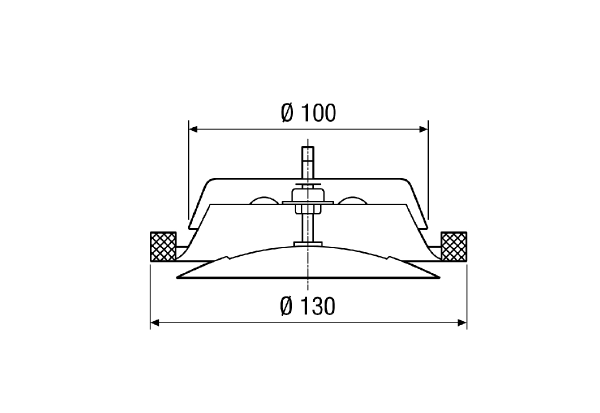

Dimensioned drawing

TFZ 10 - Dimensioned drawing [mm]

Technical data

TFZ 10 - Technical data

Article TFZ 10
Air direction Ventilation
Material Sheet steel, galvanised
Colour Pure white, similar to RAL 9010, gloss 70
Weight 0,2 kg
Suitable for nominal size 100 mm
Width 130 mm
Height 130 mm
Depth 130 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799513643
Article number 0151.0364
