Disk valve, synthetic material

TK 12

Article number: 0151.0198
Manufacturer: MAICO
Disk valve for supply and exhaust air, plastic, with mounting ring, DN 125 for domestic ventilation max. 60... more information
TK 12 IM0009750.PNG Disk valve for supply and exhaust air, plastic, with mounting ring, DN 125 for domestic ventilation max. 60 m³/h

Characteristic curve

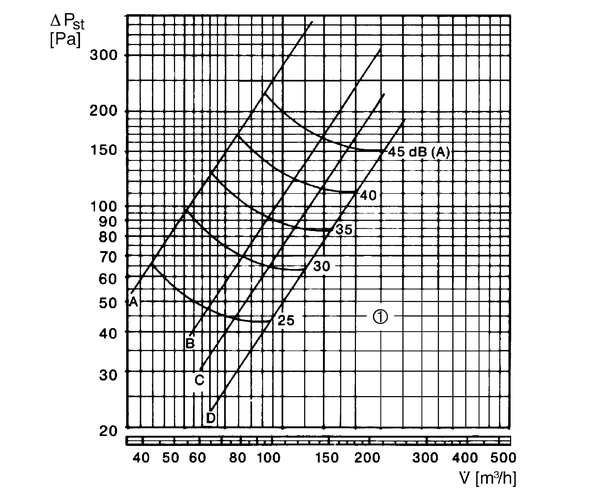

TK 12 - Characteristic curve Pressure difference and acoustic data: TK 12

  1. 20 revolutions, 1 mm stroke height per revolution

A: 1/4 open, B: 1/2 open, C: 3/4 open, D: open all the way

Dimensioned drawing

TK 12 - Dimensioned drawing [mm]

A: 124 mm
B: 100 mm
C: 170 mm
E: 50 mm
F: 145 mm

Technical data

TK 12 - Technical data

Article TK 12
Air direction Ventilation and air extraction
Material Synthetic material, antistatic
Colour Pure white, similar to RAL 9010
Weight 0,1 kg
Suitable for nominal size 125 mm
Width 170 mm
Height 170 mm
Depth 70 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799511984
Article number 0151.0198

Product description

Productdescription

TK 12

short description

Disk valve for supply and exhaust air, plastic, with mounting ring, DN 125 for domestic ventilation max. 60 m³/h

Product description

  • Disk valves for ventilation and air extraction.
  • Sealed with a foam ring.
  • Linear air flow control via rotatable valve disk.
  • Easy installation with mounting ring and clamping springs.
  • Recommended accessories: FFE grease filter element for use in rooms where the exhaust air contains grease (e.g. kitchens etc.).
