Disk valve, stainless steel

TM-V2A 10

Article number: 0151.0374
Manufacturer: MAICO
Disk valve for supply and exhaust air, stainless steel, with mounting ring, DN 100 for domestic ventilation... more information
TM-V2A 10 IM0011719.PNG Disk valve for supply and exhaust air, stainless steel, with mounting ring, DN 100 for domestic ventilation max. 30 m³/h

Characteristic curve

Dimensioned drawing

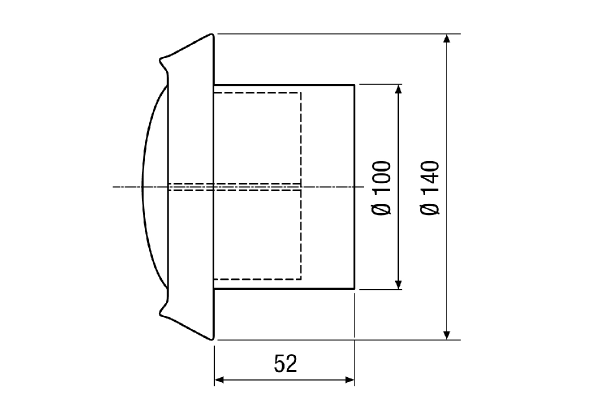

TM-V2A 10 - Dimensioned drawing [mm]

Technical data

TM-V2A 10 - Technical data

Article TM-V2A 10
Air direction Ventilation and air extraction
Volumetric flow 30 m³/h / 40 m³/h / 60 m³/h / 80 m³/h / at 15 Pa / 25 Pa / 53 Pa / 100 Pa
Material Stainless steel
Colour Stainless steel, brushed
Weight 0,2 kg
Suitable for nominal size 100 mm
Open cross section 32 cm²
Width 140 mm
Height 140 mm
Depth 52 mm
Sound power level 35 dB(A) / at max. 80 m³/h
Packing unit 1 piece
Range C
GTIN (EAN) 4012799513742
Article number 0151.0374



LWA

at max. 80 m³/h

Accessories / Accessories of

TM-V2A 10 - Accessories / Accessories of

General accessories

Product type Name Art. No. Price*(EUR) Action
Grease filter element for exhaust air FFE 10 0092.0506 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised exhaust air unit ZEG2 EC - - -
Aeronom room air system WS 170 - - -
Centralised ventilation unit WS 160 Flat - - -
Centralised ventilation unit WS 170 / WS 170 ET - - -
WS ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised exhaust air unit ZEG EC - - -
Exhaust air system ZEG 2000 - - -
Centralised exhaust air unit ZEG 2000 P - - -
Centrifugal flat box EFR centrifugal flat box - - -
Sound-insulated ventilation box ESR -2 EC sound-insulated ventilation box - - -
Sound-insulated ventilation box ESR EC sound-insulated ventilation box - - -
Centrifugal flat box Radial-Flachbox EFR - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box, other art. no. - - -
Sound-insulated ventilation box ESR-2 S, DSR-2 S sound-insulated ventilation box - - -
ESR EC sound-insulated ventilation box - - - -
Centralised ventilation unit WS 150 R Discontinued product 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L Discontinued product 0095.0058 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Aeronom room air system WS 600 No longer available for delivery 0095.0056 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080 on request
  • On the notes
Aeronom room air system WRG 300 EC No longer available for delivery 0082.0060 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes
Aeronom room air system WRG 400 EC No longer available for delivery 0082.0061 on request
  • On the notes

Product description

Productdescription

TM-V2A 10

short description

Disk valve for supply and exhaust air, stainless steel, with mounting ring, DN 100 for domestic ventilation max. 30 m³/h

Product description

  • Stainless steel disk valves for ventilation and air extraction with connection socket.
  • With loose installation ring and spring clamp for simple installation.
  • Linear air flow control via rotatable valve disk.
  • Recommended accessories: FFE grease filter element for use in rooms where the exhaust air contains grease (e.g. kitchens etc.).

Table of contents

Wiring diagram

TM-V2A 10 - Wiring diagram
