Door contact switch

TS 8

No longer available for delivery
Article number: 0157.0120
Manufacturer: MAICO
Door contact switch with insulated housing

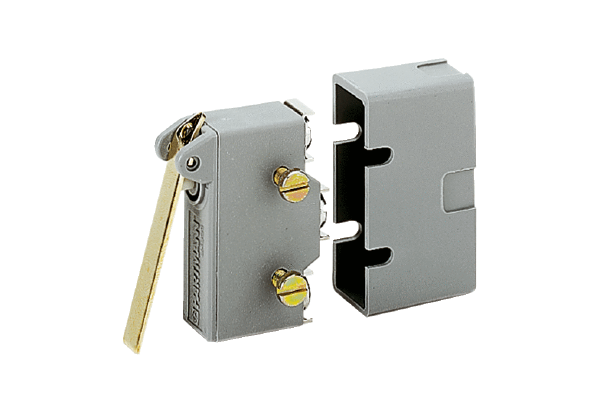

TS 8 IM0009768.PNG Door contact switch with insulated housing

Characteristic curve

Dimensioned drawing

Technical data

TS 8 - Technical data

Article TS 8
Rated voltage 230 V
Maximum load 8 A
Degree of protection IP 50
Weight 0,023 kg
Width 45 mm
Height 45 mm
Depth 15 mm
Packing unit 1 piece
Range A
GTIN (EAN) 4012799571209
Article number 0157.0120

Accessories of

TS 8 - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Small room fan ECA 100 No longer available for delivery 0084.0000 on request
  • On the notes
Small room fan ECA 100 VZ No longer available for delivery 0084.0001 on request
  • On the notes
Small room fan ECA 100 VZC No longer available for delivery 0084.0040 on request
  • On the notes
Small room fan ECA 100 I No longer available for delivery 0084.0038 on request
  • On the notes
Small room fan ECA 100 24 V No longer available for delivery 0084.0018 on request
  • On the notes
Small room fan ECA 100 K No longer available for delivery 0084.0003 on request
  • On the notes
Small room fan ECA 100 KVZ No longer available for delivery 0084.0004 on request
  • On the notes
Small room fan ECA 100 KVZC No longer available for delivery 0084.0041 on request
  • On the notes
Small room fan ECA 100 KI No longer available for delivery 0084.0039 on request
  • On the notes
Small room fan ECA 150 No longer available for delivery 0084.0012 on request
  • On the notes
Small room fan ECA 150/4 No longer available for delivery 0084.0036 on request
  • On the notes
Small room fan ECA 150 VZ No longer available for delivery 0084.0013 on request
  • On the notes
Small room fan ECA 150 K No longer available for delivery 0084.0015 on request
  • On the notes
Small room fan ECA 150/4K No longer available for delivery 0084.0037 on request
  • On the notes
Small room fan ECA 150 KVZ No longer available for delivery 0084.0016 on request
  • On the notes

Product description

Productdescription

TS 8

short description

Door contact switch with insulated housing

Product description

  • Door contact switch, which automatically switches fans on or off if the door is closed.
  • Assembly on door frame and the door.

Installation instructions

  • Provide the required cavity for fitting on the door and door frame.
  • Operate the door contact switch using a low voltage (24 V) in humid areas.
