Blower nozzle

WD 10 D

Article number: 0151.0291
Manufacturer: MAICO
Supply air blower nozzle, white powder-coated steel sheet, ceiling installation, DN 100, for domestic... more information
WD 10 D IM0009850.PNG Supply air blower nozzle, white powder-coated steel sheet, ceiling installation, DN 100, for domestic ventilation max. 45 m³/h

Characteristic curve

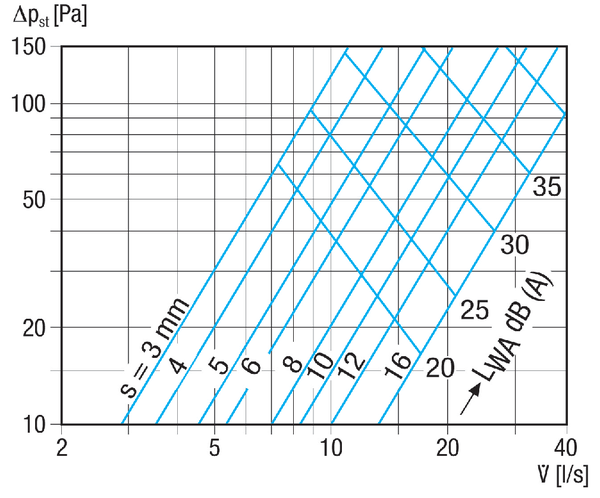

WD 10 D - Characteristic curve Pressure losses and acoustic data

s = gap width

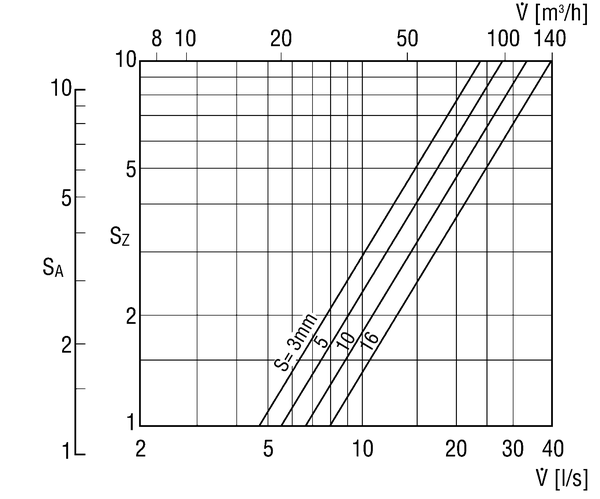

WD 10 D - Characteristic curve Blow out distance in countercurrent with air volumes

sec.A - Blow out distance in m

sec.Z - Zone length in m

s = gap width

Dimensioned drawing

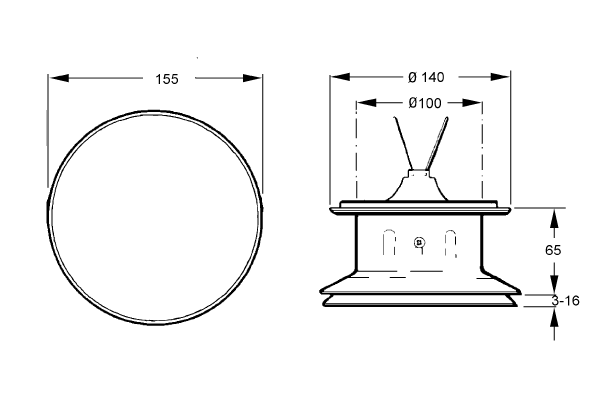

WD 10 D - Dimensioned drawing [mm]

Technical data

WD 10 D - Technical data

Article WD 10 D
Air direction Ventilation
Max. volumetric flow 70 m³/h
Range of projection 5 m
Installation Inside
Installation site Ceiling
Material Sheet steel, powder coated
Colour Traffic white, similar to RAL 9016
Weight 0,5 kg
Suitable for nominal size 100 mm
Width 155 mm
Height 155 mm
Depth 81 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799512912
Article number 0151.0291

Accessories of

WD 10 D - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
WS ventilation unit WS - - -
WR ventilation unit WR - - -
Aeronom room air system WRG EC - - -
Aeronom room air system WS 600 - - -
Centralised ventilation unit WS 250 - - -

Product description

Productdescription

WD 10 D

short description

Supply air blower nozzle, white powder-coated steel sheet, ceiling installation, DN 100, for domestic ventilation max. 45 m³/h

Product description

  • Blower nozzles for ventilation.
  • For ceiling installation.
  • With horizontal air outlet.
  • Linear air flow control by means of variable gaps.
