Wall sleeve

WH 120

Article number: 0059.1031
Manufacturer: MAICO
Extendable synthetic material wall sleeves, for fans with the nominal size 120
WH 120 IM0009931.PNG Extendable synthetic material wall sleeves, for fans with the nominal size 120

Characteristic curve

Dimensioned drawing

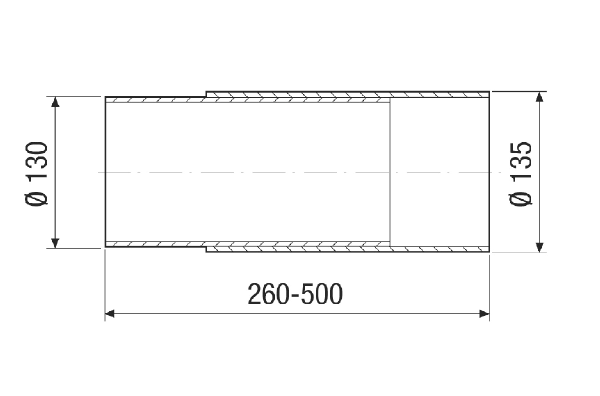

WH 120 - Dimensioned drawing [mm]

A: 130 mm
B: 135 mm

Technical data

WH 120 - Technical data

Article WH 120
Installation site Wall / Ceiling
Material Synthetic material
Weight 0,7 kg
Suitable for nominal size 125 mm
Width 135 mm
Height 135 mm
Depth 500 mm
Needed core hole min. 136 mm
Packing unit 1 piece
Range A
GTIN (EAN) 4012799990024
Article number 0059.1031

Accessories of

WH 120 - Accessories of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Small room fan ECA 120 small room fans - - -

Product description

Productdescription

WH 120

short description

Extendable synthetic material wall sleeves, for fans with the nominal size 120

Product description

  • Wall sleeve for wall and ceiling installations.
  • Variable length.
