Wall sleeve

WH 150

Article number: 0059.1050
Manufacturer: MAICO
Extendable synthetic material wall sleeves, for fans with the nominal size 150

Product data sheet

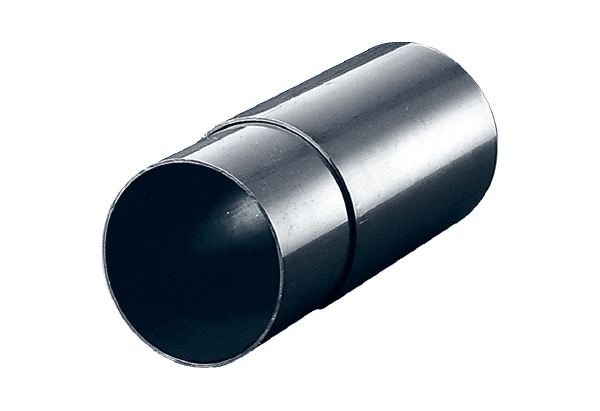

WH 150 IM0009931.PNG Extendable synthetic material wall sleeves, for fans with the nominal size 150

Characteristic curve

Dimensioned drawing

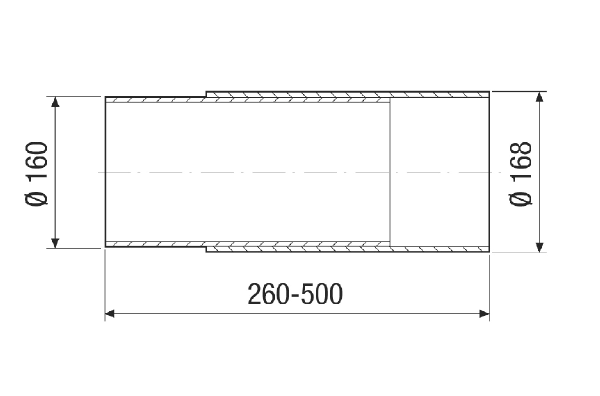

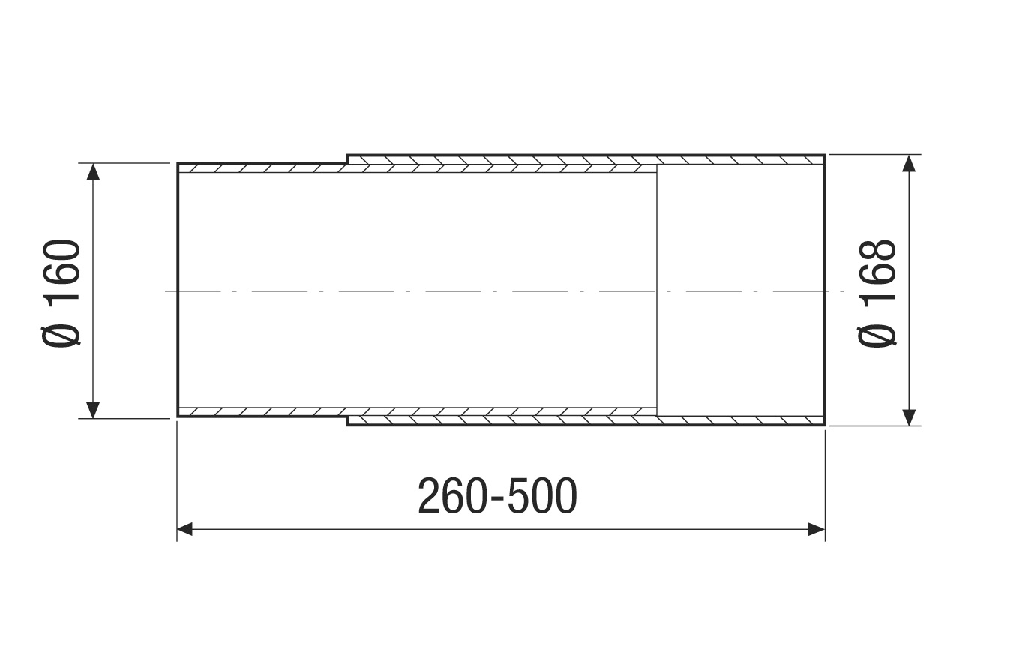

WH 150 - Dimensioned drawing [mm]

Technical data

WH 150 - Technical data

Article WH 150
Installation site Wall / Ceiling
Material Synthetic material
Weight 1,35 kg
Weight including packaging 1,4 kg
Suitable for nominal size 150 mm
Width 168 mm
Height 168 mm
Depth 500 mm
Width with packaging 168 mm
Height with packaging 168 mm
Depth with packaging 500 mm
Needed core hole min. 169 mm
Packing unit 1 piece
Range A
GTIN (EAN) 4012799990031
Article number 0059.1050

Product description

Productdescription

WH 150

short description

Extendable synthetic material wall sleeves, for fans with the nominal size 150

Product description

  • Wall sleeve for wall and ceiling installations.
  • Variable length.
