Centralised ventilation unit

WRG 180 EC

No longer available for delivery
Article number: 0082.0059
Manufacturer: MAICO
Centralised ventilation unit with very effective heat recovery through cross-counterflow exchanger, EC motors... more information
Application examples: Passive energy house, Low-energy house, Apartment, Waiting room
Product data sheet
WRG 180 EC IM0009847.PNG Centralised ventilation unit with very effective heat recovery through cross-counterflow exchanger, EC motors with constant volumetric flow regulation, 4 x DN 125, passive-energy house approval, 70 - 165 m³/h, KNX connection possible

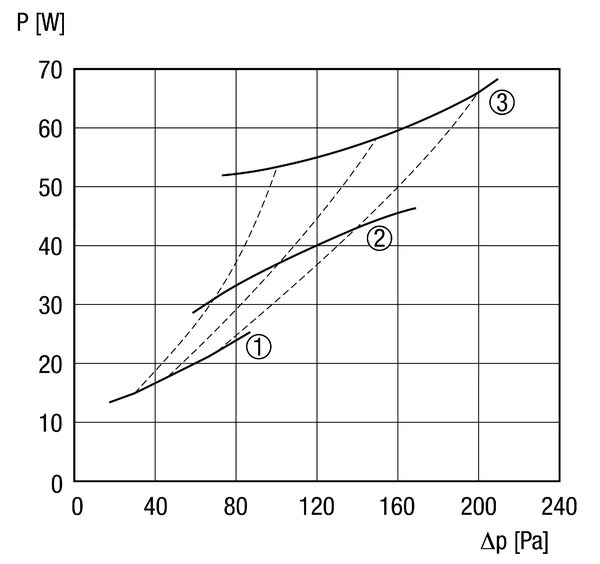

Characteristic curve

WRG 180 EC - Characteristic curve

  1. 70 m3/h
  2. 100 m3/h
  3. 165 m3/h

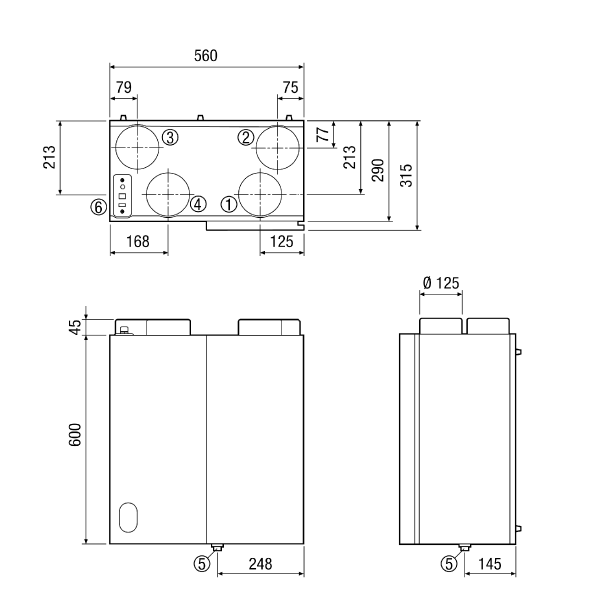

Dimensioned drawing

WRG 180 EC - Dimensioned drawing [mm]

  1. DN 125 exhaust air
  2. DN 125 outside air
  3. DN 125 supply air
  4. DN 125 outgoing air
  5. Condensation connection
  6. Electrical connection

Technical data

WRG 180 EC - Technical data

Article WRG 180 EC
Number of ventilation levels 3
Air flow volume 70 m³/h - 165 m³/h
Volumetric flow constant yes
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Power consumption 37 W - 77 W / At 100 Pa counter pressure
Imax 0,8 A
Degree of protection IP 31
DIBT approval No
PHI certification yes
Installation site Cellar / Storage tank / Jamb wall / Utility room / Heating room
Housing material Sheet steel, powder coated
Heat exchanger material PETG plastic
Colour Pearl white, similar to RAL 1013
Weight 27,7 kg
Weight including packaging 29 kg
Filter class G4
Connection diameter 125 mm
Connection diameter of condensation drain 3/4" inside thread
Width 560 mm
Height 600 mm
Depth 315 mm
Width with packaging 730 mm
Height with packaging 360 mm
Depth with packaging 590 mm
Airstream temperature at IMax 50 °C
Degree of heat provision 90 %
Heat exchanger construction type Cross-counterflow
Bypass No
Frost protection External
Antifreeze circuit yes
Summer circuit No
Filter monitoring time controlled with RLS 2 F
Humidity control optional with HY 5, HY 5 I, HY 10 AP, HY 10 UP
CO2 regulation -
Air quality control (optional) -
KNX connection (optional) yes
Control unit included in scope of delivery. No
Control unit (optional) RLS 2 F, RLS 3
Wireless switch on/off (optional) XE 1, XS 1
Housing emission sound pressure level 37 dB(A) / Spacing 1m, sound absorption 10 m²
Packing unit 1 piece
Range K
GTIN (EAN) 4012799820598
Article number 0082.0059



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA (dB(A))

LWA2, Level 2 (dB(A))

39

LWA5, Level 2 (dB(A))

49

LWA6, Level 2 (dB(A))

56

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

LWA5, LWA6 = sound power level emitted to the free surroundings. Measured at a subsequent operating point on the connections facing the room. LWA5 Exhaust air connections, LWA6 Supply air connections.

Operating point, level 2: Air volume 146 m³/h and external pressure 100 Pa

Accessories

WRG 180 EC - Accessories

Specific accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
MAICOTherm ventilation duct system, thermally insulated MAICOTherm MT thermally-insulated ventilation duct system - - -
MAICOFlex ventilation duct system, round Flexible round MAICOFlex ventilation duct system - - -
Shutter AP 120 0059.0950 on request
  • On the notes
Fly screen FG 120 0093.0924 on request
  • On the notes
External grille SG 120 0059.0951 on request
  • On the notes
Stainless steel cowl LH-V2A 12 0151.0378 on request
  • On the notes
Outside air wall connection KW-AL 12E 0152.0073 on request
  • On the notes
Outside air wall connection KW-AL 12W 0152.0074 on request
  • On the notes
Outside air wall connection KW-AL 16E 0152.0077 on request
  • On the notes
Outside air wall connection KW-AL 16W 0152.0078 on request
  • On the notes
Outgoing air wall connection KW-FL 12E 0152.0075 on request
  • On the notes
Outgoing air wall connection KW-FL 12W 0152.0076 on request
  • On the notes
Outgoing air wall connection KW-FL 16E 0152.0079 on request
  • On the notes
Outgoing air wall connection KW-FL 16W 0152.0080 on request
  • On the notes
Combi-wall connections KWH 12 L 0152.0059 on request
  • On the notes
Combi-wall connections KWH 12 R 0152.0058 on request
  • On the notes
Combi-wall connections KWH 16 L 0152.0061 on request
  • On the notes
Combi-wall connections KWH 16 R 0152.0060 on request
  • On the notes
Roof outlet DF 125 T 0092.0373 on request
  • On the notes
Roof outlet DF 125 S 0092.0374 on request
  • On the notes
Roofing tile DP 125 TB 0092.0378 on request
  • On the notes
Roofing tile DP 125 SB 0092.0379 on request
  • On the notes
Roofing tile DP 125 A 0092.0382 on request
  • On the notes
Mounting clamp BS 125 0092.0359 on request
  • On the notes
Rain protection grille RG 125 0151.0280 on request
  • On the notes
Door ventilation grille MLK 30 white 0151.0123 on request
  • On the notes
Door ventilation grille MLK 45 white 0151.0126 on request
  • On the notes
Disk valve, synthetic material TK 10 0151.0192 on request
  • On the notes
Disk valve, synthetic material TK 12 0151.0198 on request
  • On the notes
Disk valve, stainless steel TM-V2A 10 0151.0374 on request
  • On the notes
Disk valve, stainless steel TM-V2A 12 0151.0375 on request
  • On the notes
Disk valve, metal TFA 10 0151.0369 on request
  • On the notes
Disk valve, metal TFA 12 0151.0370 on request
  • On the notes
Disk valve, metal TFZ 10 0151.0364 on request
  • On the notes
Disk valve, metal TFZ 12 0151.0365 on request
  • On the notes
Mounting frame for TFA/TFZ EBR-D 10 0092.0493 on request
  • On the notes
Mounting frame for TFA/TFZ EBR-D 12 0092.0494 on request
  • On the notes
Blower nozzle WD 10 W 0151.0290 on request
  • On the notes
Blower nozzle WD 10 D 0151.0291 on request
  • On the notes
Supply air valve ZWVQ 10 0152.0064 on request
  • On the notes
Supply air valve ZWVQ 12 0152.0065 on request
  • On the notes
Tubular sound absorber RSR 12 Discontinued product 0092.0312 on request
  • On the notes
Tubular sound absorber RSR 12/50 Discontinued product 0092.0322 on request
  • On the notes
Tubular sound absorber RSR 12-1 New development 0092.0593 on request
  • On the notes
Tubular sound absorber RSR 12/50-1 New development 0092.0601 on request
  • On the notes
Slide-in sound absorber SDE 8 0044.0213 on request
  • On the notes
Slide-in sound absorber SDE 10 0044.0214 on request
  • On the notes
Slide-in sound absorber SDE 12 0044.0215 on request
  • On the notes
Electrical air heater ERH 12-1 0082.0101 on request
  • On the notes
Water air heater WRH 12-1 0082.0117 on request
  • On the notes
Air filter TFE 12-4 0149.0075 on request
  • On the notes
Air filter TFE 12-5 Remaining parts 0149.0059 on request
  • On the notes
Air filter TFE 12-7 0149.0050 on request
  • On the notes
Radio switch XS 1 Remaining parts 0157.0344 on request
  • On the notes
Radio receiver XE 1 Remaining parts 0157.0343 on request
  • On the notes
Thermostat TH 10 0157.0764 on request
  • On the notes
Channel sensor FL 30 P 0157.0780 on request
  • On the notes
Room sensor FR 30 P 0157.0781 on request
  • On the notes
Air flow monitor LW 9 0157.0779 on request
  • On the notes
Brine-air heat exchanger EW-K 225 No longer available for delivery 0192.0520 on request
  • On the notes
Roofing tile DP 125 TF No longer available for delivery 0092.0376 on request
  • On the notes
Roofing tile DP 125 SF No longer available for delivery 0092.0377 on request
  • On the notes
Internal grille, adjustable AZE 100 No longer available for delivery 0059.0959 on request
  • On the notes
Internal grille, adjustable AZE 100 P No longer available for delivery 0059.0962 on request
  • On the notes
Temperature control system ETL 16 P No longer available for delivery 0157.0824 on request
  • On the notes
Hygrostat HY 5 No longer available for delivery 0157.0123 on request
  • On the notes
Hygrostat HY 5 I No longer available for delivery 0157.0125 on request
  • On the notes
Hygrostat HY 10 AP No longer available for delivery 0157.0358 on request
  • On the notes
Hygrostat HY 10 UP No longer available for delivery 0157.0357 on request
  • On the notes

Product description

Productdescription

WRG 180 EC

short description

Centralised ventilation unit with very effective heat recovery through cross-counterflow exchanger, EC motors with constant volumetric flow regulation, 4 x DN 125, passive-energy house approval, 70 - 165 m³/h, KNX connection possible

Product description

Features

  • Special energy savings due to the DC motor.
  • With automatic volumetric flow regulation for constant air quantities.
  • Sheet steel housing, powder-coated
  • Colour: pearl white, similar to RAL 1013.
  • Inner coating of heat resistant synthetic material, non-hygroscopic.
  • With two integrated G4 filters, filter change is possible without tools.
  • 4 DN 125 duct connections on the top of the unit.
  • PH certification.
  • Connection to KNX systems possible.

Heat exchanger

  • Counterflow plate heat exchanger made of synthetic material (PETG).
  • The heat exchanger can be removed easily once the front plate has been unscrewed.
  • The heat exchanger can be easily cleaned using water.

Frost protection

  • Guaranteed frost protection ensures that the heat exchanger does not freeze.
  • The frost protection switches the supply air fan off when the outgoing air temperature is too low.
  • Recommendation: Combine heat recovery units with an earth heat exchanger.

Energy-efficient fans

  • 2 centrifugal DC fans, one fan each for supply air and exhaust air.
  • Fans with centrifugal impellers curved to the front.
  • 3 ventilation levels:
    • 1 = Basic ventilation/Night operation
    • 2 = Normal/Daytime operation
    • 3 = Intensive/Party operation
  • Within each ventilation level, the air volume can be adjusted from 70 m3/h up to 165 m3/h in 5 m3/h levels adjustable.

Mounting instructions

  • With bracket for wall installation, feet for floor installation.
  • Installation on the wall or a pedestal is required to ensure access to the condensation connection.
  • Housing covers can be unscrewed.
  • Provide sound absorbers on the inlet and outlet sides.

Electrical connection

  • When delivered, the device is assembled and ready for service.

Condensation drain

  • Condensation is drained out from the underside of the unit. Condensation drain (3/4" internal thread) to connect up to a siphon.

Table of contents

Wiring diagram

WRG 180 EC - Wiring diagram

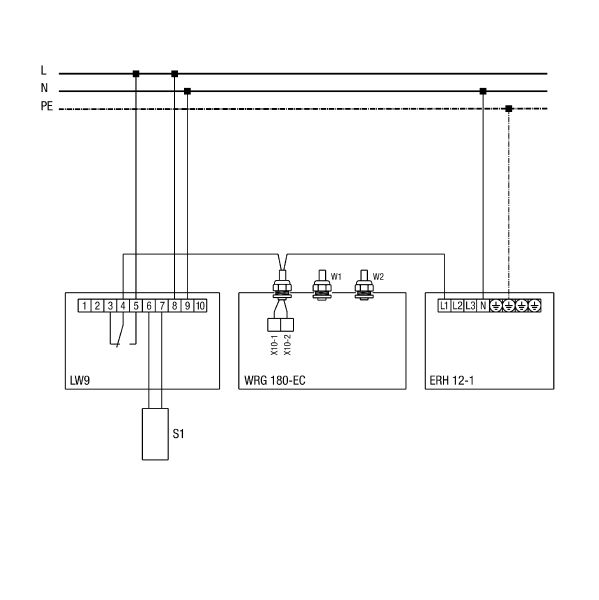

WRG 180 EC ventilation unit with ERH electrical air heater

LW 9 - air flow monitor

S1 - air flow monitor / installation ahead of the ERH 12-1

WRG 180 EC - ventilation unit

ERH - electrical air heaters

If the WRG 180 EC is installed in a passive-energy house, a heat register in the outside air is necessary, in order to guarantee a permanent air exchange. It preheats cold outside air and keeps the heat exchanger free of frost. If the outside air temperature gets cold, the external frost protection heating of the ERH 12-1 switches on and protects the WR 180 EC against icing up.

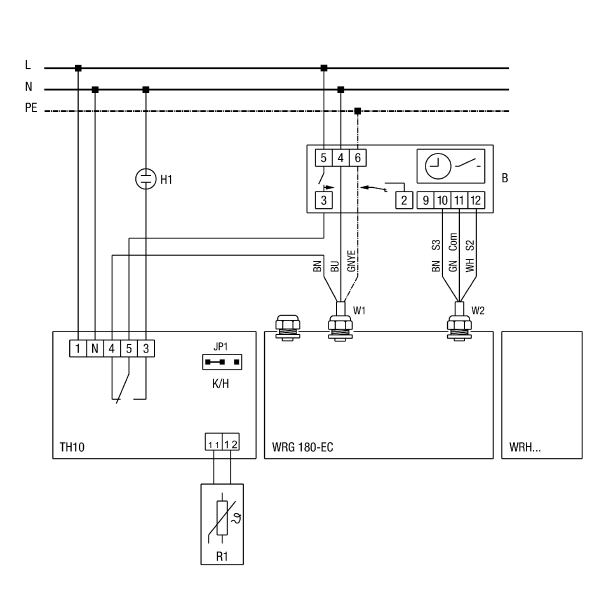

WRG 180 EC ventilation unit with RLS 2 F room air control and WRH water air heater

TH 10 - thermostat with R1 temp.sensor

R1 - temperature sensor / installation in the supply air channel ahead of the WRH

JP1 - plug jumper JP1 on operating mode “K”. Relay switches WR 180 EC off as the temperature drops.

WRG 180 EC - ventilation unit

B - room air control RLS 2 F (operator unit with timer)

W1 - 230 V AC connecting cable

W2 - control cable for room air control

WRH... - water air heater



WRG 180 EC / WRG 300 EC / WRG 400 EC with room air control RLS 3

Fuse protection provided by customer
