Aeronom room air system

WRG 300 EC

No longer available for delivery
Article number: 0082.0060
Manufacturer: MAICO
Compact ventilation system with very efficient heat recovery
Application examples: Low-energy house, Living room, Waiting room
WRG 300 EC IM0009847.PNG Compact ventilation system with very efficient heat recovery

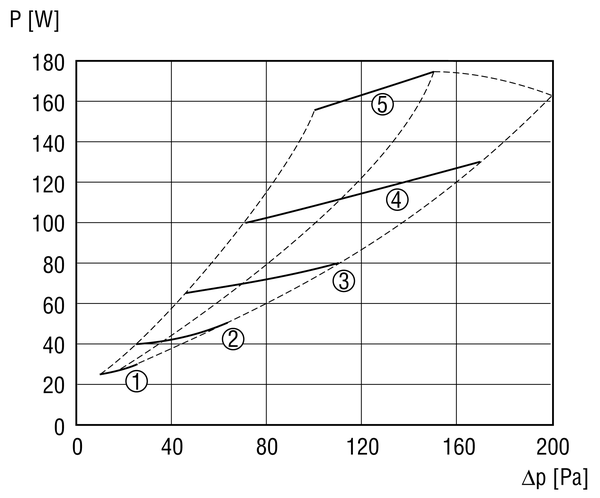

Characteristic curve

WRG 300 EC - Characteristic curve WRG 300 EC

  • WRG 300 EC IM0006046.PNG Compact ventilation system with very efficient heat recovery
  1. 100 m3/h
  2. 150 m3/h
  3. 200 m3/h
  4. 250 m3/h
  5. 300 m3/h

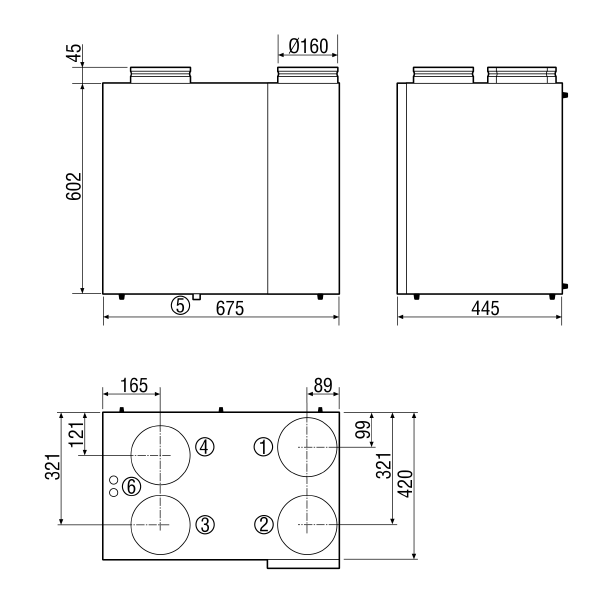

Dimensioned drawing

WRG 300 EC - Dimensioned drawing [mm]

  • WRG 300 EC IM0006074.PNG Compact ventilation system with very efficient heat recovery
  1. Outside air
  2. Exhaust air
  3. Outgoing air
  4. Supply air
  5. Condensation connection
  6. Electrical connection

Technical data

WRG 300 EC - Technical data

Article WRG 300 EC
Air flow volume 60 m³/h / 250 m³/h
Rotating speed 2.070 1/min
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Maximum power consumption 174 W
Imax 1 A
Degree of protection IP 31
Installation site Cellar / Storage tank / Jamb wall / Utility room / Heating room
Housing material Sheet steel, powder coated
Colour Pearl white, similar to RAL 1013
Weight 31
Filter class G4
Connection diameter 160 mm
Airstream temperature at IMax 50 °C
Degree of heat provision 90 %
Heat exchanger construction type Condensation rotor
Packing unit 1 piece
Range K
GTIN (EAN) 4012799820604
Article number 0082.0060



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, Level 3 (dB(A))

25

33

38

39

41

38

40

33

47

LWA5, Level 3 (dB(A))

22

33

34

33

33

27

25

26

40

LWA6, Level 3 (dB(A))

36

48

53

57

60

55

52

47

63

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

210 m³/h air volume for LWA2

208 m³/h air volume for LWA5

219 m³/h air volume for LWA6

Accessories

WRG 300 EC - Accessories

Specific accessories

Product typeNameArt. No.Price*(EUR)Action
Room air controlRLS 2 F0157.0806 on request
  • On the notes
Air filter, replacementWRF 300 ECNo longer available for delivery0093.0061_alt on request
  • On the notes

General accessories

Product typeNameArt. No.Price*(EUR)Action
MAICOFlex ventilation duct system, roundFlexible round MAICOFlex MF ventilation duct system---
MAICOFlex ventilation duct system, roundFlexible round MAICOFlex ventilation duct system---
External grilleMGR 160 alu0078.0036 on request
  • On the notes
Stainless steel cowl LH-V2A 160151.0380 on request
  • On the notes
Combi-wall connectionsKWH 16 L0152.0061 on request
  • On the notes
Combi-wall connectionsKWH 16 R0152.0060 on request
  • On the notes
Roof outletDF 160 S0092.0375 on request
  • On the notes
Roofing tileDP 160 SB0092.0380 on request
  • On the notes
Roofing tileDP 160 A0092.0383 on request
  • On the notes
Mounting clampBS 1600092.0360 on request
  • On the notes
Rain protection grilleRG 1600151.0281 on request
  • On the notes
Door ventilation grilleMLK 30 white0151.0123 on request
  • On the notes
Door ventilation grilleMLK 45 white0151.0126 on request
  • On the notes
Disk valve, synthetic materialTK 100151.0192 on request
  • On the notes
Disk valve, synthetic materialTK 120151.0198 on request
  • On the notes
Disk valve, stainless steelTM-V2A 100151.0374 on request
  • On the notes
Disk valve, stainless steelTM-V2A 120151.0375 on request
  • On the notes
Disk valve, metalTFA 100151.0369 on request
  • On the notes
Disk valve, metalTFA 120151.0370 on request
  • On the notes
Disk valve, metalTFZ 100151.0364 on request
  • On the notes
Disk valve, metalTFZ 120151.0365 on request
  • On the notes
Mounting frame for TFA/TFZEBR-D 100092.0493 on request
  • On the notes
Mounting frame for TFA/TFZEBR-D 120092.0494 on request
  • On the notes
Blower nozzleWD 10 W0151.0290 on request
  • On the notes
Blower nozzleWD 10 D0151.0291 on request
  • On the notes
Supply air valveZWVQ 100152.0064 on request
  • On the notes
Supply air valveZWVQ 120152.0065 on request
  • On the notes
Tubular sound absorberRSR 100092.0311 on request
  • On the notes
Tubular sound absorberRSR 120092.0312 on request
  • On the notes
Tubular sound absorberRSR 160092.0314 on request
  • On the notes
Tubular sound absorberRSR 16/500092.0324 on request
  • On the notes
Slide-in sound absorberSDE 80044.0213 on request
  • On the notes
Slide-in sound absorberSDE 100044.0214 on request
  • On the notes
Slide-in sound absorberSDE 120044.0215 on request
  • On the notes
Slide-in sound absorberSDE 160044.0216 on request
  • On the notes
Electrical air heaterERH 16-20082.0102 on request
  • On the notes
Water air heaterWRH 16-20082.0118 on request
  • On the notes
Air filterTFE 16-40149.0077 on request
  • On the notes
Air filterTFE 16-50149.0061 on request
  • On the notes
Air filterTFE 16-70149.0052 on request
  • On the notes
ContactorUS 16 T0157.0769 on request
  • On the notes
ThermostatTH 100157.0764 on request
  • On the notes
Temperature control systemETL 16 PNo longer available for delivery0157.0824 on request
  • On the notes
Channel sensorFL 30 P0157.0780 on request
  • On the notes
Air flow monitorLW 90157.0779 on request
  • On the notes
Brine-air heat exchangerEW-K 225No longer available for delivery0192.0520 on request
  • On the notes
Folded spiral-seams ductWFR 160No longer available for delivery0055.0079 on request
  • On the notes
Internal grille, adjustableAZE 100No longer available for delivery0059.0959 on request
  • On the notes
Internal grille, adjustableAZE 100 PNo longer available for delivery0059.0962 on request
  • On the notes
Summer cassetteSK 300 PlusNo longer available for delivery0180.0924 on request
  • On the notes

Product description

Productdescription

WRG 300 EC

short description

Compact ventilation system with very efficient heat recovery

Product description

Features

  • Special energy savings due to DC motors having EC technology for constant volumetric flow.
  • With sound-insulated fans for especially quiet running.
  • With automatic volumetric flow regulation for constant air quantities.
  • Sheet steel housing, powder-coated
  • Colour: pearl white, similar to RAL 1013.
  • Inner coating of heat resistant synthetic material, non-hygroscopic.
  • Easy filter change.
  • With two integrated G4 filters, filter change is possible without tools.
  • WRG 300 EC: 4 DN 160 duct connections on the upper side of the unit.
  • WRG 400 EC: 4 DN 180 duct connections on the upper side of the unit.

Heat exchanger

  • Counterflow plate heat exchanger made of synthetic material (PETG).
  • The heat exchanger can be removed easily once the front plate has been unscrewed.
  • The heat exchanger can be easily cleaned using water.

Anti-frost protection

  • Guaranteed anti-frost protection ensures that the heat exchanger does not freeze.
  • The frost protection feature switches the supply air fan off when the outgoing air temperature is too low.
  • Heat recovery systems combined with earth heat exchangers or an electric frost protection feature to also ensure perfect operations at low temperatures. In the winter, the earth heat exchanger also guarantees extra heating power and in the summer, extra cooling power.

Energy-efficient fans

  • 2 centrifugal DC fans, one fan each for supply air and exhaust air.
  • Fans with centrifugal impellers curved to the front.
  • 3 ventilation levels:
    • 1 = Basic ventilation/Night operation
    • 2 = Normal/Daytime operation
    • 3 = Intensive/Party operation
  • WRG 300 EC:
    • Factory setting - 100 / 150 / 225 m3/h.
    • Within each ventilation level, the air volume can be adjusted from 70 m3/h up to 300 m3/h in 5 m3/h levels adjustable.
  • WRG 400 EC:
    • Factory setting - 100 / 200 / 300 m3/h.
    • Within each ventilation level, the air volume can be adjusted from 70 m3/h up to 400 m3/h in 5 m3/h levels adjustable.

Mounting instructions

  • With bracket for wall installation, feet for floor installation.
  • Installation on the wall or a pedestal is required to ensure access to the condensation connection.
  • Housing covers can be unscrewed.
  • Provide sound absorbers on the inlet and outlet sides.

Electrical connection

  • When delivered, the device is assembled and ready for service.

Condensation drain

  • Condensation is drained out at the bottom of the unit. Condensation drainage (½" internal thread) for connection to a drain trap.

Table of contents

Wiring diagram

WRG 300 EC - Wiring diagram



Predecessor - successor

WRG 300 EC - Successor

Product typeNameArt. No.Action
Centralised ventilation unitWRG 300 ECNo longer available for delivery0082.0062
