Aeronom room air system

WS 600

No longer available for delivery
Article number: 0095.0056
Manufacturer: MAICO
Compact ventilation system with very efficient heat recovery, summer/winter operation and constant volumetric... more information
Application examples: Single-family house, Office

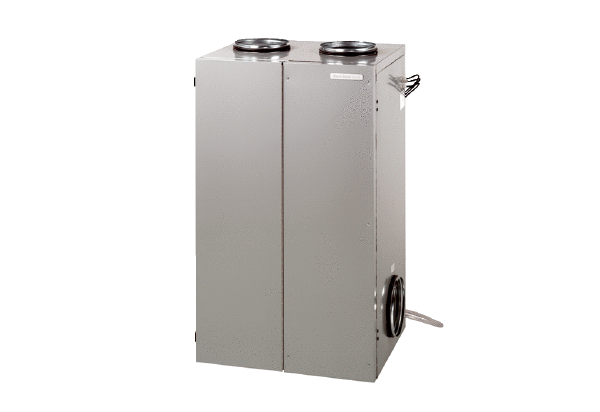

WS 600 IM0009844.PNG Compact ventilation system with very efficient heat recovery, summer/winter operation and constant volumetric flow
WS 600 IM0016031.PNG Compact ventilation system with very efficient heat recovery, summer/winter operation and constant volumetric flow

Characteristic curve

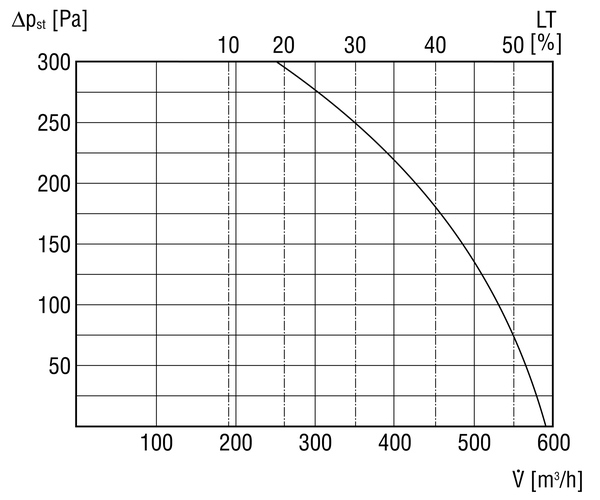

WS 600 - Characteristic curve

LT - Power unit setting

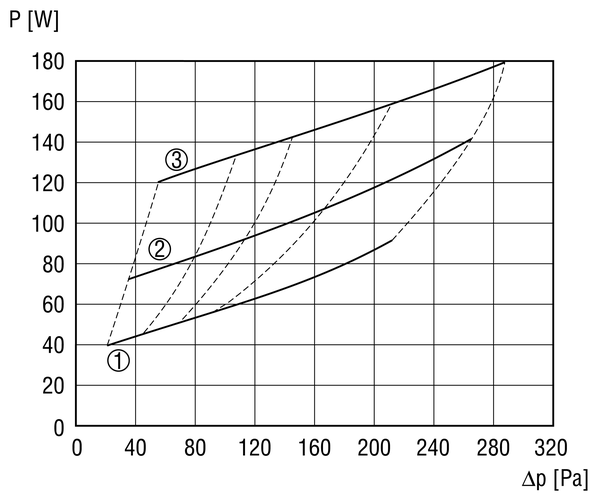

WS 600 - Characteristic curve

  1. Step 1 = 200 m3/ h
  2. Step 2 = 300 m3/ h
  3. Step 3 = 400 m3/ h

Dimensioned drawing

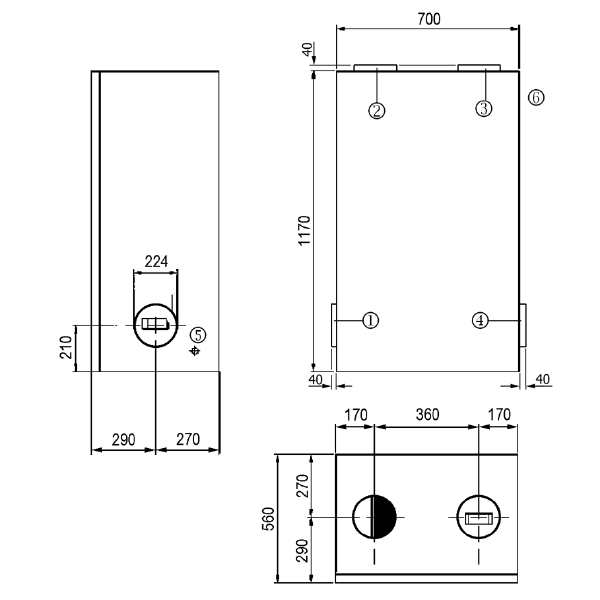

WS 600 - Dimensioned drawing [mm]

  1. Outside air
  2. Exhaust air
  3. Supply air
  4. Outgoing air
  5. Condensation connection
  6. Electrical connection

Technical data

WS 600 - Technical data

Article WS 600
Air flow volume 200 m³/h / 550 m³/h
Rotating speed 2.070 1/min
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Maximum power consumption 220 W
Imax 1 A
Degree of protection IP 00
Installation site Cellar / Storage tank / Jamb wall / Utility room / Heating room
Housing material Sheet steel, galvanised
Colour Light grey
Weight 100
Filter class G4
Connection diameter 224 mm
Width 700 mm
Height 1.190 mm
Depth 560 mm
Airstream temperature at IMax 50 °C
Ambient temperature 50 °C
Degree of heat provision 90 %
Heat exchanger construction type Condensation rotor
Packing unit 1 piece
Range K
GTIN (EAN) 4012799950561
Article number 0095.0056



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, Level 3 (dB(A))

45

48

46

38

32

33

36

28

51

LWA5, Level 3 (dB(A))

35

40

39

39

39

20

15

5

46

LWA6, Level 3 (dB(A))

38

51

54

58

59

44

39

40

63

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

WS 600 - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Air filter, replacement WSG 600 0093.0886 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Roof outlet DF - - -
Roofing tile DP - - -
Mounting clamp BS - - -
Rain protection grille RG - - -
Brine earth heat exchanger EW brine earth heat exchanger - - -
MAICOFlex ventilation duct system, round Flexible round MAICOFlex MF ventilation duct system - - -
MAICO FFS ventilation duct system, flat MAICO FFS flexible flat ventilation duct system - - -
MAICOFlex ventilation duct system, round Flexible round MAICOFlex ventilation duct system - - -
Stainless steel cowl LH-V2A 10 0151.0377 on request
  • On the notes
Stainless steel cowl LH-V2A 12 0151.0378 on request
  • On the notes
Internal grille ESG 10/2 0059.0947 on request
  • On the notes
Door ventilation grille MLK 30 white 0151.0123 on request
  • On the notes
Door ventilation grille MLK 45 white 0151.0126 on request
  • On the notes
Exhaust and supply air valve AZV 100 0152.0087 on request
  • On the notes
Disk valve, synthetic material TK 10 0151.0192 on request
  • On the notes
Disk valve, synthetic material TK 12 0151.0198 on request
  • On the notes
Disk valve, metal TM 10 0151.0194 on request
  • On the notes
Disk valve, metal TM 12 0151.0196 on request
  • On the notes
Disk valve, stainless steel TM-V2A 10 0151.0374 on request
  • On the notes
Disk valve, stainless steel TM-V2A 12 0151.0375 on request
  • On the notes
Disk valve, metal TFA 10 0151.0369 on request
  • On the notes
Disk valve, metal TFA 12 0151.0370 on request
  • On the notes
Disk valve, metal TFZ 10 0151.0364 on request
  • On the notes
Disk valve, metal TFZ 12 0151.0365 on request
  • On the notes
Mounting frame for TFA/TFZ EBR-D 10 0092.0493 on request
  • On the notes
Mounting frame for TFA/TFZ EBR-D 12 0092.0494 on request
  • On the notes
Blower nozzle WD 10 W 0151.0290 on request
  • On the notes
Blower nozzle WD 10 D 0151.0291 on request
  • On the notes
Grease filter element for exhaust air FFE 10 0092.0506 on request
  • On the notes
Tubular sound absorber RSR 20 0092.0316 on request
  • On the notes
Tubular sound absorber RSR 10/50 0092.0321 on request
  • On the notes
Tubular sound absorber RSR 12/50 0092.0322 on request
  • On the notes
Tubular sound absorber RSR 20/50 0092.0326 on request
  • On the notes
Slide-in sound absorber SDE 8 0044.0213 on request
  • On the notes
Slide-in sound absorber SDE 10 0044.0214 on request
  • On the notes
Slide-in sound absorber SDE 12 0044.0215 on request
  • On the notes
Slide-in sound absorber SDE 16 0044.0216 on request
  • On the notes
Electrical air heater ERH 20-2 0082.0103 on request
  • On the notes
Water air heater WRH 20-2 0082.0119 on request
  • On the notes
Air filter TFE 20-4 0149.0078 on request
  • On the notes
Air filter TFE 20-5 0149.0062 on request
  • On the notes
Air filter TFE 20-7 0149.0053 on request
  • On the notes
Temperature control system ETL 16 P Discontinued product 0157.0824 on request
  • On the notes
Channel sensor FL 30 P 0157.0780 on request
  • On the notes
Folded spiral-seams duct WFR 200 No longer available for delivery 0055.0081 on request
  • On the notes
Internal grille, adjustable AZE 100 No longer available for delivery 0059.0959 on request
  • On the notes
Internal grille, adjustable AZE 100 P No longer available for delivery 0059.0962 on request
  • On the notes

Product description

Productdescription

WS 600

short description

Compact ventilation system with very efficient heat recovery, summer/winter operation and constant volumetric flow

Product description

Features

  • Automatic constant volumetric flow regulation for equal air quantities.
  • Special energy savings due to the DC motor.
  • Integrated filter system with coarse filter (G4) in the outside air and in the exhaust air. Filter change is possible without tools.
  • Electronic filter monitoring with filter change warning displayed on the operator unit.
  • 4 DN 225 duct connections with with rubber lip seals. Of which 2 are on the top of the unit and 1 is fitted on each side wall. For directly connecting up tubular sound absorbers.
  • Controlled from the operator unit in the living room.
  • Operator unit for switching fan steps, timer, filter pollution display included in scope of delivery.

Heat exchanger

  • Counterflow heat exchanger made of aluminium.
  • The heat exchanger can be easily removed and cleaned with water.

Anti-frost protection

  • Always combine heat recovery systems with earth heat exchangers, in order to be able to guarantee trouble-free operation, even at very low temperatures. Furthermore, an earth heat exchanger guarantees additional heater power rating in winter and additional cooling power in summer.

Heat recovery fan

  • 2 centrifugal DC fans, one fan each for supply air and exhaust air.
  • 3 ventilation steps:
    • 1 = Basic ventilation/Night operation
    • 2 = Normal / Daytime operation
    • 3 = Intensive / Party operation
    • Factory setting: 270 m3/h / 350 m3/h / 450 m3/h

Mounting instructions

  • The front plate can be hinged open for changing the filter.
  • Allow for sufficient space at the side walls when installing.
  • Decouple the housing with impact sound plates for sound insulation.

Electrical connection

  • The attached operator unit is connected to the central unit via a 5-core, screened cable (maximum length 100 m).

Condensation drain

  • Condensation is drained from the side of the unit using a hose (DN 1/2") connected to a siphon.

Table of contents

Wiring diagram

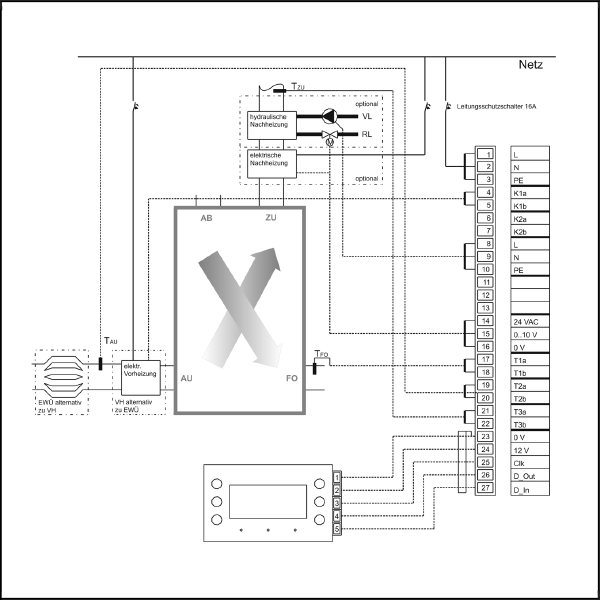

WS 600 - Wiring diagram

WS 600

Terminal assignment:

1, 2, 3 - 230 V, 50 Hz connection for mains supply

4, 5 - Electrical pre-heating contact (option)

6, 7 - Electrical re-heating contact (option)

8, 9, 10 - Heating circulation pump for hydraulic re-heating (option)

14, 15, 16 - Re-heating thermal valve / Controller for electrical re-heating (option)

17, 18 - Outgoing air temperature sensor

19, 20 - Outside air temperature sensor

21, 22 - Supply air temperature sensor

23, 24, 25, 26, 27 - Remote control interface (minimum 5 x 0.22 m2, screened)

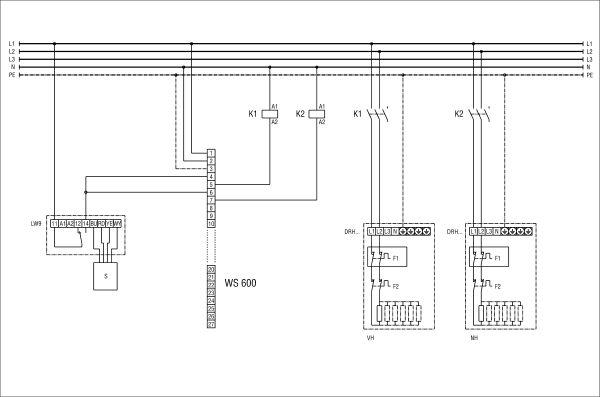

WS 600 with DRH electrical air heater

LW 9 - air flow monitor

S - sensor

K1 - Contactor, electrical pre-heating, e.g. US 16 T

K2 - Contactor, electrical re-heating, e.g. US 16 T

DRH - electrical air heater

VH - Electrical pre-heating

NH - Electrical re-heating



Predecessor - successor

WS 600 - Successor

Product type Name Art. No. Action
Centralised ventilation unit WR 600 No longer available for delivery 0095.0080
