Mounting clamp

MT-LS125

Article number: 0018.0065
Manufacturer: MAICO
Mounting clamp for MT ducts DN 125, with threaded sleeve M8
Application examples: Single-family house, Multiple family unit, New build, Redevelopment, Non-residential buildings
Product data sheet

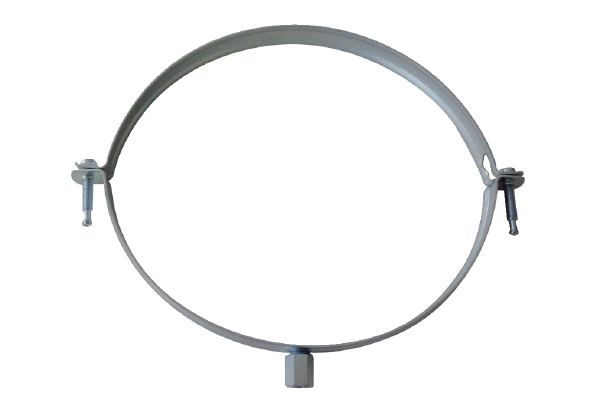

MT-LS125 IM0013973.PNG Mounting clamp for MT ducts DN 125, with threaded sleeve M8

Characteristic curve

Dimensioned drawing

Technical data

MT-LS125 - Technical data

Article MT-LS125
Air direction Ventilation and air extraction
Installation site Ceiling / Wall / Floor
Material Sheet steel, galvanised
Weight 0,16 kg
Weight including packaging 0,2 kg
Nominal size 125 mm
Suitable for nominal size 160 mm
Width 215 mm
Height 135 mm
Depth 20 mm
Width with packaging 215 mm
Height with packaging 135 mm
Depth with packaging 20 mm
Thread M8
Packing unit 1 piece
Range K
GTIN (EAN) 4012799180654
Article number 0018.0065

Accessories of

MT-LS125 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Ventilation duct, thermally insulated MT-R125 0059.0981 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Aeronom room air system WS 170 - - -
Centralised ventilation unit WS 120 Trio - - -
Centralised ventilation unit WS 160 Flat - - -
Centralised ventilation unit WS 170 air@home - - -
Centralised ventilation unit WS 300 Flat - - -
Centralised ventilation unit WS 320 - - -
Centralised ventilation unit WS 470 - - -
Centralised ventilation unit Trio - - -
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 310 R 0095.0260 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WR 410 R 0095.0261 on request
  • On the notes
Ventilation unit WS 75 Powerbox S 0095.0645 on request
  • On the notes
Centralised exhaust air unit ZEG 2000 P No longer available for delivery 0086.0203 on request
  • On the notes
Centralised ventilation unit WS 150 R No longer available for delivery 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L No longer available for delivery 0095.0058 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Centralised ventilation unit WRG 180 EC No longer available for delivery 0082.0059 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centralised ventilation unit WRG 400 EC No longer available for delivery 0082.0063 on request
  • On the notes

Product description

Productdescription

MT-LS125

short description

Mounting clamp for MT ducts DN 125, with threaded sleeve M8

Product description

  • Two-part mounting clamp with pre-fitted clamping screws for installing the thermally insulated MAICOTherm MT ventilation duct system.
  • Fitted with swivel screw for safe and simple quick-coupling mounting.
  • Quick installation because the ducts/elbows can be fitted without any tools.
