Installation instructions

• Observe the installation instructions in chapter Installation of the parapet wall for RV 2 VH. Installation only permitted by qualified personnel in accordance with chapter Specialist installer qualifications.
• Observe the vertical installation position. Align the mounting sleeve precisely with a spirit level.
• Place the mounting sleeve in the soffit. Remove the overlying brick. Adjust masonry if necessary.
• Take the alignment to the window into account.
• Take the load transfer into account, see planning documents and chapter Note the following when selecting the installation location.
• To transfer the load to the mounting sleeve, lay the bricks above in a half offset.

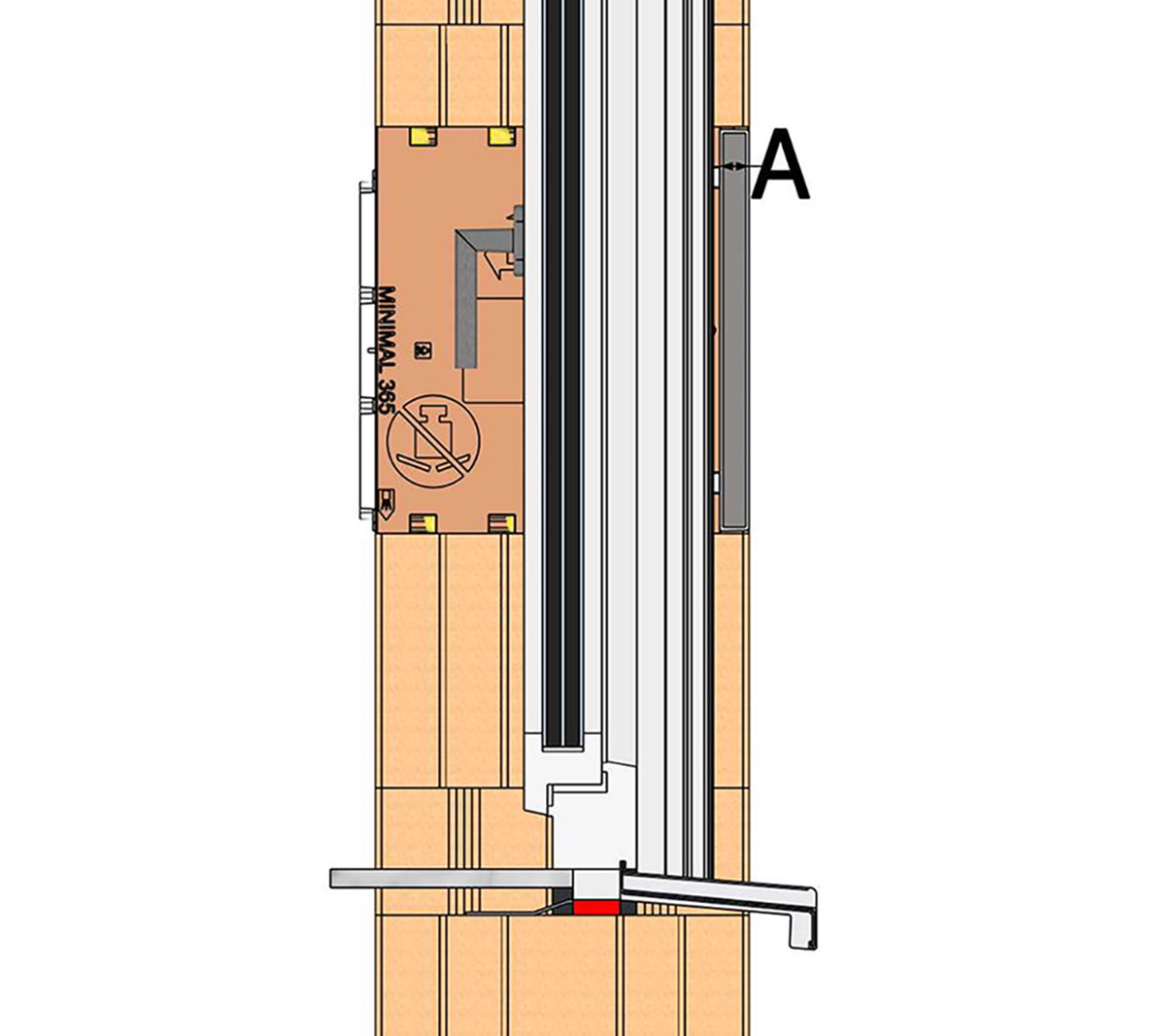

Before installation, ensure that the mounting sleeve also fits the shading system. Guide rail, window and 90° deflection (A = 28.5 mm) must fit together. The planning office and contractor carrying out the work are responsible for this. Follow the planning documents!
