Fans

V WSRB 150

Article number: E156.0117.9000
Manufacturer: MAICO
Fan as spare part for WS 150 centralised ventilation unit

Product data sheet

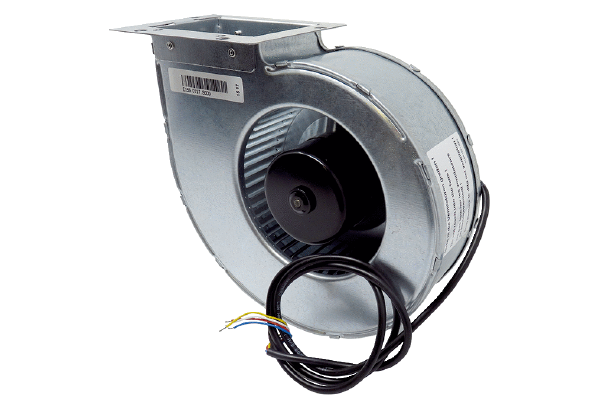

V WSRB 150 IM0019118.PNG Fan as spare part for WS 150 centralised ventilation unit

Characteristic curve

Dimensioned drawing

Technical data

V WSRB 150 - Technical data

Article V WSRB 150
Type of voltage Direct current
Rated voltage 48 V (36 V -57 V)
Nominal output 72 W
Weight 2,43 kg
Weight including packaging 2,75 kg
Width 115 mm
Height 225 mm
Depth 255 mm
Width with packaging 155 mm
Height with packaging 270 mm
Depth with packaging 280 mm
Range K
GTIN (EAN) 4012799101475
Article number E156.0117.9000

Spare part for

V WSRB 150 - Spare part for

Spare part for

Product type Name Art. No. Price*(EUR) Action
Centralised ventilation unit WS 150 R No longer available for delivery 0095.0057 on request
  • On the notes
Centralised ventilation unit WS 150 L No longer available for delivery 0095.0058 on request
  • On the notes

Product description

Productdescription

V WSRB 150

short description

Fan as spare part for WS 150 centralised ventilation unit

Product description

  • Fan as spare part for WS 150 centralised ventilation unit.
  • DC motor model (EC technology).

Table of contents

Wiring diagram

V WSRB 150 - Wiring diagram
