Final assembly kit

PPB 30 RC

Article number: 0095.0244
Final installation kit for PushPull Balanced PPB 30 RC single-room ventilation unit with heat recovery,... more information

Product data sheet
PPB 30 RC IM0018181.PNG Final installation kit for PushPull Balanced PPB 30 RC single-room ventilation unit with heat recovery, comprising 2 fans, 2 ceramic heat exchangers, internal cover with 2 ISO Coarse 45 % (G3) filters, wireless version: with integrated radio board including humidity sensor, accessories needed: shell sleeve, external cover and DS 45 RC radio switch or RLS 45 K room air control with PP45 EO, optional accessories: extension kit, wall block, compensating frame and sensors
PPB 30 RC IM0019953.PNG Final installation kit for PushPull Balanced PPB 30 RC single-room ventilation unit with heat recovery, comprising 2 fans, 2 ceramic heat exchangers, internal cover with 2 ISO Coarse 45 % (G3) filters, wireless version: with integrated radio board including humidity sensor, accessories needed: shell sleeve, external cover and DS 45 RC radio switch or RLS 45 K room air control with PP45 EO, optional accessories: extension kit, wall block, compensating frame and sensors
PPB 30 RC IM0013942.PNG Final installation kit for PushPull Balanced PPB 30 RC single-room ventilation unit with heat recovery, comprising 2 fans, 2 ceramic heat exchangers, internal cover with 2 ISO Coarse 45 % (G3) filters, wireless version: with integrated radio board including humidity sensor, accessories needed: shell sleeve, external cover and DS 45 RC radio switch or RLS 45 K room air control with PP45 EO, optional accessories: extension kit, wall block, compensating frame and sensors
Back
  • On the notes
PPB 30 K
PPB 30 O
PPB 30 RC

Characteristic curve

Dimensioned drawing

PPB 30 RC - Dimensioned drawing [mm]

  1. Wall sleeve centre
  2. Fixing holes
  3. Cable entry

Technical data

PPB 30 RC - Technical data

Article PPB 30 RC
Model Wireless version, integrated humidity sensor
Air flow volume 5 m³/h / 12 m³/h / 18 m³/h / 22 m³/h / 26 m³/h
SEC average -40,23 kWh/(m²*a)
Energy efficiency class A
Rated voltage 230 V
SPI value in accordance with DIN EN 13141-8 0,19 Wh/m³
Maximum power consumption 2 W / 2,5 W / 3,2 W / 4 W / 5,1 W
Degree of protection IP X4
Installation position horizontal
System type Decentralised
Material Synthetic material
Housing material Synthetic material
Heat exchanger material Ceramic
Colour Traffic white, similar to RAL 9016
Weight 4,47 kg
Weight including packaging 5,52 kg
Type of filter Outside and exhaust air filter
Filter class ISO Coarse 45 % (G3)
Connection diameter 160 mm
Width 275 mm
Height 275 mm
Depth 410 mm
Width with packaging 300 mm
Height with packaging 330 mm
Depth with packaging 500 mm
Wall has to be broken through 162 to 182 mm
Minimum wall thickness 320 millimeters
Degree of heat provision with reference volumetric flow according to DIN EN 13141-8 73,3 %
Required room air control DS 45 RC or RLS 45 K with PP 45 EO
Sound pressure level 23 dB(A) / 35 dB(A) / 43 dB(A) / 48 dB(A) / 51 dB(A) / Distance 1 m, free-field conditions
Rated max. element normal difference in noise level Dn,w 37 dB
Packing unit 1 piece
Range K
GTIN (EAN) 4012799952442
Article number 0095.0244

Accessories

PPB 30 RC - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Shell sleeve RH 160 0059.0169 on request
  • On the notes
Shell sleeve RH 160 L New development 0059.0236 on request
  • On the notes
External cover PPB 30 AK 0093.1498 on request
  • On the notes
External cover PPB 30 AE 0093.1499 on request
  • On the notes
External cover PPB 30 AW 0093.1500 on request
  • On the notes
External cover PPB 30 AS 0093.0613 on request
  • On the notes
Compensating frame PPB 30 ARE 0093.1501 on request
  • On the notes
Compensating frame PPB 30 ARW 0093.1525 on request
  • On the notes
Extension kit PPB 30 VS 0093.1522 on request
  • On the notes
Extension kit PPB 30 VSDF 0059.0870 on request
  • On the notes
Air filter, replacement PPB 30 G3 0093.1502 on request
  • On the notes
Insulated wall block PP 45 MB 0058.0143 on request
  • On the notes
Shell kit PP 45 RS 0093.1751 on request
  • On the notes
Masonry block MS 160 0058.0168 on request
  • On the notes
Roof outlet duct PP 45 DFK 0058.0096 on request
  • On the notes
Roof outlet sleeve PP 45 DFHK 0059.0868 on request
  • On the notes
Roof outlet sleeve PP 45 DFHL 0059.0869 on request
  • On the notes
Roof cover frame PP 45 DER 25-35 0093.1316 on request
  • On the notes
Roof cover frame PP 45 DER 36-55 0093.1317 on request
  • On the notes
Roof cowl PP 45 DH 25-30 0093.1318 on request
  • On the notes
Roof cowl PP 45 DH 31-35 0093.1319 on request
  • On the notes
Roof cowl PP 45 DH 36-45 0093.1320 on request
  • On the notes
Roof cowl PP 45 DH 46-55 0093.1321 on request
  • On the notes
Room air control RLS 45 K 0157.0360 on request
  • On the notes
Room air control RLS 45 O 0157.0359 on request
  • On the notes
Radio switch DS 45 RC 0157.0363 on request
  • On the notes
EnOcean extension module PP 45 EO 0157.0362 on request
  • On the notes
Shell sleeve PP 45 RHK No longer available for delivery 0059.0081 on request
  • On the notes
Shell sleeve PP 45 RHL No longer available for delivery 0059.0082 on request
  • On the notes

Product description

Productdescription

PPB 30 RC

short description

Final installation kit for PushPull Balanced PPB 30 RC single-room ventilation unit with heat recovery, comprising 2 fans, 2 ceramic heat exchangers, internal cover with 2 ISO Coarse 45 % (G3) filters, wireless version: with integrated radio board including humidity sensor, accessories needed: shell sleeve, external cover and DS 45 RC radio switch or RLS 45 K room air control with PP45 EO, optional accessories: extension kit, wall block, compensating frame and sensors

Product description

Approvals and certificates

  • Test report in accordance with EN 13141-8.
  • Entry in TZWL bulletin.

Heat exchanger

  • Thanks to the high-performance heat exchangers and high-efficiency EC fans, the units achieve a degree of heat provision of 73 % at reference volumetric flow according to EN 13141-8.

Installation instructions

  • Mounting involves 2 steps:
    • Installation of the PP 45 RHK (DN 160) or PP 45 RHL (DN 160) shell sleeve and an external cover in a DN 160 core drill hole with an inclination of 1-2 %.
    • We recommend drilling a DN 182 core hole and using the polystyrene shims provided to align the inclination of the sleeve.
    • The shell sleeve is protected from contamination by plaster protective covers.
    • Then the final assembly kit is integrated.
    • No ducts have to be laid and the system does not have to be adjusted.

Electrical connection

  • When delivered, the unit is assembled and ready for service.
  • The PPB 30 RC is connected directly to 230 V. ATTENTION: Check unit’s application area (protected area).

Condensation drain

  • The condensate is removed via an integrated condensation drip edge in the external cover.

Special features

  • The PPB 30 RC unit is a perfect supplement for PP 45 RC units to set up a ventilation system according to DIN 1946-6 via a central control (DS 45 RC).
  • The PPB 30 RC units have a humidity sensor as standard and are primarily designed for installation in the exhaust air rooms. The IP X4 degree of protection facilitates the choice of installation location in the bathroom.
  • The energy efficiency of the PPB 30 RC is impressive with an SPI value of 0.18 Wh/m³.
  • Due to the energy-saving motors and a very good sensor-guided operation, the devices achieve energy efficiency class A.
  • The PPB 30 RC unit can be operated in 5 ventilation levels 5/12/18/22/26 m³/h and 3 operating modes (continuous ventilation with heat recovery, cross-ventilation without heat recovery) and automatic operating mode.
  • The recommended combination option for a wireless system is 2 or 4 x PP 45 RC + 1 x PPB 30 RC + 1 x DS 45 RC.
  • In this case, the PPB 30 RC unit can be operated in two different operating modes. When in automatic mode, the unit runs completely independently depending on the humidity value of the integrated sensor. When in automatic mode, only the “External Off” and “Ventilation level 0” commands are executed by the DS 45 RC radio switch. In system mode, the unit runs fully in line with the requirements of the DS 45 RC radio switch. Only in the event of humidity (limit value can be set) will the unit disconnect from the system and start dehumidification.
  • Automatic dehumidification can be set as intensive ventilation mode (level 5 with heat recovery) or as exhaust air mode (45m³/h without heat recovery).
  • In the event of odours, intensive ventilation mode (level 5 with heat recovery) or exhaust air mode (45m³/h without heat recovery) can also be triggered manually with a button/switch. The duration of this function is adjustable (factory setting = 10 min).
  • If the PPB 30 RC is running in exhaust air mode, the PP 45 RC units connected to the DS 45 RC radio switch ensure the necessary supply air.
  • Flow-optimised external covers in the accessories range keep the exhaust air away from the external façade.

Features

  • Final installation kits for PushPull Balanced PPB 30 single-room ventilation unit with two fans, two ceramic heat exchangers, internal cover and two integrated ISO Coarse 45 %(G3) filters such that the air is filtered in both directions.

Required accessories

  • RH 160 or RH 160 L shell sleeve
  • PPB 30 AK, PPB 30 AE, PPB 30 AW or PPB 30 AS external cover
  • DS 45 RC: The DS 45 RC radio switch can be used to construct a radio-controlled ventilation system comprising PPB 30 RC and PP 45 RC units, e.g. 4 x PP 45 RC + 1 x PPB 30 RC + 1 x DS 45 RC.
  • PP 45 EO: If the RLS 45 K room air control is extended with PP 45 EO, the wired units , can be combined with radio units, e.g. 4x PP 45 K/O + 1 x PPB 30 RC + 1 x RLS 45 K + 1 x PP 45 EO.

Optional accessories

  • PPB 30 VS extension kit
  • PP 45 MB wall block
  • PPB 30 ARE and PPB 30 ARW compensating frames
  • PPB 30 ARE BB and PPB 30 ARW BB fixing plates for compensating frame
  • PP 45 HYI and PP 45 HY humidity sensor
  • PP 45 CO2 CO2 sensor
  • PP 45 VOC sensor
  • Air filter, PPB 30 G3 replacement

Table of contents

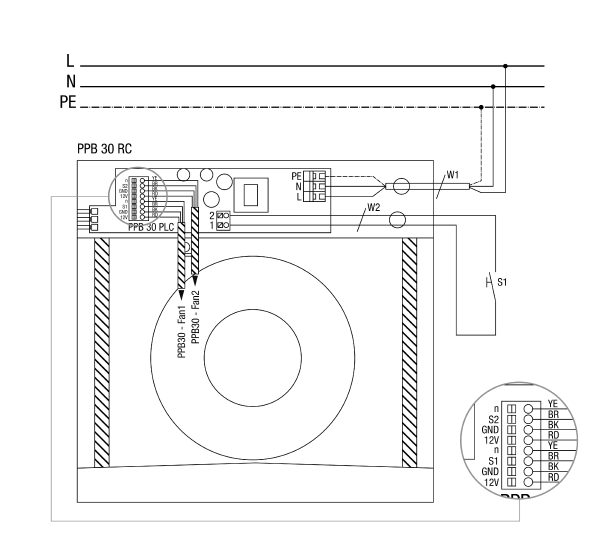

Wiring diagram
