RLV 125 S - Characteristic curve
Pressure-volume flow characteristic curves for exhaust air
RLV 125 S - Characteristic curve
Pressure-volume flow characteristic curves for supply air
Supply and exhaust air valve
RLV 125 S
New developmentAdjustable supply and exhaust air valve with mounting support and integrated throttle element. Small front... more information
Product data sheet
Characteristic curve
Dimensioned drawing

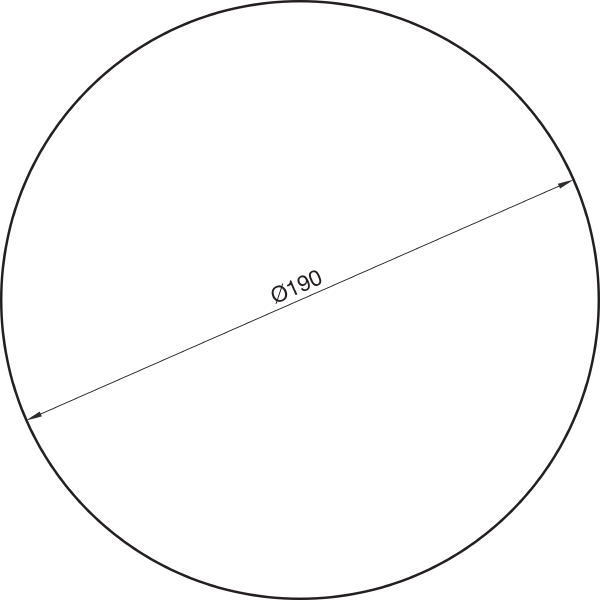

RLV 125 S - Dimensioned drawing [mm]
RLV 125 S - Dimensioned drawing [mm]
Technical data
RLV 125 S - Technical data
Accessories of
RLV 125 S - Accessories of
is a general accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Centralised compact air handling unit | RLT | - | - | - |
Product description
Productdescription
RLV 125 S
short description

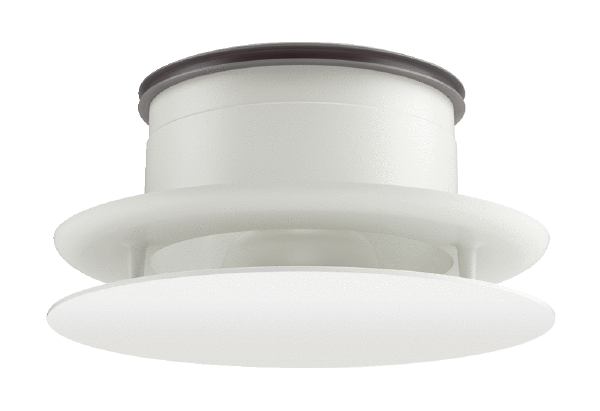

Adjustable supply and exhaust air valve with mounting support and integrated throttle element. Small front panel.Product description
- Comfort valve RLV-125 S, small front panel model: round, diameter 190 mm.
- Thanks to its flow-optimised properties, the RLV comfort valve is ideal for use in very quiet conditions in apartments and offices.
- Designed for installation on walls and ceiling, the RLV comfort valve with its unique acoustic properties offers optimum quiet sound levels and can be used for both supply air and exhaust air.
- The valve consists of two parts:
- The functional base with integrated throttle element for adjustment and mounting support.
- The visually appealing front panel made of powder coated aluminium (available in S (small round), L (large round) and SQ (square) versions).
- Both parts are connected to each other by a screw connection.
- The mounting support (nipple size DN 125) is equipped with a class D double lip seal.
Wiring diagram
RLV 125 S - Wiring diagram
Downloads / Videos
RLV 125 S - Downloads / Videos
Predecessor - successor
