Smoke gas switch incl. installation

RGS 144 M

Article number: 0157.1472
Optical smoke gas switch RGS 144 with base; without alarm self-latching. For mounting in GVX units ex works... more information

Product data sheet

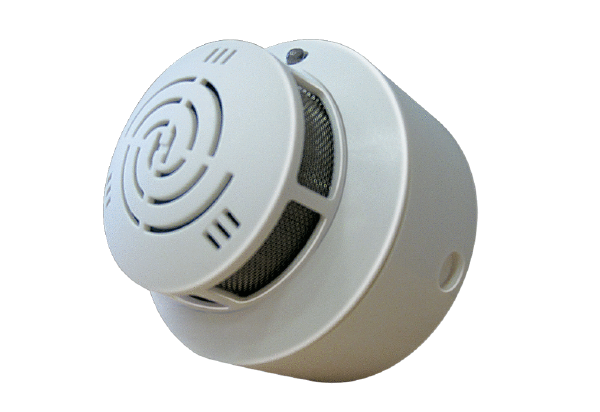

RGS 144 M IM0023223.PNG Optical smoke gas switch RGS 144 with base; without alarm self-latching. For mounting in GVX units ex works only
Back
  • On the notes
RGS 144
RGS 144 M
LRS 01
LRS 03
LRZ 01
PA 918 5

Characteristic curve

Dimensioned drawing

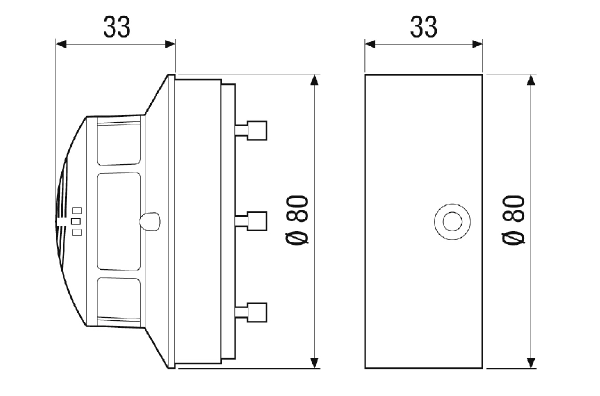

RGS 144 M - Dimensioned drawing [mm]

Technical data

RGS 144 M - Technical data

Article RGS 144 M
Rated voltage 24 V DC
Imax 22 mA
Degree of protection IP 30
Housing material Synthetic material
Colour similar to RAL 9010
Weight 0,2 kg
Weight including packaging 0,18 kg
Width 80 mm
Height 70 mm
Depth 70 mm
Width with packaging 85 mm
Height with packaging 85 mm
Depth with packaging 105 mm
Packing unit 1 piece
Range X
GTIN (EAN) 4012799320425
Article number 0157.1472

Accessories / Accessories of

RGS 144 M - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Test aerosol PA 918 5 New development 0043.2930 on request
  • On the notes

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Decentralised compact air handling unit geniovent.x - - -

Product description

Productdescription

RGS 144 M

short description

Optical smoke gas switch RGS 144 with base; without alarm self-latching. For mounting in GVX units ex works only

Product description

  • The optical smoke gas switch detects both smouldering fires and open fires with smoke development at an early stage.
  • An additional temperature sensor responds at an ambient temperature of 70 °C.
  • Is installed in the unit during production or supplied.
  • Retrofitting must be checked accordingly.

Table of contents

Wiring diagram

RGS 144 M - Wiring diagram
