Shutter, motorised

VKM-MV4523-H-DA

Article number: 0043.2689
Motorised shutters for RLT central air handling units with heat recovery. Suitable for RLT 2300 MV4523H. Order... more information

Product data sheet
VKM-MV4523-H-DA IM0023028.PNG Motorised shutters for RLT central air handling units with heat recovery. Suitable for RLT 2300 MV4523H. Order necessary with RLT central air handling unit.
Back
  • On the notes
VKM-MV4512-H-DA
VKM-MV4516-H-DA
VKM-MV4523-H-DA
VKM-MV4540-H-DA
VKM-MV4555-H-DA
VKM-MV4512-V-DA
VKM-MV4516-V-DA
VKM-MV4523-V-DA
VKM-MV4540-V-DA
VKM-MV4555-V-DA

Characteristic curve

Dimensioned drawing

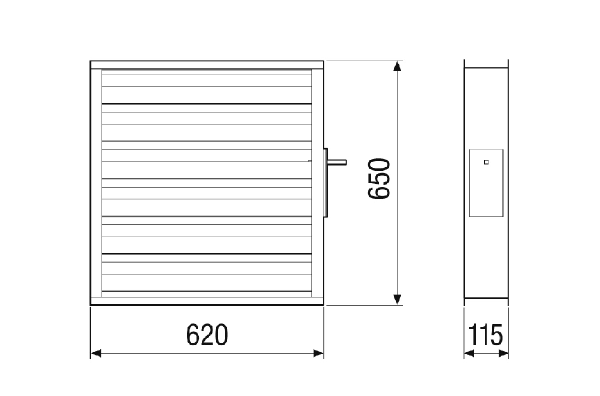

VKM-MV4523-H-DA - Dimensioned drawing [mm]

Technical data

VKM-MV4523-H-DA - Technical data

Article VKM-MV4523-H-DA
Model for horizontal unit series
Rated voltage 24 V AC / DC
Frequency 50 Hz
Installation site Outside air wall connection/outgoing air wall connection on RLT air handling unit
Material Aluminium profile
Colour unpainted
Weight 12,2 kg
Weight including packaging 14,4 kg
Connection diameter 450 mm
Width 720 mm
Height 650 mm
Depth 115 mm
Width with packaging 840 mm
Height with packaging 890 mm
Depth with packaging 235 mm
Packing unit 1 piece
Range X
GTIN (EAN) 4012799985792
Article number 0043.2689

Accessories / Accessories of

VKM-MV4523-H-DA - Accessories / Accessories of

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Surcharge for servomotor with spring return SMO2 M40XX DASR New development 0043.2897 on request
  • On the notes

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised compact air handling unit RLT 2300 MV4523H Mode 3 - - -
Centralised compact air handling unit RLT 2300 MV4523H Mode 4 - - -
Centralised compact air handling unit RLT 2300 MV4523H Mode 5 - - -

Product description

Productdescription

VKM-MV4523-H-DA

short description

Motorised shutters for RLT central air handling units with heat recovery. Suitable for RLT 2300 MV4523H. Order necessary with RLT central air handling unit.

Product description

  • Outside air or outgoing air shutter in aluminium housing with gear drive and counter-rotating, plastic-mounted aluminium profile blades with sealing lip, tightness class 2 in accordance with DIN EN 1751.
  • Shutter drive and gears positioned outside the air flow, making it suitable for increased hygiene requirements in accordance with VDI 6022.
  • The shutter is mounted outside the device frame and the servomotor is connected electrically.
  • Square design. Adapter plate for round duct connection is mounted on the duct connection side.
  • Connection size according to technical data.
  • Optional with emergency position function, see SMO2 servomotor.

Table of contents

Wiring diagram

VKM-MV4523-H-DA - Wiring diagram
