For RLT

Weather protection roof for the RLT air handling unit

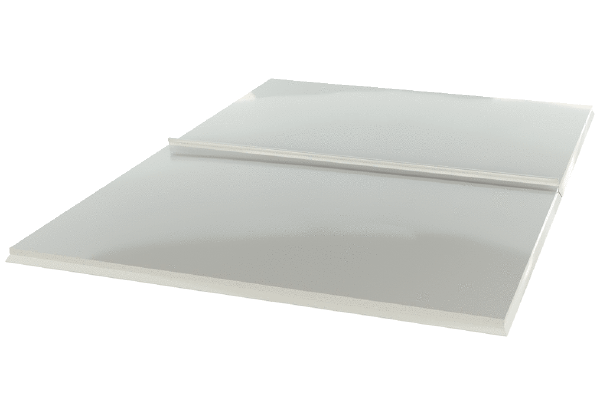

For RLT IM0022375.PNG Weather protection roof for the RLT air handling unit
Back

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

Article RD-MV4512-H-RF RD-MV4516-H-RF RD-MV4523-H-RF RD-MV4540-H-RF RD-MV4555-H-RF RD-MV4512-V-RF RD-MV4516-V-RF RD-MV4523-V-RF RD-MV4540-V-RF RD-MV4555-V-RF
  Product details Product details Product details Product details Product details Product details Product details Product details Product details Product details
Notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Article

RD-MV4512-H-RF

Rain cover as weather protection for the RLT 1200 MV4512H. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4516-H-RF

Rain cover as weather protection for the RLT 1600 MV4516H. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4523-H-RF

Rain cover as weather protection for the RLT 2300 MV4523H. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4540-H-RF

Rain cover as weather protection for the RLT 4000 MV4540H. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4555-H-RF

Rain cover as weather protection for the RLT 5500 MV4555H. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4512-V-RF

Rain cover as weather protection for the RLT 1200 MV4512V. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4516-V-RF

Rain cover as weather protection for the RLT 1600 MV4516V. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4523-V-RF

Rain cover as weather protection for the RLT 2300 MV4523V. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4540-V-RF

Rain cover as weather protection for the RLT 4000 MV4540V. Order necessary with RLT central air handling unit.
  • On the notes

RD-MV4555-V-RF

Rain cover as weather protection for the RLT 5500 MV4555V. Order necessary with RLT central air handling unit.
  • On the notes
Article RD-MV4512-H-RF RD-MV4516-H-RF RD-MV4523-H-RF RD-MV4540-H-RF RD-MV4555-H-RF RD-MV4512-V-RF RD-MV4516-V-RF RD-MV4523-V-RF RD-MV4540-V-RF RD-MV4555-V-RF
Product details Product details Product details Product details Product details Product details Product details Product details Product details Product details
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Product type Weather protection roof Weather protection roof Weather protection roof Weather protection roof Weather protection roof Weather protection roof Weather protection roof Weather protection roof Weather protection roof Weather protection roof
Article number: 0043.2695 0043.2697 0043.2699 0043.2701 0043.2703 0043.2696 0043.2698 0043.2700 0043.2702 0043.2704
Model

for horizontal unit series

for horizontal unit series

for horizontal unit series

for horizontal unit series

for horizontal unit series

for vertical unit series

for vertical unit series

for vertical unit series

for vertical unit series

for vertical unit series
Installation site

outer

outer

outer

outer

outer

outer

outer

outer

outer

outer
Material

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised

Sheet steel, galvanised
Colour

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047

white similar to RAL 7047
Weight

26 kg

26 kg

32 kg

46 kg

54 kg

12 kg

13 kg

17 kg

30 kg

41 kg
Weight including packaging

30,7 kg

30,7 kg

40,5 kg

55,1 kg

64,2 kg

30,7 kg

30,7 kg

40,5 kg

55,1 kg

64,2 kg
Width

2.190 mm

2.250 mm

2.395 mm

2.980 mm

3.240 mm

2.190 mm

2.250 mm

2.395 mm

2.980 mm

3.240 mm
Height

103 mm

103 mm

103 mm

103 mm

103 mm

103 mm

103 mm

103 mm

103 mm

103 mm
Depth

1.230 mm

1.230 mm

1.430 mm

1.630 mm

1.750 mm

600 mm

600 mm

730 mm

1.050 mm

1.334 mm
Width with packaging

1.270 mm

1.300 mm

1.373 mm

1.150 mm

1.277 mm

927 mm

745 mm

885 mm

1.375 mm

1.375 mm
Height with packaging

341 mm

341 mm

341 mm

341 mm

341 mm

341 mm

341 mm

341 mm

341 mm

341 mm
Depth with packaging

1.379 mm

1.379 mm

1.579 mm

1.779 mm

1.899 mm

749 mm

955 mm

879 mm

1.195 mm

1.478 mm
Packing unit

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece

1 piece
Range

X

X

X

X

X

X

X

X

X

X
GTIN (EAN)

4012799985853

4012799985877

4012799985891

4012799985914

4012799985938

4012799985860

4012799985884

4012799985907

4012799985921

4012799985945

* Blue markings show the differences between the products.
