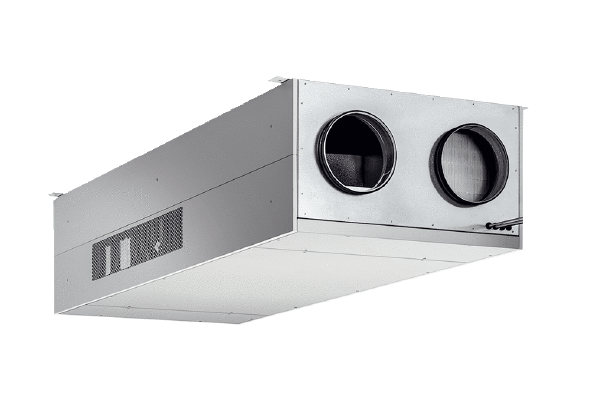

geniovent.x 900 F R-E

With enthalpy heat exchanger

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

Article	geniovent.x 900 F R-E-SO	geniovent.x 900 F R-E-SU	geniovent.x 900 F R-E-SO-K	geniovent.x 900 F R-E-SU-K
	Product details	Product details	Product details	Product details
Notes

Article

geniovent.x 900 F R-E-SO

Decentralised RLT air handling unit with very good heat recovery. With enthalpy heat exchanger, outside and outgoing air connections on right, air outlet at top, CO2 sensor integrated in unit. With app for mobile unit control system

geniovent.x 900 F R-E-SU

Decentralised RLT air handling unit with very good heat recovery. With enthalpy heat exchanger, outside and outgoing air connections on right, air outlet at bottom, CO2 sensor integrated in unit. With app for mobile unit control system

geniovent.x 900 F R-E-SO-K

Decentralised RLT air handling unit with very good heat recovery. With enthalpy heat exchanger, outside air and outgoing air connections on right, duct-guided, air outlet at top without coated panels (3x2), CO2 sensor integrated in unit. With app for mobile unit control system

geniovent.x 900 F R-E-SU-K

Decentralised RLT air handling unit with very good heat recovery. With enthalpy heat exchanger, outside air and outgoing air connections on right, duct-guided, air outlet at bottom without coated panels (3x2), CO2 sensor integrated in unit. With app for mobile unit control system

Article	geniovent.x 900 F R-E-SO	geniovent.x 900 F R-E-SU	geniovent.x 900 F R-E-SO-K	geniovent.x 900 F R-E-SU-K
	Product details	Product details	Product details	Product details

Product type	Decentralised ventilation unit with heat recovery	Decentralised ventilation unit with heat recovery	Decentralised ventilation unit with heat recovery	Decentralised ventilation unit with heat recovery
Article number:	0041.0264	0041.0265	0041.0266	0041.0267
Air flow volume	200 m³/h / 830 m³/h	200 m³/h / 830 m³/h	200 m³/h / 830 m³/h	200 m³/h / 830 m³/h
SFP value	0,29 W/(m³/h)	0,29 W/(m³/h)	0,29 W/(m³/h)	0,29 W/(m³/h)
Type of voltage	Alternating current	Alternating current	Alternating current	Alternating current
Rated voltage	230 V	230 V	230 V	230 V
Frequency	50 Hz	50 Hz	50 Hz	50 Hz
Nominal output	186 W	186 W	186 W	186 W
Stand-by power consumption	< 1 W	< 1 W	< 1 W	< 1 W
I_max	15 A	15 A	15 A	15 A
Degree of protection	IP 40	IP 40	IP 40	IP 40
Installation site	Inside	Inside	Inside	Inside
Material	Sheet steel, galvanised	Sheet steel, galvanised	Sheet steel, galvanised	Sheet steel, galvanised
Housing material	Sheet steel, galvanised	Sheet steel, galvanised	Sheet steel, galvanised	Sheet steel, galvanised
Heat exchanger material	Synthetic material	Synthetic material	Synthetic material	Synthetic material
Inner coating material	Melamine resin foam with fleece	Melamine resin foam with fleece	Melamine resin foam with fleece	Melamine resin foam with fleece
Colour	Pure white, similar to RAL 9010	Pure white, similar to RAL 9010	Pure white, similar to RAL 9010	Pure white, similar to RAL 9010
Weight	200 kg	200 kg	200 kg	200 kg
Weight including packaging	250 kg	250 kg	250 kg	250 kg
Filter class	ISO ePM1 50-65% (F7) / ISO ePM10 60% (M5)	ISO ePM1 50-65% (F7) / ISO ePM10 60% (M5)	ISO ePM1 50-65% (F7) / ISO ePM10 60% (M5)	ISO ePM1 50-65% (F7) / ISO ePM10 60% (M5)
Connection diameter	250 mm	250 mm	250 mm	250 mm
Connection diameter of condensation drain	7 mm (inside), 10 mm (outside)	7 mm (inside), 10 mm (outside)	7 mm (inside), 10 mm (outside)	7 mm (inside), 10 mm (outside)
Width	2.115 mm	2.115 mm	2.100 mm	2.100 mm
Height	482 mm	482 mm	482 mm	482 mm
Depth	831 mm	831 mm	800 mm	800 mm
Width with packaging	2.250 mm	2.250 mm	2.250 mm	2.250 mm
Height with packaging	950 mm	950 mm	950 mm	950 mm
Depth with packaging	950 mm	950 mm	950 mm	950 mm
Degree of heat provision	80,2 %	80,2 %	80,2 %	80,2 %
Heat exchanger construction type	Enthalpy	Enthalpy	Enthalpy	Enthalpy
Humidity recovery with enthalpy heat exchanger in accordance with DIN EN 13141-7 (A2)	69 %	69 %	69 %	69 %
Bypass	Yes	Yes	Yes	Yes
Frost protection	optional	optional	optional	optional
Supplementary heating	optional	optional	optional	optional
Enthalpy heat exchanger	Yes	Yes	Yes	Yes
Antifreeze circuit	Yes	Yes	Yes	Yes
Filter monitoring	with time control	with time control	with time control	with time control
CO₂ regulation (optional)	integrated	integrated	integrated	integrated
Smoke gas switch	optional	optional	optional	optional
Air quality control (optional)	VOC sensor for geniovent.x	VOC sensor for geniovent.x	VOC sensor for geniovent.x	VOC sensor for geniovent.x
Outside air shutters, automatic closing	integrated	integrated	integrated	integrated
Presence sensor	PIR motion sensor, optional	PIR motion sensor, optional	PIR motion sensor, optional	PIR motion sensor, optional
KNX connection (optional)	K-SM	K-SM	K-SM	K-SM
MODBUS interface	integrated	integrated	integrated	integrated
BACnet interface	integrated	integrated	integrated	integrated
Ethernet interface	integrated	integrated	integrated	integrated
Control unit included in scope of delivery.	RB-ZF4	RB-ZF4	RB-ZF4	RB-ZF4
Control unit (optional)	RLS T1 SYS	RLS T1 SYS	RLS T1 SYS	RLS T1 SYS
EnOcean wireless integration (optional)	E-SM	E-SM	E-SM	E-SM
Sound pressure level	35 dB(A) / at 0.7 * Vmax and 20 Pa pressure loss each OSA and OGA, with a room attenuation of approx. 16 dB	35 dB(A) / at 0.7 * Vmax and 20 Pa pressure loss each OSA and OGA, with a room attenuation of approx. 16 dB	35 dB(A) / at 0.7 * Vmax and 20 Pa pressure loss each OSA and OGA, with a room attenuation of approx. 16 dB	35 dB(A) / at 0.7 * Vmax and 20 Pa pressure loss each OSA and OGA, with a room attenuation of approx. 16 dB
Packing unit	1 piece	1 piece	1 piece	1 piece
Range	X	X	X	X
GTIN (EAN)	4012799412649	4012799412656	4012799412663	4012799412670

* Blue markings show the differences between the products.
