MK, BK

Electric shutters to protect against the weather and prevent cold air entry, for ventilation and air extraction, DN 200 to DN 315

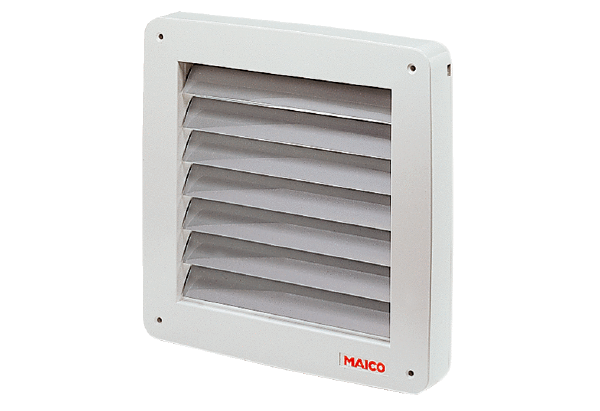

MK, BK IM0017382.PNG Electric shutters to protect against the weather and prevent cold air entry, for ventilation and air extraction, DN 200 to DN 315

Below you can see a direct comparison of the products you have selected. Differences between the products are highlighted in blue.

ArticleMK 20MK 25MK 31BK 20BK 25BK 31
ProduktdetailsProduktdetailsProduktdetailsProduktdetailsProduktdetailsProduktdetails
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
  • On the notes
Product type Shutter, electric Shutter, electric Shutter, electric Shutter, electric Shutter, electric Shutter, electric
Article number: 0093.0906 0093.0907 0093.0908 0093.0900 0093.0901 0093.0902
Loss of pressure11 Pa11 Pa11 Pa11 Pa11 Pa11 Pa
Type of voltageAlternating currentAlternating currentAlternating currentAlternating currentAlternating currentAlternating current
Rated voltage230 V230 V230 V230 V230 V230 V
Frequency50 Hz50 Hz50 Hz50 Hz/60 Hz50 Hz/60 Hz50 Hz/60 Hz
Nominal output3 W3 W3 W25 W25 W25 W
Inom0,015 A0,015 A0,015 A0,1 A0,1 A0,1 A
Maximum load0,015 A0,015 A0,015 Anot specifiednot specifiednot specified
Degree of protectionIP 55IP 55IP 55IP 55IP 55IP 55
DriveGearGearGearBimetalBimetalBimetal
Installationoutsideoutsideoutsideoutsideoutsideoutside
Installation siteWallWallWallWallWallWall
Installation positionverticalverticalverticalverticalverticalvertical
MaterialSynthetic materialSynthetic materialSynthetic materialSynthetic materialSynthetic materialSynthetic material
ColourTraffic white, similar to RAL 9016Traffic white, similar to RAL 9016Traffic white, similar to RAL 9016Traffic white, similar to RAL 9016Traffic white, similar to RAL 9016Traffic white, similar to RAL 9016
Lamella colourSilver greySilver greySilver greySilver greySilver greySilver grey
Weight1,2 kg1,5 kg1,9 kg1,1 kg1,4 kg1,9 kg
Type of shutterelectricalelectricalelectricalelectricalelectricalelectrical
Suitable for nominal size200 mm250 mm315 mm200 mm250 mm315 mm
Width325 mm370 mm430 mm325 mm370 mm430 mm
Height325 mm370 mm430 mm325 mm370 mm430 mm
Depth50,5 mm50,5 mm50,5 mm50,5 mm50,5 mm50,5 mm
Ambient temperature40 °C40 °C40 °C40 °C40 °C40 °C
Packing unit1 piece1 piece1 piece1 piece1 piece1 piece
RangeCCCCCC
GTIN (EAN)401279993906140127999390784012799939085401279993900940127999390164012799939023
Imaxnot specifiednot specifiednot specified1,8 A1,8 A1,8 A
Starting currentnot specifiednot specifiednot specified1,8 A / 1 s1,8 A / 1 s1,8 A / 1 s

* Blue markings show the differences between the products.
