Exhaust air valve
DAE 125 E

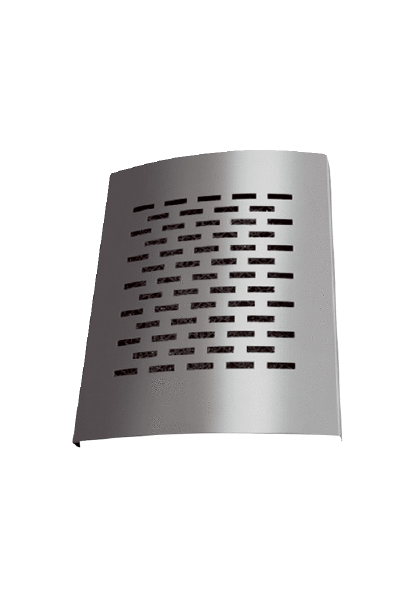

New developmentExhaust air element 125 brushed stainless steel with integrated expanded metal filter and air volume damper
Product data sheet

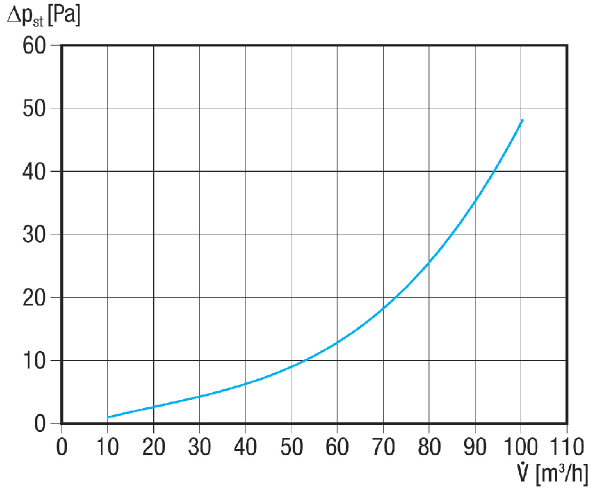

Characteristic curve

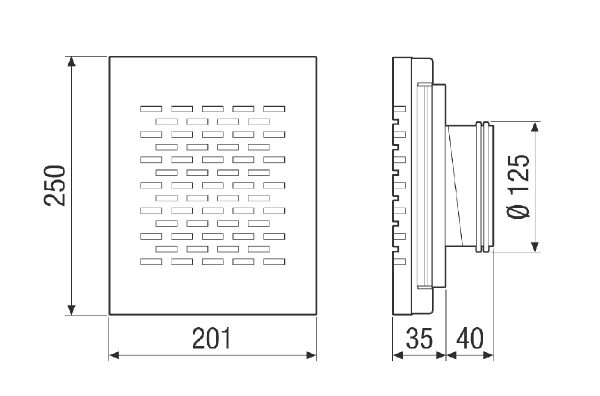

Dimensioned drawing
DAE 125 E - Dimensioned drawing [mm]
Technical data
DAE 125 E - Technical data
Accessories / Accessories of
DAE 125 E - Accessories / Accessories of
Specific accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Air filter, replacement | EDAE-125 New development | 0043.1772 | on request |
is a general accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Centralised compact air handling unit | RLT | - | - | - |
Product description
Productdescription
DAE 125 E
short description
Exhaust air element 125 brushed stainless steel with integrated expanded metal filter and air volume damperProduct description
- Exhaust air elements with integrated expanded metal filter and air volume damper.
- For use in residential ventilation systems in accordance with DIN 1946 Part 6. Attractive cover made from high-quality brushed stainless steel or stainless steel white, powder coated.
- Extremely flat housing for surface mounting with rear connection piece with double lip seal, suitable for spiral duct connection. Mounting on wall or ceiling with 4 screws and wall anchors included.
- Concealed filter cassette made of aluminium mesh for grease separation, easy to remove and easy to clean, e.g. in the dishwasher.
- Integrated, lockable adjustment throttle for continuously variable regulation of the air flow.
Wiring diagram
DAE 125 E - Wiring diagram
Downloads / Videos
DAE 125 E - Downloads / Videos
Predecessor - successor
