Small room fan

ECA 100 VZ

No longer available for delivery
Article number: 0084.0001
Manufacturer: MAICO
With fixed internal grille and time delay switch
Application examples: Bathroom, WC, Storage room, Larder, Cellar
Product data sheet
ECA 100 VZ IM0009950.PNG With fixed internal grille and time delay switch
ECA 100 VZ IM0007250.PNG With fixed internal grille and time delay switch

Characteristic curve

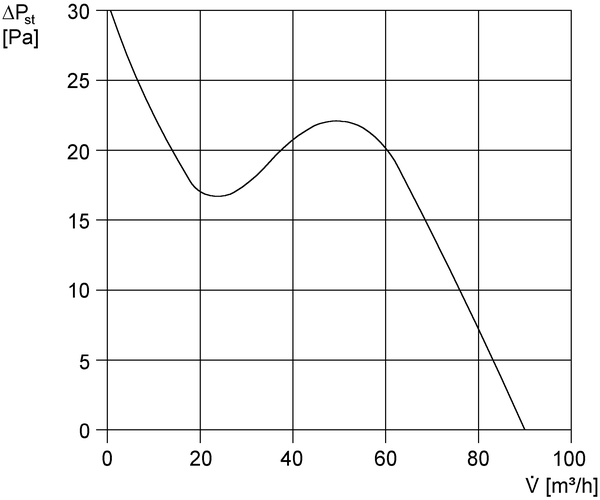

ECA 100 VZ - Characteristic curve

V = 230 or 24 V

f = 50 Hz

n = 2650 min-1

Dimensioned drawing

ECA 100 VZ - Dimensioned drawing [mm]

  1. Cable entry

Technical data

ECA 100 VZ - Technical data

Article ECA 100 VZ
Model Time delay switch
Air flow volume 90 m³/h
Rotating speed 2.650 1/min
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Power consumption 13 W
Imax 0,1 A
Degree of protection IP 45
Mains cable 5 x 1,5 mm²
Installation site Wall
Type of installation Surface-mounted
Installation position any
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 0,763
Weight including packaging 0,74 kg
Nominal size 100 mm
Width with packaging 155 mm
Height with packaging 120 mm
Depth with packaging 155 mm
Sound pressure level 33 dB(A) / Distance 3 m, Free-field conditions
Packing unit 1 piece
Range A
GTIN (EAN) 4012799840015
Article number 0084.0001

Accessories / Spare parts

ECA 100 VZ - Accessories / Spare parts

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Shutter AP 100 0059.1058 on request
  • On the notes
Shutter AP 100 B 0059.0957 on request
  • On the notes
Fly screen FG 100 0093.0922 on request
  • On the notes
External grille SG 100 0059.1054 on request
  • On the notes
External grille SG 100 B 0059.0958 on request
  • On the notes
Wall sleeve WH 100 0059.1030 on request
  • On the notes
Mounting plate ZM 11 0059.0696 on request
  • On the notes
Window installation kit FE 100 AP 0093.1024 on request
  • On the notes
Window installation kit FE 100 SG 0093.1023 on request
  • On the notes
Radio switch XS 1 No longer available for delivery 0157.0344 on request
  • On the notes
Radio receiver XE 1 No longer available for delivery 0157.0343 on request
  • On the notes
Spacer ECA-AH No longer available for delivery 0092.0486 on request
  • On the notes

General accessories

Spare parts

Product type Name Art. No. Price*(EUR) Action
Cover ABD ECA 100 1 E059.1002.9001 on request
  • On the notes
Circuit board PL ECA 100/120 VZ E101.1254.0000 on request
  • On the notes

Product description

Productdescription

ECA 100 VZ

short description

With fixed internal grille and time delay switch

Product description

Model with time delay switch

  • Start delay approx. 50 sec.
  • Overrun time approx. 6 min.
  • Not speed-controllable.

Features

  • High air volume in spite of compact size.
  • Combines large air volumes with high pressure.
  • Thermal overload protection.
  • Housing made of impact resistant plastic material.
  • Protection class II.
  • With VDE GS symbol.
  • With protective seals to stop ingress of condensation for ceiling installations.
  • Optional speed control for standard ECA fan models.

Motor

  • Robust motor with ball bearings, maintenance-free.
  • Suitable for continuous operation.

Mounting instructions

  • Easy and quick cover dismantling.
  • The fan can be fastened quickly in the duct by the two spring-clamps.

Electrical connection

  • Electrical connection can be either surface- or recessed-mounted.

Safety instructions

  • ECA 100 Can be used in protection area 2 in accordance with DIN VDE 0100-701.
  • For details, please refer to the planning instructions.

Table of contents

Wiring diagram

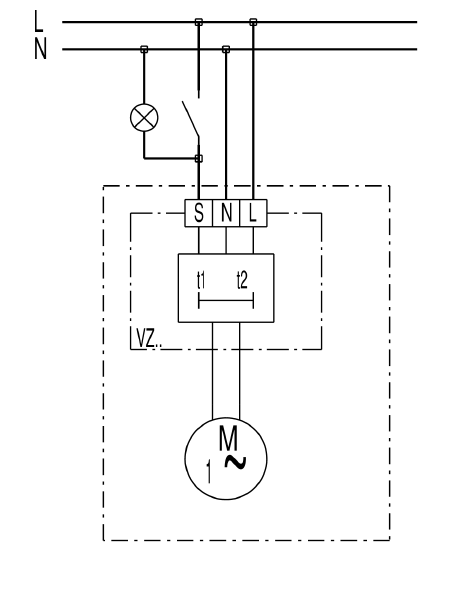

ECA 100 VZ - Wiring diagram



Predecessor - successor

ECA 100 VZ - Successor

Product type Name Art. No. Action
Small room fan ECA 100 ipro VZC 0084.0201
