Small room fan

ECA 120 24 V

Article number: 0084.0019
Manufacturer: MAICO
With fixed internal grille for safety extra low voltage
Application examples: Bathroom, WC, Storage room, Larder, Cellar
ECA 120 24 V IM0009950.PNG With fixed internal grille for safety extra low voltage
ECA 120 24 V IM0007252.PNG With fixed internal grille for safety extra low voltage

Characteristic curve

ECA 120 24 V - Characteristic curve

  • ECA 120 24 V IM0002289.PNG With fixed internal grille for safety extra low voltage

V = 230 or 24 V

f = 50 Hz

n = 2600 min-1

Dimensioned drawing

ECA 120 24 V - Dimensioned drawing [mm]

  • ECA 120 24 V IM0007159.PNG With fixed internal grille for safety extra low voltage
  1. Cable entry

Technical data

ECA 120 24 V - Technical data

Article ECA 120 24 V
Model Safety extra-low voltage (SELV)
Air flow volume 170 m³/h
Rotating speed 2.600 1/min
Speed controllable
Reversing capacity
Type of voltage Alternating current
Rated voltage 24 V
Frequency 50 Hz/60 Hz
Power consumption 19 W
Imax 1,2 A
Degree of protection IP 45
Mains cable 3 x 1,5 mm²
Installation site Wall
Type of installation Surface-mounted
Installation position any
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 0,9 kg
Nominal size 120 mm
Width 171 mm
Height 171 mm
Depth 114 mm
Airstream temperature at IMax 40 °C
Sound pressure level 42 dB(A) / Distance 3 m, Free-field conditions
Packing unit 1 piece
Range A
GTIN (EAN) 4012799840190
Article number 0084.0019

Accessories / Spare parts

ECA 120 24 V - Accessories / Spare parts

General accessories

Product typeNameArt. No.Price*(EUR)Action
Roof outletDF---
Roofing tileDP---
Mounting clampBS---
Rain protection grilleRG---
ShutterAP 1200059.0950 on request
  • On the notes
External grilleSG 1200059.0951 on request
  • On the notes
Wall sleeveWH 1200059.1031 on request
  • On the notes
Outside air openingALD 100152.0054 on request
  • On the notes
Outside air openingALD 1250152.0067 on request
  • On the notes
Outside air openingALD 125 VA0152.0068 on request
  • On the notes
Outside air openingALD 1600152.0069 on request
  • On the notes
Outside air openingALD 160 VA0152.0070 on request
  • On the notes
Outside air openingZE 45 F whiteNo longer available for delivery0152.0044 on request
  • On the notes
Door ventilation grilleMLK 30 white0151.0123 on request
  • On the notes
Door ventilation grilleMLK 45 white0151.0126 on request
  • On the notes
Flexible aluminium ductAFR 1250055.0091 on request
  • On the notes
Radio switchXS 10157.0344 on request
  • On the notes
Radio receiverXE 10157.0343 on request
  • On the notes
HygrostatHY 2300157.0126 on request
  • On the notes
HygrostatHY 230 I0157.0127 on request
  • On the notes
HygrostatHY 10 APNo longer available for delivery0157.0358 on request
  • On the notes
HygrostatHY 10 UPNo longer available for delivery0157.0357 on request
  • On the notes
Outside air openingALD 10 TNo longer available for delivery0152.0055 on request
  • On the notes

Spare part for

Product typeNameArt. No.Price*(EUR)Action
CoverABD ECA 120 1E059.1010.9000 on request
  • On the notes
Circuit boardPL ECA 100/120E101.1010.9000 on request
  • On the notes

Product description

Productdescription

ECA 120 24 V

short description

With fixed internal grille for safety extra low voltage

Product description

Model with safety extra-low voltage (SELV)

  • Rated voltage 24 V, 50 Hz.
  • Only use with permitted safety isolating transformer (provided by the customer, 230 V/24 V).
  • Can be combined with time delay switch VZ 6, VZ 12 or VZ 24 C (see accessories). Install the time delay switch between switch (230 V) and input side of safety transformer.
  • Not speed-controllable.

Features

  • High air volume in spite of compact size.
  • Combines large air volumes with pressure intensity.
  • Thermal overload protection.
  • Housing made of impact resistant plastic material.
  • Protection class II.
  • With VDE-GS symbol, exception: ECA 120 24 V.
  • With protective seals to stop ingress of condensation for ceiling installations.
  • Optional speed control for standard ECA fan models.
  • Colour: traffic white, similar to RAL 9016.

Motor

  • Robust motor with ball bearings, maintenance-free.
  • Suitable for continuous operation.

Mounting instructions

  • Easy and quick cover dismantling.
  • The fan can be fastened quickly in the duct by the two spring-clamps.

Electrical connection

  • Electrical connection can be either surface- or recessed-mounted.

Safety instructions

  • ECA 120 units with IP 45 degree of protection can be used in protection area 1 in accordance with DIN VDE 0100-701.
  • For details, please refer to the planning instructions.

Special versions

  • Available with adjustable time delay switch as special version on request and at an extra cost.

Table of contents

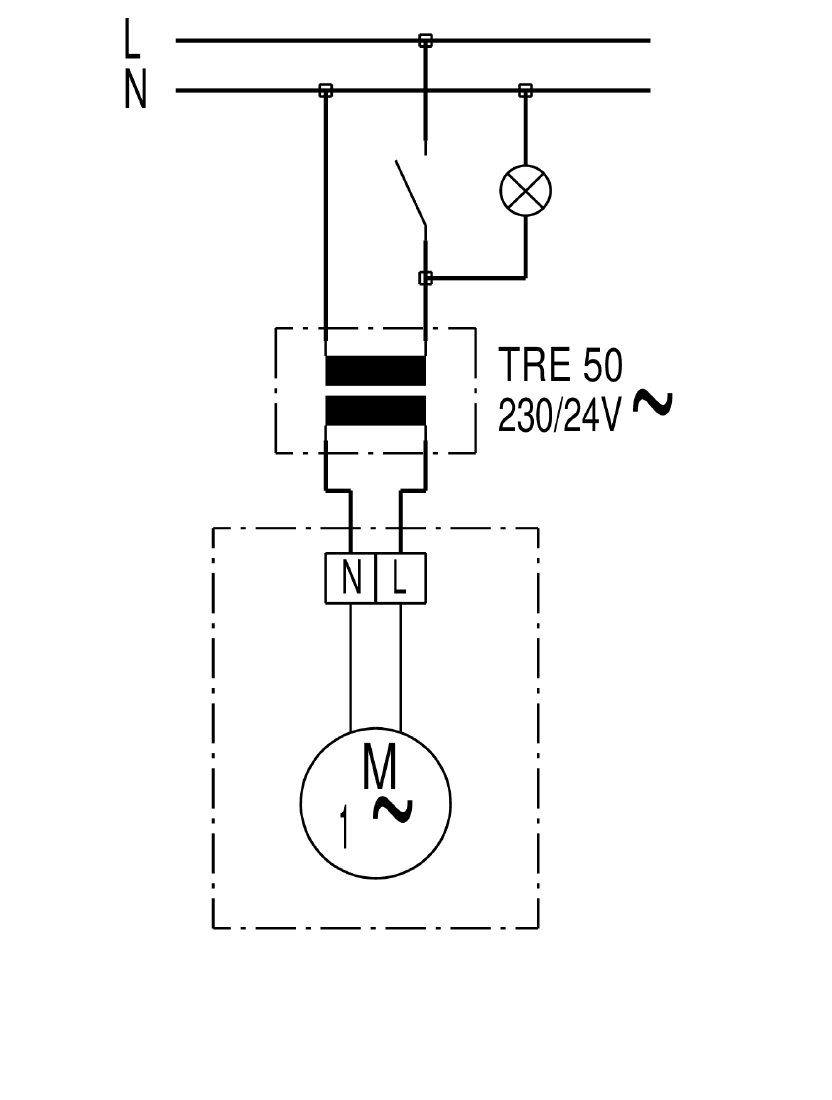

Wiring diagram

ECA 120 24 V - Wiring diagram
