Outgoing air wall connection

KW-FL 20E

Article number: 0152.0083
Manufacturer: MAICO
Outgoing air wall supports, DN 200, colour brushed stainless steel
Application examples: Single-family house, Multiple family unit, New build, Redevelopment
Product data sheet
KW-FL 20E IM0015570.PNG Outgoing air wall supports, DN 200, colour brushed stainless steel

Characteristic curve

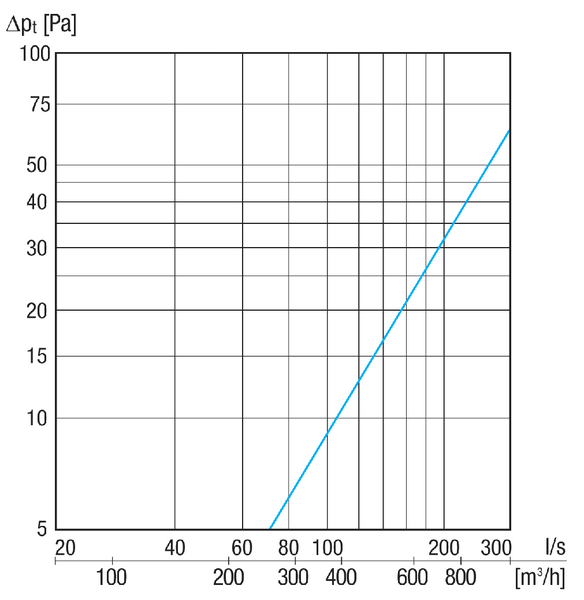

KW-FL 20E - Characteristic curve

Dimensioned drawing

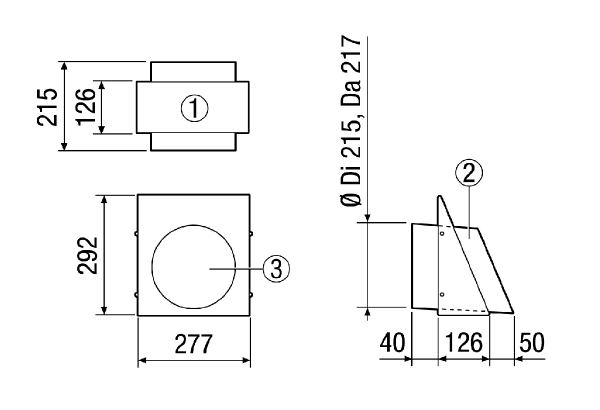

KW-FL 20E - Dimensioned drawing [mm]

  1. View from below
  2. Side view (outgoing air socket)
  3. Front view - outgoing air socket

Technical data

KW-FL 20E - Technical data

Article KW-FL 20E
Air direction Air extraction
Installation site Outside wall
Material Stainless steel (V2A)
Colour Stainless steel, brushed
Weight 2,28 kg
Weight including packaging 2,58 kg
Nominal size 200 mm
Width 280 mm
Height 292 mm
Depth 126 mm
Width with packaging 295 mm
Height with packaging 315 mm
Depth with packaging 245 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799520832
Article number 0152.0083

Accessories of

KW-FL 20E - Accessories of

is a general accessory of

Product description

Productdescription

KW-FL 20E

short description

Outgoing air wall supports, DN 200, colour brushed stainless steel

Product description

  • The attractive stainless steel outgoing air wall supports are fitted on the outside wall of a building and are intended for blowing out outgoing air.
  • The outgoing air is blown out to the front.
  • An outgoing air cowl with condensate drip edge and bird protection grille is included in the scope of delivery.

Table of contents

Wiring diagram

KW-FL 20E - Wiring diagram
