Room air control
RLS 45 K
Room air control as an accessory for the final installation kit, up to 5 ventilation levels adjustable,... more information
Product data sheet
Characteristic curve
Dimensioned drawing
Technical data
RLS 45 K - Technical data
Accessories / Accessories of
RLS 45 K - Accessories / Accessories of
Specific accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Power module | PP 45 LT | 0157.0361 | on request | |
| EnOcean extension module | PP 45 EO | 0157.0362 | on request | |
| Humidity sensor | PP 45 HYI | 0157.0364 | on request | |
| Humidity sensor | PP 45 HY | 0157.0365 | on request | |
| CO2 sensor | PP 45 CO2 | 0157.0366 | on request | |
| VOC sensor | PP 45 VOC | 0157.0367 | on request |
is a special accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Final assembly kit | RV 2 | 0095.0665 | on request | |
| Final assembly kit | PPB 30 K | 0095.0246 | on request | |
| Final assembly kit | PPB 30 O | 0095.0245 | on request | |
| Final assembly kit | PPB 30 RC | 0095.0244 | on request | |
| Final assembly kit | PP 45 K | 0095.0241 | on request | |
| Final assembly kit | PP 45 O | 0095.0240 | on request | |
| Final assembly kit | PP 45 RC | 0095.0242 | on request | |
| Decentralised modular push-pull system | PP+400 New development | 0040.2402 | on request | |
| Decentralised modular push-pull system | PP+600 New development | 0040.2403 | on request | |
| Decentralised modular push-pull system | PP+800 New development | 0040.2404 | on request | |
| Decentralised modular push-pull system | PP+1000 New development | 0040.2405 | on request |
is a general accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Single-room ventilation unit | CPP 60 New development | 0095.0667 | on request |
Product description
Productdescription
short description
Room air control as an accessory for the final installation kit, up to 5 ventilation levels adjustable, programmes: Continuous ventilation with heat recovery, cross-ventilation without heat recovery and sensor-controlled automatic operation, time-limited intensive ventilation, time-limited switch-off, communication with exhaust air units, ModBus (depending on ventilation unit with heat recovery), safety shutdown, configuration with PC/laptop.Product description
Special features
- The control system allows you to select 5 ventilation levels and 3 operating modes: continuous ventilation (with heat recovery), cross-ventilation (without heat recovery) and sensor-controlled automatic operation.
- Continuous ventilation mode with heat recovery: PushPull mode. The units run in alternation and change direction every 60 s.
- Operating mode cross-ventilation : One unit is permanently in supply air mode and the corresponding unit in exhaust air mode (e.g for summer night cooling).
- In automatic operating mode, the air volume is adjusted continuously to the sensor value (HYI, HY, CO2, VOC).
- The RLS 45 K room air control system can be expanded with the internal humidity sensor or with external sensors (humidity, CO2, VOC). The air flow volume is adjusted accordingly and the devices achieve energy efficiency class A+.
- Operation of odd number of units is possible. The volumetric flows are automatically divided according to the number of units.
- The time-limited intensive ventilation (intermittent ventilation) or the time-limited switch-off (falling asleep function) can also be selected at the touch of a button.
- The RLS 45 K room air control system enables communication between exhaust air units (e.g. ECA/ER) and PushPull units. This means that when an exhaust air fan starts up, the PushPull units switch to supply air mode to compensate for the resulting negative pressure. Supply air mode is possible with an overrun of 0, 6 or 15 min. The number of connected devices is also taken into account.
- The control system has a separate 230 V input whose function can be defined in the software. The following functions are available: safety shutdown, falling asleep function, intermittent ventilation, supply air function for exhaust air units with 0 s, 6 min or 15 min overrun.
- ModBus connection is possible.
- In addition, the RLS 45 K room air control system makes it possible to conveniently configure the device using commissioning software on a PC/laptop (Windows).
- Easy, time-saving digital commissioning and creation of digital commissioning protocols and recovery files.
- The RLS 45 K room air control system, in combination with the PP 45 EO EnOcean extension module, offers the unique possibility of connecting the wired PP 45 K and PP 45 O devices with the PP 45 RC wireless devices. This control combination allows f.i. wired units to be installed on the ground floor and wireless units on the first floor. The entire system is controlled at the touch of a button.
- The control system can be extended with further control systems or PP 45 LT power units.
Features
- The room air control is needed as an accessory for the final assembly kits PP 45 K, PP 45, PPB 30 K, PPB 30 O, or RV 2.
- For the PP 45 RC device series, the wired control RLS 45 K can be used as an alternative to the DS 45 RC radio switch. In this case, the combination of RLS 45 K with the PP 45 EO EnOcean extension module is necessary.
- Up to 6 fans can be controlled simultaneously via an RLS 45 K room air control system, e.g. 6 x PP 45 units or 4 x PP 45 units + 1 x PPB 30 or up to 3 x PPB 30 units.
- Up to 8 RV 2 ventilation units can be controlled simultaneously via an RLS 45 K room air control system.
- Further combination options can be found in the respective installation instructions.
Wiring diagram
RLS 45 K - Wiring diagram
RLS 45 K - PushPull 45 comfort room air control
PP 45 K - PushPull 45 comfort fan unit
Fan 1.1 - fan unit 1, unit pair 1
Fan 2.1 - fan unit 2, unit pair 1
Fan 1.2 - fan unit 1, unit pair 2
Fan 2.2 - fan unit 2, unit pair 2
Fan 1.3 - fan unit 1, unit pair 3
Fan 2.3 - fan unit 2, unit pair 3
S1 - Button/switch for additional function (sleep, intensive, disbalance, safety function)
UP-L -Recessed-mounted distributor connection for fan units, connection of all fan units in star shape to distributor
W-F1 - Fan 1 control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. length to distributor 4m.
W-F2 - Fan 2 control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. length to distributor 4m.
W1.X - Fan unit control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length from UP-L distributor to PP 45 ventilation unit = 25m.
W2.X - Fan unit control cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length from UP-L distributor to PP 45 ventilation unit = 25m.
W3 - Bus (RS-485) connection cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length to the sensors, RLS, LT and EnOcean module approx. 100m. Alternatively, this connection can also be used as a ModBus RTU interface.

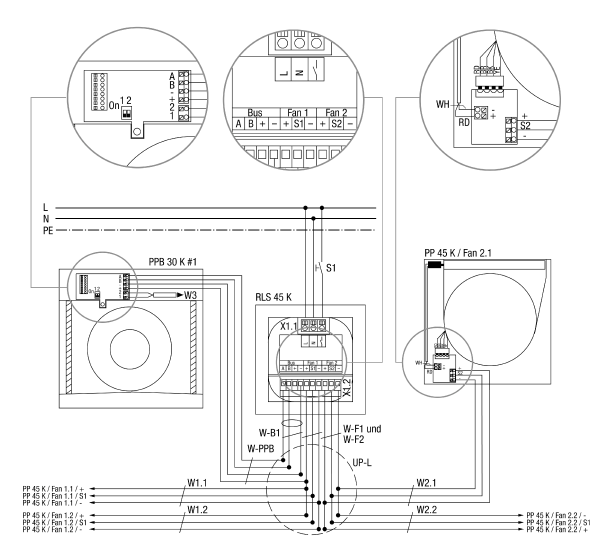

RLS 45 K - PushPull 45 Comfort room air control
PP 45 K - Final assembly kit
PPB 30 K - Final assembly kit
Fan 1.1 – Fan unit 1, device pair 1
Fan 2.1 – Fan unit 2, device pair 1
Fan 1.2 – Fan unit 1, device pair 2
Fan 2.2 – Fan unit 2, device pair 2
S1 – Switch/button additional functions (sleep mode, intensive mode, imbalance mode, safety mode)
UP-L – UP distributor for fan units, connection of all fan units to the distributor in a star configuration
W-F1 – Fan 1 control cable, recommended cable type: J-Y(ST)Y 2x2x0.8 mm. Maximum length to the distributor: 4 m.
W-F2 – Control cable for fan 2, recommended cable: J-Y(ST)Y 2x2x0.8 mm. Maximum length to the distributor: 4 m.
W-B1 – Control cable for PPB bus; recommended cable: J-Y(ST)Y 2x2x0.8 mm. Maximum length to the distributor: 4 m.
W1.X – Control cable for fan unit; recommended cable: J-Y(ST)Y 2x2x0.8 mm. Maximum cable length from the UP-L distributor to the PP 45 fan unit = 25 m.
W2.X – Control cable for fan unit; recommended cable: J-Y(ST)Y 2x2x0.8 mm. Maximum cable length from the UP-L distributor to the PP 45 fan unit = 25 m.
W-PPB – Control cable BBP 30 (bus), recommended control cable J-Y(ST)Y 2x2x0.8 mm. Maximum cable length from the UP-L distributor to the PP 45 fan unit = 25 m.
The terminal Bus (+) is not suitable for connecting ventilation units with a high power consumption. Connection for low-load devices only (e.g. sensors)
W3 – Connection duct for switches/push-buttons to activate special functions (EA mode, intensive ventilation); recommended control cable: LiYY 2×0.5 mm². Maximum cable length: 25 metres.
RLS 45 K - PP 45 Comfort room air control
PP 45 LT - PP 45 power unit
PP 45 EO - PP 45 EnOcean radio module
PP 45 HY - PP 45 humidity sensor for recessed mounting
PP 45 CO2 - PP 45 CO2 sensor for recessed mounting
PP 45 VOC - PP 45 VOC sensor for recessed mounting
Fan 1.1-1.3 - Fan unit 1 and 3 on RLS master
Fan 2.1-2.3 - Fan unit 2 and 4 on RLS master
W-PPB - Fan unit 5 (BBP 30 K) on RLS master connecting cable for bus (RS-485), recommended control cable J-Y(ST)Y 2x2x0.8mm². Max. cable length to the PPB 30 K, 25 metres from the star point
Fan 3 + 4 G1-3 - Fan unit 6,7,8 on RLS slave 1
Fan 5.1-5.3 - Fan unit 9,11,13 on RLS slave 2
Fan 6.1-6.3 - Fan unit 10,12,14 on RLS slave 2
S1 - Button/switch for additional function (sleep, intensive, disbalance, safety function)
UP-B - Recessed-mounted distributor bus, connection of RLS, LT, EO and sensors using RS-485 bus interface
W1.X - Bus (RS-485) connection cable, recommended control cable J-Y(ST)Y 2x2x0.8mm. Max. cable length to the sensors, RLS, LTs and EnOcean module approx. 100 m. Alternatively, this connection can also be used as a ModBus RTU interface.
RLS 45 K - 45 comfort room air control / ModBus interface also available for object variant.

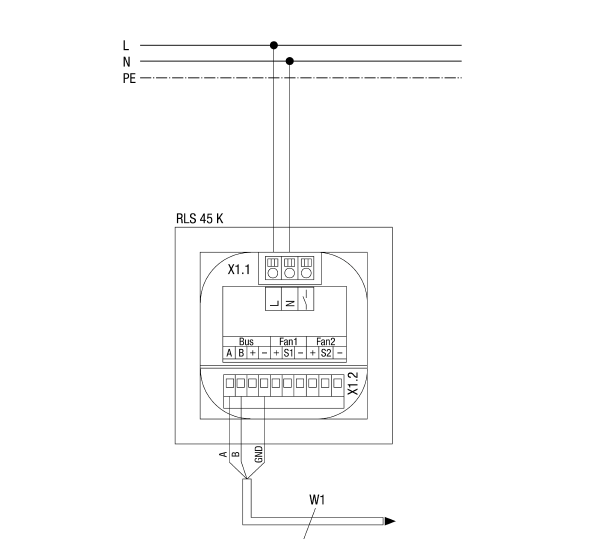

X1.1 - terminal mains connection
X1.2 - connection terminal bus/fan
W1 - GLT (ModBus) connection cable, recommended control cable J-Y (ST) Y 2x2x0.8mm. Max. cable length to gateway approx. 100m. Set parameters and undertake addressing by means of service mode or IBS* (commissioning software)
*IBS only in conjunction with the RLS 45 K
Interface info:
ModBus mode: RTU
Baud rate: 9600/19200
Data bits 8
Parity: Even
Stop bits 1
Address: 10 (basic setting)

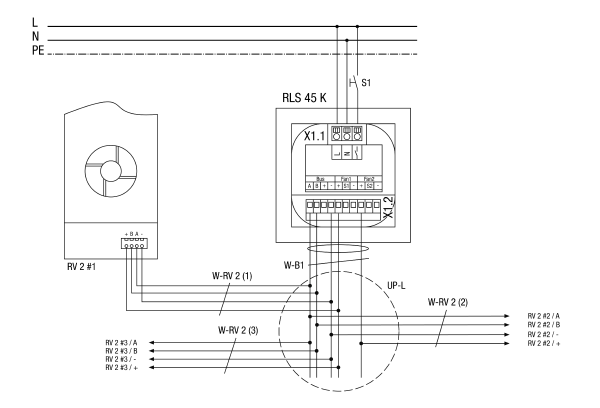

RLS 45 K Final assembly kit
RV 2 #1 PushPull ventilation unit 1
RV 2 #2 PushPull ventilation unit 2
RV 2 #3 PushPull ventilation unit 3
S1 switch/button additional functions (sleep mode, intensive, imbalance and safety functions)
UP-L UP distributor fan units: all fan units connected in a star configuration to the distributor
W-B1 Recommended control cable for RLS 45 K control system to star point/distributor (max. 4 m): Type J-Y(ST)Y 2x2x0.8 mm²
W-RV 2 (X) Recommended control cable for RV 2 ventilation unit up to star point/distributor (max. 25 m): Type LiYY 4x0.5 mm²
Downloads / Videos
RLS 45 K - Downloads / Videos
Predecessor - successor
RLS 45 K - Predecessor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Room air control | RLS PP-K | 0157.0199 |
|
