Ventilation smoke switch centre
LRZ 01

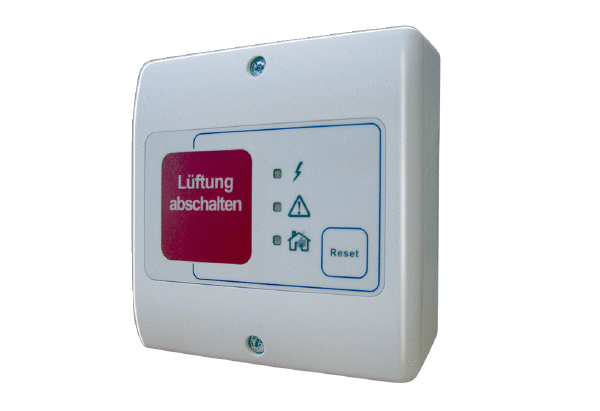

New developmentVentilation smoke switch control centre LRZ-Basis. Connection option for up to 18 smoke switches LRS 01, LRS... more information
Product data sheet
Characteristic curve
Dimensioned drawing
Technical data
LRZ 01 - Technical data
Accessories of
LRZ 01 - Accessories of
is a general accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Ventilation unit | WS 75 | - | - | - |
| Centralised ventilation unit | WS 120 Trio | - | - | - |
| Centralised ventilation unit | WS 160 Flat | - | - | - |
| Centralised ventilation unit | WS 170 maico@home | - | - | - |
| Centralised ventilation unit | WS 300 Flat | - | - | - |
| Centralised ventilation unit | WS 320 | - | - | - |
| Centralised ventilation unit | WS 470 | - | - | - |
| Centralised compact air handling unit | RLT | - | - | - |
| Centralised compact air handling unit, flat | RLT FLAT Mode 3 | - | - | - |
| Centralised compact air handling unit, flat | RLT FLAT Mode 4 | - | - | - |
| Centralised compact air handling unit, flat | RLT FLAT Mode 5 | - | - | - |
Product description
Productdescription
short description
Ventilation smoke switch control centre LRZ-Basis. Connection option for up to 18 smoke switches LRS 01, LRS 03 or ORS 144 K.Product description
Features
- LRZ Basic ventilation smoke switch centralised base
- The ventilation smoke switch control centre (LRZ Basis) is a power supply unit, manual switch, reset button, alarm memory and operating status display all in one unit.
- Suitable for the control system of fire and smoke dampers and for the switch-off of ventilation systems in various applications, from industrial to administrative buildings.
- Output signal: potential-free changeover contact.
Wiring diagram
LRZ 01 - Wiring diagram
Downloads / Videos
LRZ 01 - Downloads / Videos
Predecessor - successor
