Disk valve, metal
TFA 10
Disk valve for exhaust air, sheet steel, white, DN 100, for domestic ventilation max. 30 m³/h, including... more information
Product data sheet

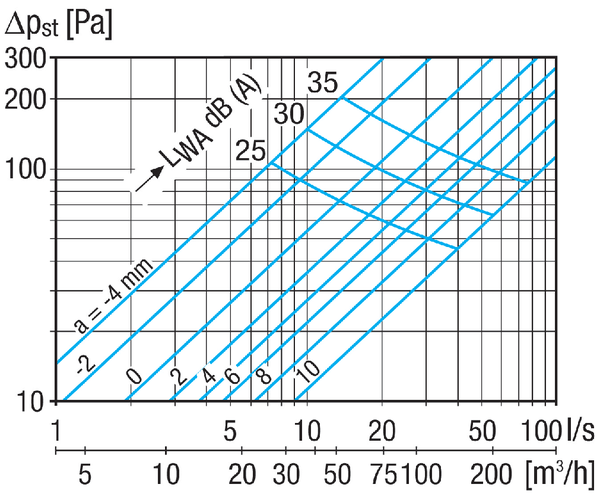

Characteristic curve
Dimensioned drawing

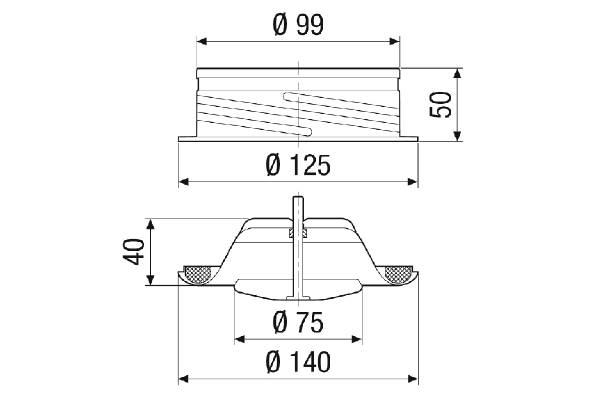

TFA 10 - Dimensioned drawing [mm]
Technical data
TFA 10 - Technical data
Accessories / Accessories of
TFA 10 - Accessories / Accessories of
General accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Ceiling/wall feed-through | DWD 10 New development | 0059.0045 | on request | |
| Grease filter element for exhaust air | FFE 10 | 0092.0506 | on request |
is a general accessory of
Product description
Productdescription
TFA 10
short description
Disk valve for exhaust air, sheet steel, white, DN 100, for domestic ventilation max. 30 m³/h, including installation frame.Product description
- Disk valves for air extraction.
- Elegant, flat design.
- Continuously variable regulation of the air flow by means of a rotating valve disk.
- With bayonet lock for installation frame.
- Installation frame included in the scope of delivery.
- Optional accessories: Grease trap filter element FFE for use in rooms with greasy exhaust air (e.g. kitchens etc.).
Wiring diagram
TFA 10 - Wiring diagram
Downloads / Videos
TFA 10 - Downloads / Videos
Predecessor - successor
TFA 10 - Predecessor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Disk valve, metal | TFA 10 Remaining parts | 0151.0369 |
|
