Disk valve, synthetic material

TK 10

Article number: 0151.0192
Manufacturer: MAICO
Disk valve for supply and exhaust air, plastic, with mounting ring, DN 100 for domestic ventilation, max. 30... more information
TK 10 IM0009750.PNG Disk valve for supply and exhaust air, plastic, with mounting ring, DN 100 for domestic ventilation, max. 30 m³/h

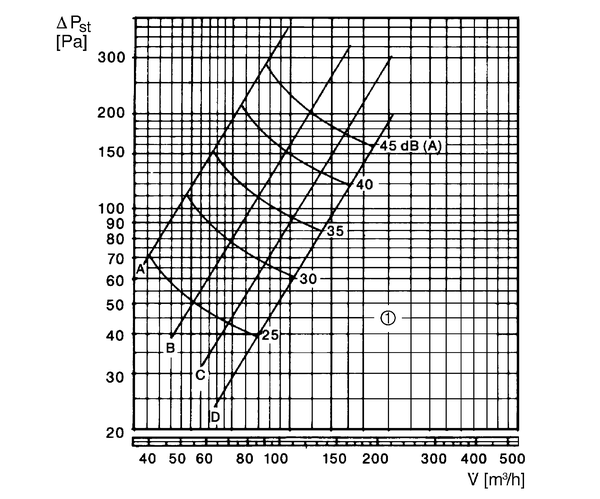

Characteristic curve

TK 10 - Characteristic curve Pressure difference and acoustic data: TK 10

  1. 20 revolutions, 1 mm stroke height per revolution

A: 1/4 open, B: 1/2 open, C: 3/4 open, D: open all the way

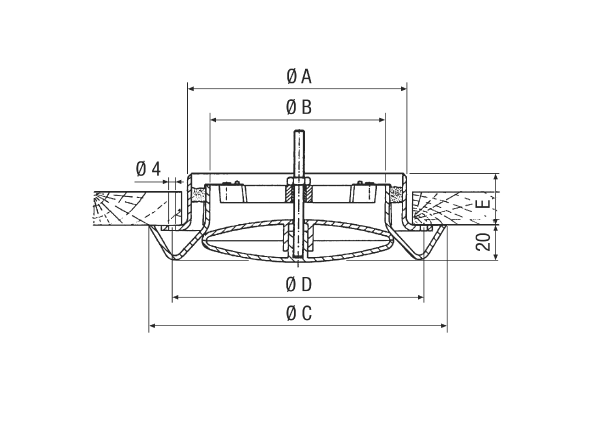

Dimensioned drawing

TK 10 - Dimensioned drawing [mm]

A: 99 mm
B: 80 mm
C: 150 mm
E: 31 mm
F: 119 mm

Technical data

TK 10 - Technical data

Article TK 10
Air direction Ventilation and air extraction
Material Synthetic material, antistatic
Colour Pure white, similar to RAL 9010
Weight 0,1 kg
Suitable for nominal size 100 mm
Width 150 mm
Height 150 mm
Depth 51 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799511922
Article number 0151.0192

Product description

Productdescription

TK 10

short description

Disk valve for supply and exhaust air, plastic, with mounting ring, DN 100 for domestic ventilation, max. 30 m³/h

Product description

  • Disk valves for ventilation and air extraction.
  • Sealed with a foam ring.
  • Linear air flow control via rotatable valve disk.
  • Easy installation with mounting ring and clamping springs.
  • Recommended accessories: FFE grease filter element for use in rooms where the exhaust air contains grease (e.g. kitchens etc.).
