Disk valve, metal

TM 10

Article number: 0151.0194
Manufacturer: MAICO
Disk valve for exhaust air, enamelled white steel sheet, with mounting frame, DN 100, for domestic ventilation... more information
TM 10 IM0009749.PNG Disk valve for exhaust air, enamelled white steel sheet, with mounting frame, DN 100, for domestic ventilation max. 30 m³/h

Characteristic curve

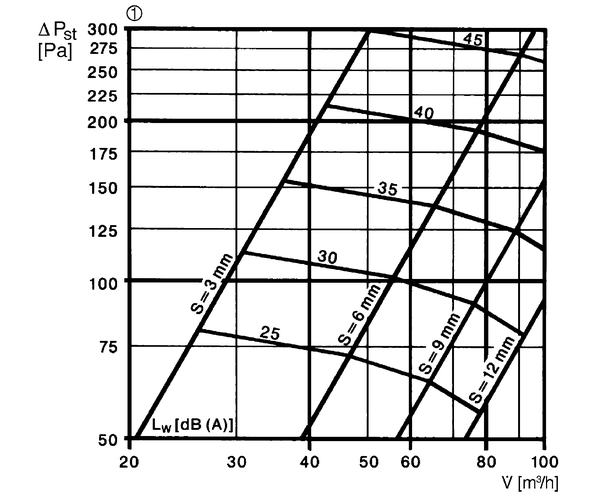

TM 10 - Characteristic curve Pressure difference and acoustic data: TM 10

  1. Valve cone position, S = gap width

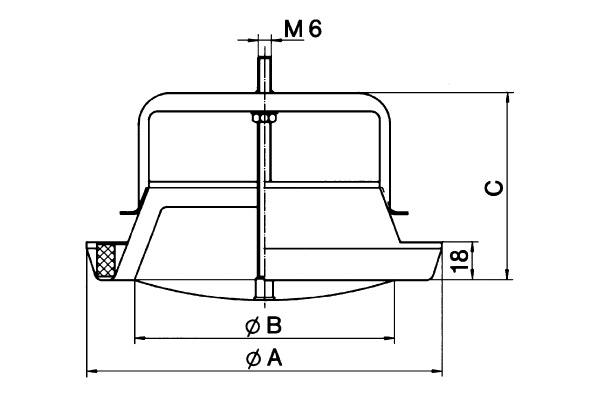

Dimensioned drawing

TM 10 - Dimensioned drawing [mm]

A: 134 mm
B: 87 mm
C: 83 mm

Technical data

TM 10 - Technical data

Article TM 10
Air direction Air extraction
Material Sheet steel, stove-enamelled
Colour Pure white, similar to RAL 9010
Weight 0,4 kg
Suitable for nominal size 100 mm
Width 134 mm
Height 134 mm
Depth 83 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799511946
Article number 0151.0194

Product description

Productdescription

TM 10

short description

Disk valve for exhaust air, enamelled white steel sheet, with mounting frame, DN 100, for domestic ventilation max. 30 m³/h

Product description

  • Disk valves for air extraction.
  • Linear air flow control via rotatable valve disk.
  • Assembly using installation frames.
  • Mounting frames and fan housings are linked using a bayonet closure.
  • Recommended accessories: FFE grease filter element for use in rooms where the exhaust air contains grease (e.g. kitchens etc.).
