Humidity sensor

FSK

New development
Article number: 0043.2923
Humidity and temperature sensor, duct-guided

Product data sheet

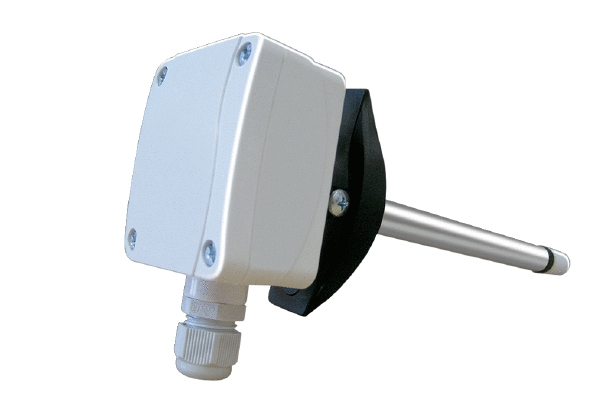

FSK IM0023221.PNG Humidity and temperature sensor, duct-guided
Back
  • On the notes
FSK
HY 230
HY 230 I
APM HY 230
frame APM HY 230

Characteristic curve

Dimensioned drawing

Technical data

FSK - Technical data

Article FSK
Rated voltage 24 V AC
Output 0 - 10 V
Degree of protection IP 65
Relative humidity measurement range 0 % - 100 %
Colour Pure white, similar to RAL 9010
Weight 0,35 kg
Weight including packaging 0,38 kg
Width 72 mm
Height 64 mm
Depth 270 mm
Width with packaging 305 mm
Height with packaging 72 mm
Depth with packaging 105 mm
Ambient temperature -35 °C up to 80 °C
Packing unit 1 piece
Range D
GTIN (EAN) 4012799322290
Article number 0043.2923

Accessories / Accessories of

FSK - Accessories / Accessories of

General accessories

Product type Name Art. No. Price*(EUR) Action
Plug-in power supply STNTZ New development 0043.2931 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised compact air handling unit RLT - - -
Variable volumetric flow controller (VAV) VSR 100 New development 0044.0408 on request
  • On the notes
Variable volumetric flow controller (VAV) VSR 125 New development 0044.0409 on request
  • On the notes
Variable volumetric flow controller (VAV) VSR 160 New development 0044.0410 on request
  • On the notes
Variable volumetric flow controller (VAV) VSR 200 New development 0044.0411 on request
  • On the notes
Variable volumetric flow controller (VAV) VSR 250 New development 0044.0412 on request
  • On the notes
Variable volumetric flow controller (VAV) VSR 315 New development 0044.0413 on request
  • On the notes

Product description

Productdescription

FSK

short description

Humidity and temperature sensor, duct-guided

Product description

Features

  • The FSK is the ideal measuring transducer for demand-controlled ventilation.
  • It measures the moisture content (%), ideally in the exhaust air duct. 0 - 10 V output voltage = 0–100% relative humidity.
