Wall sleeve

W 90

New development
Article number: 0095.0668
Accessories for installation without a shell installation kit. Consisting of a thermally insulated wall sleeve... more information

Product data sheet

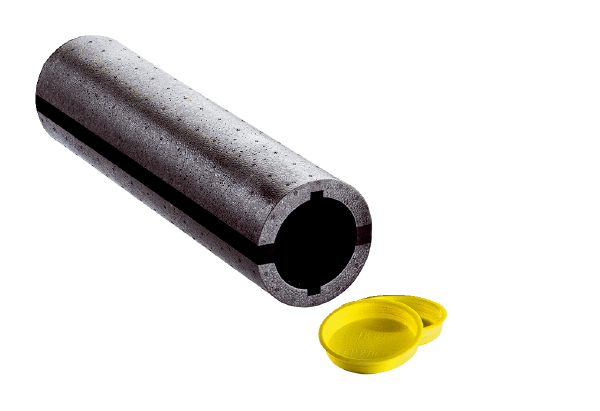

W 90 IM0023980.PNG Accessories for installation without a shell installation kit. Consisting of a thermally insulated wall sleeve with integrated condensate drainage channels (diameter: 125 mm, length: 500 mm) for decentralised ventilation unit with heat recovery CPP 60.
Back
  • On the notes
WW 90
W 90

Characteristic curve

Dimensioned drawing

W 90 - Dimensioned drawing [mm]

Technical data

W 90 - Technical data

Article W 90
Air flow volume 20 m³/h / 70 m³/h
Installation site Outside wall
Colour black (similar to RAL 9005 deep black)
Weight 0,3 kg
Weight including packaging 0,3 kg
Connection diameter 90 mm
Width 125 mm
Height 125 mm
Depth 500 mm
Width with packaging 135 mm
Height with packaging 135 mm
Depth with packaging 510 mm
Packing unit 1 set (2 pieces)
Range K
GTIN (EAN) 4012799956686
Article number 0095.0668

Accessories of

W 90 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Single-room ventilation unit CPP 60 New development 0095.0667 on request
  • On the notes

Product description

Productdescription

W 90

short description

Accessories for installation without a shell installation kit. Consisting of a thermally insulated wall sleeve with integrated condensate drainage channels (diameter: 125 mm, length: 500 mm) for decentralised ventilation unit with heat recovery CPP 60.

Product description

  • Accessories for mounting without a shell installation kit for the CPP 60 decentralised ventilation unit.
  • Installation in the exterior wall with wall thicknesses up to 500 mm.
