Centrifugal duct fan

ERR 12/1 N

No longer available for delivery
Article number: 0080.0866
Manufacturer: MAICO
Centrifugal roof fan, DN 125, low energy consumption, alternating current
Application examples: Machine extraction unit, Workplace air extraction system, Production site, Storage facility, Laboratory
Product data sheet
ERR 12/1 N IM0009883.PNG Centrifugal roof fan, DN 125, low energy consumption, alternating current

Characteristic curve

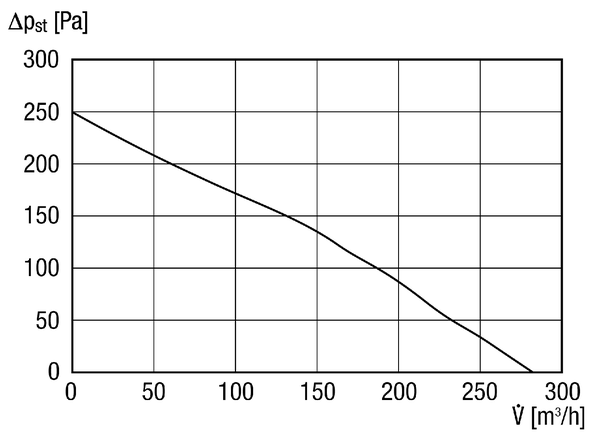

ERR 12/1 N - Characteristic curve

Dimensioned drawing

ERR 12/1 N - Dimensioned drawing [mm]

Technical data

ERR 12/1 N - Technical data

Article ERR 12/1 N
Air flow volume 282 m³/h
Rotating speed 2.473 1/min
Speed controllable
Reversing capacity
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Nominal output 30 W
Imax 0,14 A
Degree of protection IP X4
Insulation class F
Installation position vertical / horizontal
Housing material Sheet steel
Colour powder-coated, similar to RAL 7001
Weight 2,7 kg
Weight including packaging 3,295 kg
Nominal size 125 mm
Width 305 mm
Height 250 mm
Depth 305 mm
Width with packaging 305 mm
Height with packaging 270 mm
Depth with packaging 305 mm
Airstream temperature at IMax -20 °C up to 60 °C
Packing unit 1 piece
Range E
GTIN (EAN) 4012799808664
Article number 0080.0866



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, S5 (dB(A))

35

43

47

51

48

40

26

54

LWA2= housing sound power level in dB.

Accessories

ERR 12/1 N - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Fixing cuff ELR 12 0092.0110 on request
  • On the notes
Mounting foot FUR 10/12/16 0036.0087 on request
  • On the notes

General accessories

Product description

Productdescription

ERR 12/1 N

short description

Centrifugal roof fan, DN 125, low energy consumption, alternating current

Product description

Features

  • Centrifugal impeller with backwards curved blades.
  • Inlet and outlet side connection couplings for direct installation in ventilation ducts.
  • Mounting foot available as accessory.

Air flow direction

  • Airstream and rotational direction are marked by arrows on the terminal box.

Motor

  • External rotor-capacitor motor.
  • Operating capacitor in the terminal box is ready to be connected.
  • Speed controllable.
  • Thermal overload protection as a standard feature.
  • Robust motor with ball bearings, maintenance-free.
  • IP X4 degree of protection when installed in ventilation ducts with at least 1 m ducts on the inlet and outlet sides.

Mounting instructions

  • Can be fitted in any position.
  • Use ELR flexible cuffs to prevent transfer of vibrations onto the duct system.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety instructions

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or outlet. To do this, fit a SGR protective grille.

Table of contents

Wiring diagram

ERR 12/1 N - Wiring diagram

ERH... electric air heater with LW 9 air flow monitor and ST speed controller

K1 - heating release (US16T)

ERR .. / 1 - centrifugal fan

LW 9 - air flow monitor

ETL 16 P - electronic temperature controller

DTL 16 P - electronic temperature controller

FL 30P channel sensor

ST.. STU.., STS.. speed controller

ERH - electric air heater

F1 - temperature limiter

F2 - safety temperature limiter

N - night reduction

  1. Only with DTL 16 P


Centrifugal fan


Centrifugal fan with ST/STU/STS speed controller


Centrifugal fan with TRE 5-step transformer


Duct fan with ERH 16-2 R electric air heater

S1 - system on

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

ERH...R electrical air heater: ERH16-2R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL30P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Duct fan with electric air heater DRH 16-5R and DRH 20-6R

S1 - system on

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH16-2R or DRH20-6R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL30P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Duct fan with DRH 25-9R, DRH 31-12R, DRH 35-12R and DRH 40-12R electric air heaters

S1 - system on

S - sensor

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH 25-9R, DRH 31-12R, DRH 35-12R, DRH 40-12R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL60P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P
