Sound-insulated ventilation box

ESR 31-2 S

No longer available for delivery
Article number: 0080.0621
Manufacturer: MAICO
Sound-insulated ventilation box with swivelling fan, DN 315, alternating current
Application examples: Commercial premises, Showroom, Office, Foreman's office, Changing room
Product data sheet
ESR 31-2 S IM0009647.PNG Sound-insulated ventilation box with swivelling fan, DN 315, alternating current

Characteristic curve

ESR 31-2 S - Characteristic curve

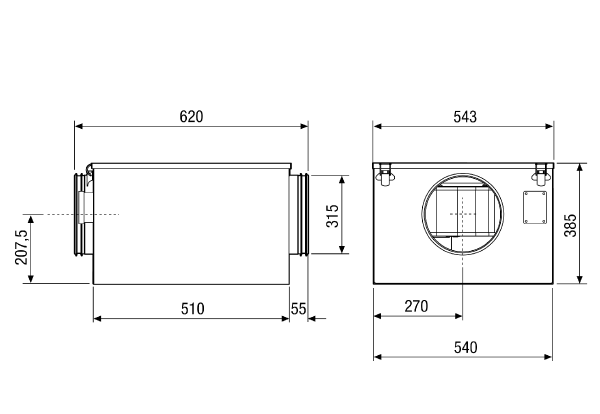

Dimensioned drawing

ESR 31-2 S - Dimensioned drawing [mm]

Technical data

ESR 31-2 S - Technical data

Article ESR 31-2 S
Air flow volume 1.585 m³/h
Rotating speed 2.225 1/min
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Nominal output 520 W
Inom 1,3 A
Imax 2,4 A
Degree of protection IP X4
Housing material Sheet steel, galvanised
Weight 25,4 kg
Weight including packaging 27,5 kg
Swivelling fan
Nominal size 315 mm
Width with packaging 685 mm
Height with packaging 420 mm
Depth with packaging 560 mm
Airstream temperature at nominal current -20 °C up to 40 °C
Airstream temperature at IMax 40 °C
Ambient temperature -20 °C up to 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799990406
Article number 0080.0621



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, S5 (dB(A))

48

57

49

50

51

49

42

60

LWA6, S5 (dB(A))

55

64

73

69

70

63

58

76

LWA2, S5 (dB(A))

46

48

49

39

33

35

28

53

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

ESR 31-2 S - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Sound insulation set KSD-D 0092.0521 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Disk valve, synthetic material TK - - -
Disk valve, metal TM - - -
Disk valve, stainless steel TM-V2A - - -
Disk valve, fire protection TB, WBV - - -
Disk valve, metal TFA - - -
Disk valve, metal TFZ - - -
Mounting frame for TFA/TFZ EBR-D - - -
Automatic backflow preventer AVM 31 0093.0009 on request
  • On the notes
Protective grille SGR 31 0150.0128 on request
  • On the notes
Supply air valve ZWVQ 10 0152.0064 on request
  • On the notes
Supply air valve ZWVQ 12 0152.0065 on request
  • On the notes
Tubular sound absorber RSR 31 Remaining parts 0092.0319 on request
  • On the notes
Tubular sound absorber RSR 31/50 Remaining parts 0092.0329 on request
  • On the notes
Tubular sound absorber RSR 31-1 0092.0599 on request
  • On the notes
Tubular sound absorber RSR 31/50-1 0092.0606 on request
  • On the notes
Electrical air heater DRH 31-6 0082.0108 on request
  • On the notes
Electrical air heater with controller DRH 31-12 R 0082.0146 on request
  • On the notes
Water air heater WRH 31-6 0082.0121 on request
  • On the notes
Air filter TFE 31-4 0149.0080 on request
  • On the notes
Air filter TFE 31-7 0149.0055 on request
  • On the notes
Contactor US 16 T 0157.0769 on request
  • On the notes
5-step transformer TRE 3,3-2 0157.0159 on request
  • On the notes
5-step transformer, control cabinet TRE 3,3 S-2 0157.0163 on request
  • On the notes
5-step switch for TRE...S -2/ TR...S-2 5-step transformers ESS 20 0157.0749 on request
  • On the notes
Temperature control system DTL 16 P 0157.0825 on request
  • On the notes
Channel sensor FL 30 P 0157.0780 on request
  • On the notes
Room sensor FR 30 P 0157.0781 on request
  • On the notes
Air flow monitor LW 9 0157.0779 on request
  • On the notes
Air filter TFE 31-5 No longer available for delivery 0149.0064 on request
  • On the notes
Speed controller ST 2,5 No longer available for delivery 0157.0811 on request
  • On the notes
Speed controller STU 2,5 No longer available for delivery 0157.0815 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes
5-step transformer TRE 3,3-1 No longer available for delivery 0157.0841 on request
  • On the notes
5-step transformer, control cabinet TRE 3,3 S No longer available for delivery 0157.0745 on request
  • On the notes
Temperature control system ETL 16 P No longer available for delivery 0157.0824 on request
  • On the notes

Product description

Productdescription

ESR 31-2 S

short description

Sound-insulated ventilation box with swivelling fan, DN 315, alternating current

Product description

Features

  • Optimised efficiency, low maintenance costs.
  • Removable housing cover with clip-locks.
  • Inlet and outlet side connection couplings for direct installation in ventilation ducts.
  • With sound absorbing rock wool, laminated with silk glass, to meet the increased requirements of especially low noise levels.

Air flow direction

  • The airsteam direction is indicated by an arrow marked on the housing.

Motor

  • External rotor-capacitor motor.
  • Robust motor with ball bearings, maintenance-free.
  • The motor's standard rubber mounting prevents vibrations being transferred to the housing.
  • Temperature classes B or F.
  • IP X4 degree of protection with closed housing cover.

AC motor

  • Thermal overload protection as a standard feature.

Three-phase AC motor

  • Potential-free terminal connections, which must be connected to an MV 25 protective motor switch or the control circuit of a contactor.

Mounting instructions

  • Can be fitted in any position.

Electrical connection

  • Terminal box at front.

Safety instructions

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or outlet. To do this, fit a protective grille.

Table of contents

Wiring diagram

ESR 31-2 S - Wiring diagram



Duct fan with DRH 25-9R, DRH 31-12R, DRH 35-12R and DRH 40-12R electric air heaters

S1 - system on

S - sensor

US16 - all-pole isolating switch (contactor)

ERR... centrifugal duct fan

DRH...R electric air heater: DRH 25-9R, DRH 31-12R, DRH 35-12R, DRH 40-12R

B=Int/ext bridge must be closed

C=Do not change potentiometer setting

D=Setpoint potentiometer for MIN limitation

E=Setpoint potentiometer for MAX limitation

F=Bridge for MAX limitation, bridge must be closed!

G=If bridge is closed, MIN limitation is also active

FR30P - ext. setpoint controller (0-30°C) with room sensor

FL60P - ext. channel sensor for MIN, MAX limitation

LW9 - air flow monitor (in position N)

Installation of LW9 sensor on incoming side of air heater

0-30°C setpoint setting and recording of room temperature with FR30P

0-60°C min/max limitation in supply air channel with FL60P



Predecessor - successor

ESR 31-2 S - Predecessor

Product type Name Art. No. Action
Sound-insulated ventilation box ESR 31 S No longer available for delivery 0080.0231
  • On the notes

ESR 31-2 S - Successor

Product type Name Art. No. Action
Sound-insulated ventilation box ESR 31-2 No longer available for delivery 0080.0614
  • On the notes
Sound-insulated ventilation box ESR 31-2 No longer available for delivery 0080.0060
  • On the notes
