5-step switch for TRE...S -2/ TR...S-2 5-step transformers

ESS 20

Article number: 0157.0749
Manufacturer: MAICO
5-step switch for TRE...S-2 and TR...S-2 5-step transformers, suited to alternating current fans, maximum... more information

Product data sheet

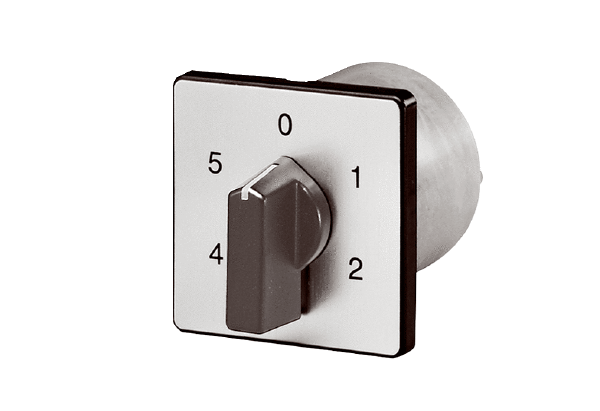

ESS 20 IM0009788.PNG 5-step switch for TRE...S-2 and TR...S-2 5-step transformers, suited to alternating current fans, maximum loading 20 A

Characteristic curve

Dimensioned drawing

Technical data

ESS 20 - Technical data

Article ESS 20
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz/60 Hz
Maximum load 20 A
Degree of protection IP 00
Type of installation Control cabinet
Weight 0,16 kg
Weight including packaging 0,19 kg
Width 72 mm
Height 72 mm
Depth 81 mm
Width with packaging 95 mm
Height with packaging 85 mm
Depth with packaging 85 mm
Ambient temperature 0 °C up to 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799577492
Article number 0157.0749

Accessories of

ESS 20 - Accessories of

is a special accessory of

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
EZF - DN 200 - - - -
Axial ceiling fan EC...A - - -
Axial greenhouse fan Axial EZG greenhouse fans - - -
Axial wall fan EZQ 20/4 E 0083.0484 on request
  • On the notes
Axial wall fan EZS 20/4 E 0094.0071 on request
  • On the notes
Axial wall fan EZQ 20/2 B 0083.0102 on request
  • On the notes
Axial wall fan EZS 20/2 B 0094.0000 on request
  • On the notes
Axial wall fan EZQ 25/4 E 0083.0486 on request
  • On the notes
Axial wall fan EZS 25/4 E 0094.0073 on request
  • On the notes
Axial wall fan EZQ 25/4 D 0083.0487 on request
  • On the notes
Axial wall fan EZS 25/4 D 0094.0072 on request
  • On the notes
Axial wall fan EZQ 25/2 B 0083.0104 on request
  • On the notes
Axial wall fan EZS 25/2 B 0094.0001 on request
  • On the notes
Axial wall fan EZQ 30/6 B 0083.0105 on request
  • On the notes
Axial wall fan EZS 30/6 B 0094.0002 on request
  • On the notes
Axial wall fan EZQ 30/4 B 0083.0106 on request
  • On the notes
Axial wall fan EZS 30/4 B 0094.0003 on request
  • On the notes
Axial wall fan EZQ 30/2 B 0083.0107 on request
  • On the notes
Axial wall fan EZS 30/2 B 0094.0004 on request
  • On the notes
Axial wall fan EZQ 35/6 B 0083.0108 on request
  • On the notes
Axial wall fan EZS 35/6 B 0094.0005 on request
  • On the notes
Axial wall fan EZQ 35/4 B 0083.0114 on request
  • On the notes
Axial wall fan EZS 35/4 B 0094.0007 on request
  • On the notes
Axial wall fan EZQ 40/6 B 0083.0110 on request
  • On the notes
Axial wall fan EZS 40/6 B 0094.0006 on request
  • On the notes
Axial wall fan EZQ 40/4 B 0083.0115 on request
  • On the notes
Axial wall fan EZS 40/4 B 0094.0009 on request
  • On the notes
Axial wall fan EZQ 50/8 B 0083.0112 on request
  • On the notes
Axial wall fan EZS 50/8 B 0094.0010 on request
  • On the notes
Axial wall fan EZQ 50/6 B 0083.0113 on request
  • On the notes
Axial wall fan EZS 50/6 B 0094.0011 on request
  • On the notes
EZF 25/4 D 0085.0487 on request
  • On the notes
EZF 25/4 E 0085.0486 on request
  • On the notes
EZF 30/6 B 0085.0053 on request
  • On the notes
EZF 30/4 B 0085.0054 on request
  • On the notes
EZF 35/6 B 0085.0055 on request
  • On the notes
EZF 35/4 B 0085.0056 on request
  • On the notes
EZF 40/6 B 0085.0057 on request
  • On the notes
EZF 40/4 B 0085.0058 on request
  • On the notes
EZF 50/8 B 0085.0061 on request
  • On the notes
Axial duct fan EZR 20/2 B 0086.0000 on request
  • On the notes
Axial duct fan EZR 25/4 D 0086.0487 on request
  • On the notes
Axial duct fan EZR 25/2 B 0086.0002 on request
  • On the notes
Axial duct fan EZR 30/6 B 0086.0003 on request
  • On the notes
Axial duct fan EZR 30/4 B 0086.0004 on request
  • On the notes
Axial duct fan EZR 30/2 B 0086.0005 on request
  • On the notes
Axial duct fan EZR 35/6 B 0086.0006 on request
  • On the notes
Axial duct fan EZR 35/4 B 0086.0007 on request
  • On the notes
Axial duct fan EZR 40/6 B 0086.0008 on request
  • On the notes
Axial duct fan EZR 40/4 B 0086.0009 on request
  • On the notes
Axial duct fan EZR 50/8 B 0086.0012 on request
  • On the notes
Axial duct fan EZR 50/6 B 0086.0013 on request
  • On the notes
Axial roof fan EZD 25/4 D 0087.0487 on request
  • On the notes
Axial roof fan EZD 25/4 E 0087.0486 on request
  • On the notes
Axial roof fan EZD 25/2 B 0087.0202 on request
  • On the notes
Axial roof fan EZD 30/6 B 0087.0203 on request
  • On the notes
Axial roof fan EZD 30/4 B 0087.0204 on request
  • On the notes
Axial roof fan EZD 30/2 B 0087.0205 on request
  • On the notes
Axial roof fan EZD 35/4 B 0087.0207 on request
  • On the notes
Axial roof fan EZD 40/4 B 0087.0209 on request
  • On the notes
Axial roof fan EZD 50/6 B 0087.0211 on request
  • On the notes
Semi-centrifugal duct fan ERM Semi-centrifugal duct fans - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box - - -
Sound-insulated ventilation box ESR-2 sound-insulated ventilation box, other art. no. - - -
Axial duct fan EZL 25... - - -
Axial duct fan EZR 45/4 B 0086.0011 on request
  • On the notes
ECO axial ceiling and wall fan - - - -
Axial duct fan EZL 30... - - -
Sound-insulated ventilation box Exhaust air - - -
Axial wall-mounted fan EN 20 0081.0307 on request
  • On the notes
Axial wall-mounted fan ENR 20 0081.0316 on request
  • On the notes
Axial wall-mounted fan EN 25 0081.0308 on request
  • On the notes
Axial wall-mounted fan ENR 25 0081.0317 on request
  • On the notes
Axial wall-mounted fan EN 31 0081.0309 on request
  • On the notes
Axial wall-mounted fan ENR 31 0081.0318 on request
  • On the notes
Axial window fan EV 31 0080.0820 on request
  • On the notes
Axial window fan EVR 31 0080.0821 on request
  • On the notes
Axial wall fan EZQ 45/4 B 0083.0101 on request
  • On the notes
Sound-insulated ventilation box EKR 20-2 0080.0882 on request
  • On the notes
Sound-insulated ventilation box EKR 25-2 0080.0883 on request
  • On the notes
Sound-insulated ventilation box EKR 31-2 0080.0884 on request
  • On the notes
Sound-insulated ventilation box EKR 35-2 0080.0885 on request
  • On the notes
Diagonal fan EDR 25 0080.0656 on request
  • On the notes
Diagonal fan EDR 31 0080.0657 on request
  • On the notes
Diagonal fan EDR 35 0080.0658 on request
  • On the notes
Diagonal fan EDR 40 0080.0660 on request
  • On the notes
Diagonal fan EDR 45 0080.0661 on request
  • On the notes
Diagonal fan EDR 50 0080.0662 on request
  • On the notes
Channel fan EPK 22/6 B No longer available for delivery 0086.0650 on request
  • On the notes
Channel fan EPK 22/4 B No longer available for delivery 0086.0651 on request
  • On the notes
Channel fan EPK 25/6 B No longer available for delivery 0086.0652 on request
  • On the notes
Channel fan EPK 25/4 B No longer available for delivery 0086.0653 on request
  • On the notes
Channel fan EPK 31/6 B No longer available for delivery 0086.0656 on request
  • On the notes
Axial wall-mounted fan EZF 50/6 B No longer available for delivery 0085.0062 on request
  • On the notes
Centrifugal roof fan ERD 25/6 B No longer available for delivery 0087.0003 on request
  • On the notes
Centrifugal roof fan ERD 25/4 B No longer available for delivery 0087.0002 on request
  • On the notes
Centrifugal roof fan ERD 31/6 B No longer available for delivery 0087.0005 on request
  • On the notes
Centrifugal roof fan ERD 31/4 B No longer available for delivery 0087.0004 on request
  • On the notes
Centrifugal roof fan ERD 35/6 B No longer available for delivery 0087.0007 on request
  • On the notes
Centrifugal roof fan ERD 40/6 B No longer available for delivery 0087.0009 on request
  • On the notes
Centrifugal roof fan ERD 18/4 B No longer available for delivery 0087.0000 on request
  • On the notes
Centrifugal roof fan ERD 18/2 B No longer available for delivery 0087.0015 on request
  • On the notes
Centrifugal roof fan ERD 22/4 B No longer available for delivery 0087.0001 on request
  • On the notes
Axial wall-mounted fan EZF 45/6 B No longer available for delivery 0085.0059 on request
  • On the notes
Axial wall-mounted fan EZF 45/4 B No longer available for delivery 0085.0060 on request
  • On the notes
Wall-mounted fan EN 20 No longer available for delivery 0081.0301 on request
  • On the notes
Wall-mounted fan EN 25 No longer available for delivery 0081.0302 on request
  • On the notes
Wall-mounted fan EN 31 No longer available for delivery 0081.0303 on request
  • On the notes
Wall-mounted fan ET 20 No longer available for delivery 0081.0501 on request
  • On the notes
Wall-mounted fan ET 25 No longer available for delivery 0081.0502 on request
  • On the notes
Wall-mounted fan ET 31 No longer available for delivery 0081.0503 on request
  • On the notes
Window fan EV 22 No longer available for delivery 0080.0810 on request
  • On the notes
Window fan EV 26 No longer available for delivery 0080.0815 on request
  • On the notes
Sound-insulated ventilation box ESR 12 S No longer available for delivery 0080.0227 on request
  • On the notes
Sound-insulated ventilation box ESR 16 S No longer available for delivery 0080.0228 on request
  • On the notes
Sound-insulated ventilation box ESR 20 S No longer available for delivery 0080.0229 on request
  • On the notes
Sound-insulated ventilation box ESR 25 S No longer available for delivery 0080.0230 on request
  • On the notes
Sound-insulated ventilation box ESR 31 S No longer available for delivery 0080.0231 on request
  • On the notes
Sound-insulated ventilation box ESR 12-2 S No longer available for delivery 0080.0617 on request
  • On the notes
Sound-insulated ventilation box ESR 16-2 S No longer available for delivery 0080.0618 on request
  • On the notes
Sound-insulated ventilation box ESR 20-2 S No longer available for delivery 0080.0619 on request
  • On the notes
Sound-insulated ventilation box ESR 25-2 S No longer available for delivery 0080.0620 on request
  • On the notes
Sound-insulated ventilation box ESR 31-2 S No longer available for delivery 0080.0621 on request
  • On the notes
Quickbox ESQ 25/4 No longer available for delivery 0080.0027 on request
  • On the notes
Quickbox ESQ 31/4 No longer available for delivery 0080.0028 on request
  • On the notes
Quickbox ESQ 35/4 No longer available for delivery 0080.0029 on request
  • On the notes
Quickbox ESQ 40/4 No longer available for delivery 0080.0030 on request
  • On the notes
Quickbox ESQ 45/4 No longer available for delivery 0080.0031 on request
  • On the notes
Sound-insulated ventilation box EKR 20 No longer available for delivery 0080.0919 on request
  • On the notes
Sound-insulated ventilation box EKR 25 No longer available for delivery 0080.0920 on request
  • On the notes
Sound-insulated ventilation box EKR 31 No longer available for delivery 0080.0921 on request
  • On the notes
Sound-insulated ventilation box EKR 35 No longer available for delivery 0080.0922 on request
  • On the notes
Quickbox ESQ 25/4 K No longer available for delivery 0080.0069 on request
  • On the notes
Quickbox ESQ 31/4 K No longer available for delivery 0080.0070 on request
  • On the notes
Quickbox ESQ 35/4 K No longer available for delivery 0080.0071 on request
  • On the notes
Quickbox ESQ 40/4 K No longer available for delivery 0080.0072 on request
  • On the notes
Quickbox ESQ 45/4 K No longer available for delivery 0080.0073 on request
  • On the notes
Channel fan EPK 28/6 B No longer available for delivery 0086.0654 on request
  • On the notes

Product description

Productdescription

ESS 20

short description

5-step switch for TRE...S-2 and TR...S-2 5-step transformers, suited to alternating current fans, maximum loading 20 A

Product description

  • 5-step switch for TRE...S-2 and TR...S-2 5-step transformers.
  • For front-mounting in the control cabinet.
  • ESS: Accessories for AC fans.
  • DSS: Accessories for three-phase AC fans.

Table of contents

Wiring diagram

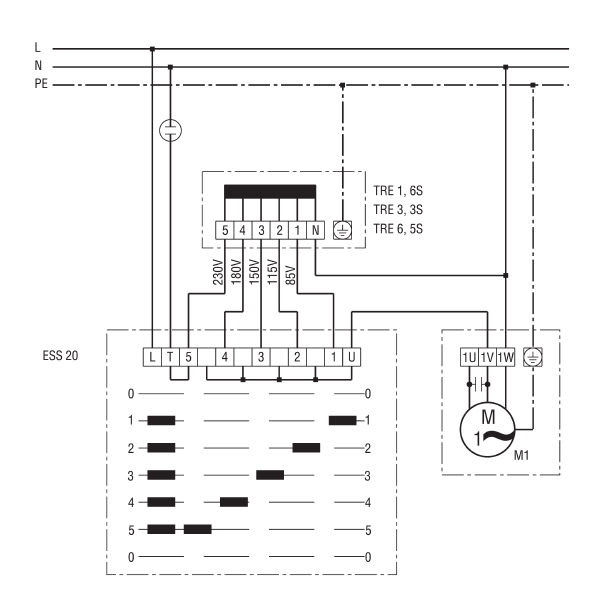

ESS 20 - Wiring diagram

TRE..S-2 - 5-step transformer



Predecessor - successor

Notes
Inquiry
Product comparison
The wish list option allows you to make a note of all the products you are interested in. You can change your wish list as often as you want to. You can change the quantity and item position of the products, go back to the product page, download product data sheets, delete items and mark products as optional. You can save your wish list to your computer and then call it up again at a later time to make more changes, if required. Using the list, you can then download the tender text for all the products you have saved to the list, create an enquiry or compare products.
Assort Product type Name Art. No. PDF Range List price* (EUR) Quantity Optional Total gross amount (EUR)
There are no products on the list
Save wish list on local computer
Load wish list from local computer

On this website, technologies such as cookies and measurements of reach (targeting and tracking) are used (services). This means that personal information such as the IP address and browser information is processed to continuously improve our website as well as to display to you customised content that corresponds to your individual interests. You may of course influence the use of this information through the settings you choose. The settings you have chosen are stored in a necessary selection cookie. With the exception of the selection cookie mentioned above, technically non-essential cookies and measurements of reach are only used if you provide permission in advance by clicking “ACCEPT ALL AND CLOSE”. Details and options for customising your consent can be found under Data protection settings.

Here you can select a variety of different categories of services or cookies. By activating the corresponding “Statistics & analytics” checkbox and confirming “Save settings”, you can give your informed consent to the use of cookies for customisation purposes. At the bottom of the website under “Data protection settings”, you can change or revoke your consent and settings for the individual services at any time with effect for the future.

Necessary cookies are absolutely necessary for the operation of the website. Without these cookies, the website would not function properly.

These cookies and services collect and process data for statistics and analytics and thus enable further improvements of this website for users. Google Analytics and Google Adwords Conversion are used for this purpose. You will find a detailed description of such use in our Privacy Policy.

Save settings ACCEPT ALL AND CLOSE Data protection settings
