Diagonal fan

HDR 16

Discontinued product
Article number: 0080.0539
Manufacturer: MAICO
Diagonal fan for duct installation, DN 160, motor with AC technology, three levels
Application examples: Production site, Storage facility, Day room, Showroom, Workshop
Product data sheet
HDR 16 IM0017273.PNG Diagonal fan for duct installation, DN 160, motor with AC technology, three levels

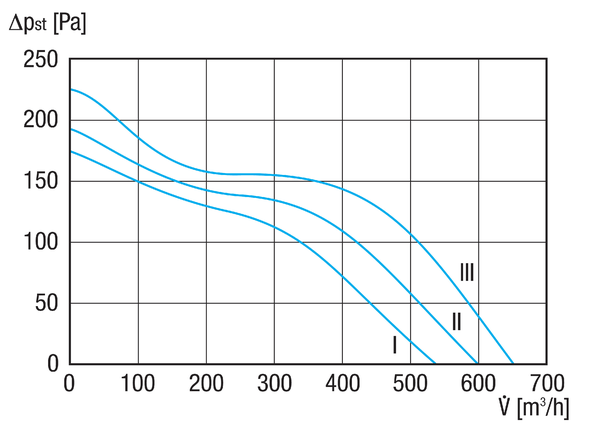

Characteristic curve

HDR 16 - Characteristic curve

Dimensioned drawing

HDR 16 - Dimensioned drawing [mm]

Technical data

HDR 16 - Technical data

Article HDR 16
Air flow volume 684 m³/h
Rotating speed 2.834 1/min
Impeller type diagonal
Speed controllable
Reversing capacity
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Nominal output 55,4 W / in opt. efficiency
Inom 0,22 A / in opt. efficiency
Imax 0,23 A
Degree of protection IP 44
Insulation class B
Installation position vertical / horizontal
Material PP plastic
Housing material Polypropylene
Colour grey
Weight 2,77 kg
Weight including packaging 3,28 kg
Nominal size 160 mm
Width 235 mm
Height 244,5 mm
Depth 295 mm
Width with packaging 255 mm
Height with packaging 245 mm
Depth with packaging 310 mm
Airstream temperature at IMax 50 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799805397
Article number 0080.0539



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, high (dB)

24,4

35,3

55,6

59,1

60

62,9

59,4

50,3

67

LWA5= free inlet sound power level in dB.

Product description

Productdescription

HDR 16

short description

Diagonal fan for duct installation, DN 160, motor with AC technology, three levels

Product description

Special features

  • Highly efficient duct fan, made of high-quality plastic (PP).
  • Suitable for industrial and residential installations.
  • With integrated mounting bracket for quick and easy fan mounting.
  • Powerful diagonal impeller with downstream stator for high output.
  • Modular design with optimised flow technology and acoustics results in very quiet operation.
  • Reduced space requirement due to compact dimensions.
  • For direct installation between ducts, for ventilation or air extraction, depending on the installation position.
  • Connection sockets on the outlet and inlet sides correspond to the prevailing standard duct diameters.
  • Quick and easy inspection and maintenance of the fan by opening the clamps.
  • IP 44 degree of protection.

AC motor

  • Speed controllable with 3 stages, option of controlling speed using phase angle or transformer.
  • Thermal overload protection as a standard feature.
  • Electrical connection via terminal box integrated in the housing
  • Robust motor with humidity protection and ball bearing, maintenance-free.
  • Thermal class 130 (B).

Mounting instructions

  • Can be fitted in any position.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety information

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or free outlet. To do this, fit an optional SGR protective grille.

Table of contents

Wiring diagram

HDR 16 - Wiring diagram

1 = low level

2 = high level

3 = highest level
