Tubular sound absorber
RSR 16/50-1
Manufacturer: MAICO
Flexible tubular sound absorber with lip seal, 50 mm sound absorbing cover, length 1000 mm, DN 160
Application examples: Showroom, Restaurant, Theatre, Production site, Industrial building
Product data sheet
Characteristic curve
Dimensioned drawing

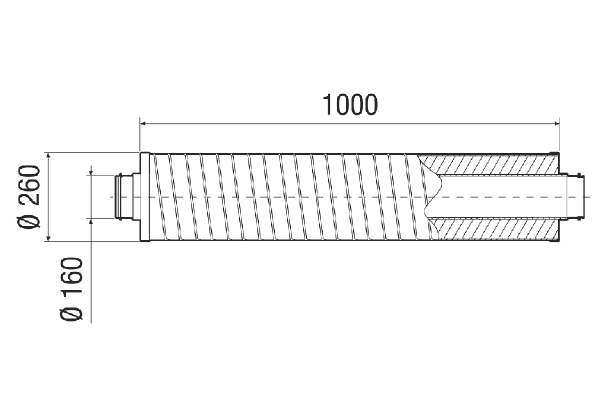

RSR 16/50-1 - Dimensioned drawing [mm]
Technical data
RSR 16/50-1 - Technical data
Accessories of
RSR 16/50-1 - Accessories of
is a special accessory of
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Sound-insulated ventilation box | ESR 16 S No longer available for delivery | 0080.0228 | on request |
is a general accessory of
Product description
Productdescription
RSR 16/50-1
short description
Flexible tubular sound absorber with lip seal, 50 mm sound absorbing cover, length 1000 mm, DN 160Product description
Tubular sound absorber for ventilation systems.
With sound absorbing cover made of synthetic resin-bonded glass fibres.
Non-combustible in accordance with DIN 4102 class A1 (building material classification).
Insertion loss measured in accordance with DIN 45646.
With lip seal.
Temperature resistant up to +70 °C.
RSR...: With 25 mm thick sound absorption cover.
RSR.../50: With 50 mm thick sound absorption cover.
Wiring diagram
RSR 16/50-1 - Wiring diagram
Downloads / Videos
RSR 16/50-1 - Downloads / Videos
Predecessor - successor
RSR 16/50-1 - Predecessor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Tubular sound absorber | RSR 16/50 Discontinued product | 0092.0324 |
