Disk valve, metal
TFZ 12
Disk valve for supply air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, including... more information
Product data sheet

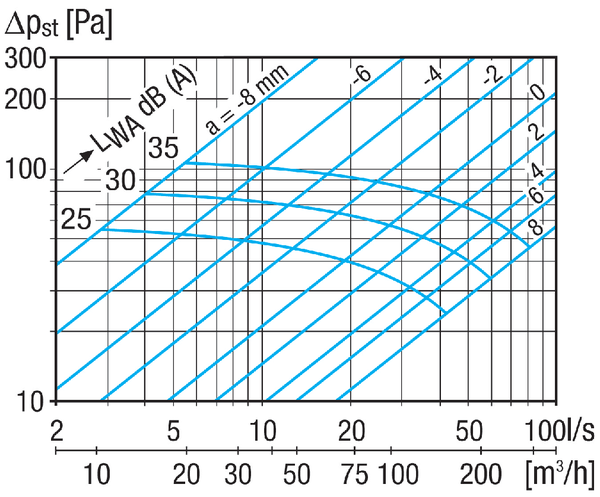

Characteristic curve
Dimensioned drawing

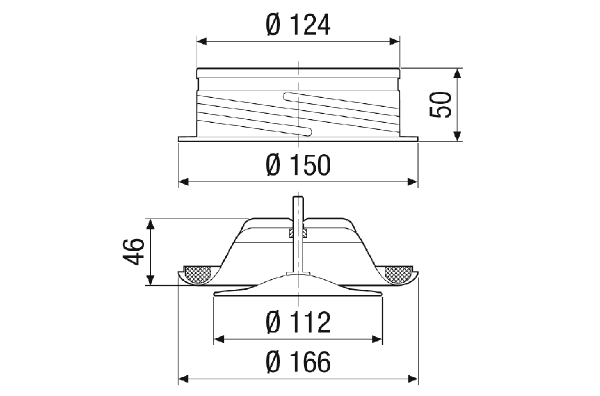

TFZ 12 - Dimensioned drawing [mm]
Technical data
TFZ 12 - Technical data
Accessories / Accessories of
TFZ 12 - Accessories / Accessories of
General accessories
| Product type | Name | Art. No. | Price*(EUR) | Action |
|---|---|---|---|---|
| Ceiling/wall feed-through | DWD 12 New development | 0059.0046 | on request |
is a general accessory of
Product description
Productdescription
TFZ 12
short description
Disk valve for supply air, sheet steel, white, DN 125, for domestic ventilation max. 60 m³/h, including installation frame.Product description
- Disk valve for ventilation.
- Elegant, flat design.
- Continuously variable regulation of the air flow by means of a rotating valve disk.
- With bayonet lock for installation frame.
- Installation frame included in the scope of delivery.
Wiring diagram
TFZ 12 - Wiring diagram
Downloads / Videos
TFZ 12 - Downloads / Videos
Predecessor - successor
TFZ 12 - Predecessor
| Product type | Name | Art. No. | Action |
|---|---|---|---|
| Disk valve, metal | TFZ 12 No longer available for delivery | 0151.0365 |
