Disk valve, metal

TM 12

Article number: 0151.0196
Manufacturer: MAICO
Disk valve for exhaust air, enamelled white steel sheet, with mounting frame, DN 125, for domestic ventilation... more information
TM 12 IM0009749.PNG Disk valve for exhaust air, enamelled white steel sheet, with mounting frame, DN 125, for domestic ventilation max. 60 m³/h

Characteristic curve

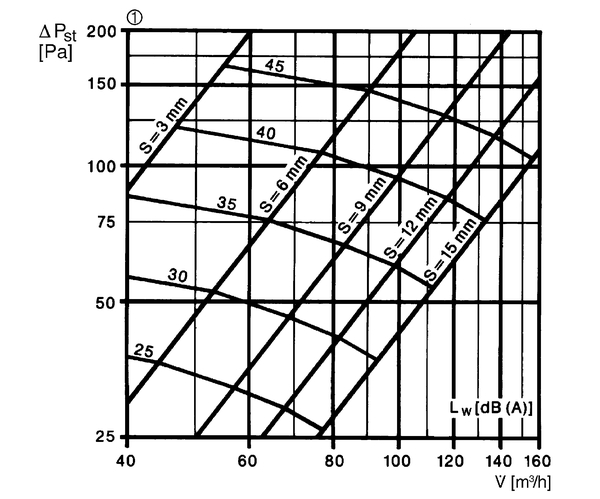

TM 12 - Characteristic curve Pressure difference and acoustic data: TM 12

  1. Valve cone position, S = gap width

Dimensioned drawing

TM 12 - Dimensioned drawing [mm]

A: 162 mm
B: 108 mm
C: 98 mm

Technical data

TM 12 - Technical data

Article TM 12
Air direction Air extraction
Material Sheet steel, stove-enamelled
Colour Pure white, similar to RAL 9010
Weight 0,5 kg
Suitable for nominal size 125 mm
Width 162 mm
Height 162 mm
Depth 98 mm
Packing unit 1 piece
Range C
GTIN (EAN) 4012799511960
Article number 0151.0196

Product description

Productdescription

TM 12

short description

Disk valve for exhaust air, enamelled white steel sheet, with mounting frame, DN 125, for domestic ventilation max. 60 m³/h

Product description

  • Disk valves for air extraction.
  • Linear air flow control via rotatable valve disk.
  • Assembly using installation frames.
  • Mounting frames and fan housings are linked using a bayonet closure.
  • Recommended accessories: FFE grease filter element for use in rooms where the exhaust air contains grease (e.g. kitchens etc.).
